800DPI 19U Vandal Proof Keyboard 100 Keys With Optical Trackball

China Key Technology ( China ) Limited certification
China Key Technology ( China ) Limited certification
Your professionalism and loyalty is unparalleled.We are proud to maintain a partnership with Key technology and we want to express our satisfaction.

—— Pascal LESAGE

Die Geschäftsbeziehung zwischen uns und Key Technologie ist lange gewachsen und wir freuen uns auf weitere gute und erfolgreiche Jahre.

—— Jens Radenbach

I'm Online Chat Now

800DPI 19U Vandal Proof Keyboard 100 Keys With Optical Trackball

800DPI 19U Vandal Proof Keyboard 100 Keys With Optical Trackball
800DPI 19U Vandal Proof Keyboard 100 Keys With Optical Trackball 800DPI 19U Vandal Proof Keyboard 100 Keys With Optical Trackball

Large Image :  800DPI 19U Vandal Proof Keyboard 100 Keys With Optical Trackball

Product Details:
Place of Origin: Shenzhen, China
Brand Name: IKB-MKB
Certification: CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Model Number: K-TEK-A19U-OTB-KP-FN
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: To be quoted
Packaging Details: Each keyboard to one box, several boxes to one carton.
Delivery Time: ASAP Within 2 weeks upon payment confirmed
Payment Terms: Full payment in advance, Western Union, T/T, Paypal
Supply Ability: 3000psc/month
Detailed Product Description
Keys: 100keys Interface: PS2, USB Available
Key Travel: 2.0mm Tracker Ball: 38.1mm (1.5’) Diameter
High Light:

Optical Trackball Vandal Proof Keyboard

,

19U Vandal Proof Keyboard

,

800DPI Industrial Trackball Keyboard

DESCRIPTION:

100 Keys Compact Format IP65 static Vandal Proof 19U Stainless Steel industrial Keyboard with full keyboard functionalities, with IP68 dynamic rated washable 38.0mm stainless steel optical trackball module with 800 DPI resolutions for fast and  accurate cursor position with extremely smooth operation without any noise, function keys F1, F2..F10, F11, F12 are on the top  line for easy operation, with independent numeric keypad, industrial PCB with carbon-on-gold key switch technology with long  stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise. 3 mouse buttons designed  for right & left clicking and scrolling up and down with ball rolling, stainless steel top plate with mounting holes on both ends for  fixing keyboards. IP68 dynamic module with direct drain pipe is optional, no rust risk and anti-salt spray corrosion.

DIMENSIONS: 482.6mm x 133.3mm (top panel)
800DPI 19U Vandal Proof Keyboard 100 Keys With Optical Trackball 0

MECHANICAL DATA
ELECTRICAL DATA
Actuator/keys: 100keys, super quality SUS304 brushed stainless steel

Key top style: Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available

Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 100.0mm for space bar.

Key travel: 2.0mm

Actuation Force: 0.6 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 1.2 N+/-0.1N for key 14.0mm x 28.0mm
(pressure point)

Switch life: more than 5 million of operations.

Front Plate: 1.5mm thickness super quality brushed stainless steel

Back Plate:3.0mm thickness brushed & oxidized aluminium

Tracker ball: 38.1mm (1.5’) diameter, IP68 dynamic washable 800DPI optical trackball module

G.W.: 2.50KGs
Supply Voltage: +5V DC +/-5%
Current Rating: 300mA
EMC Standard: EN 55032:2015, EN 55035:2017

Lifespan > 5 years
Switch Contact Material: Gold-on-Gold key switch technology PCB.
Interface: PS2, USB available.
OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

ENVIRONMENTAL ADAPTABILITY
Operating temperature:-20 to +60
Storage temperature: -30 to +70
Operating RH: 30-90%
Atmospheric pressure: 60-106Kpa.
Saline mist: 96 hours, IEC 60512-6
Damp heat test at + 40
: 21 days, IEC 60512-6
Dry heat test at + 85
: 10 days, IEC 60512-6
RELIABILITY
RoHS Compliant, CE
Protection Level: IP65 (front panel)
Vandal resistant IK08
Key Lifespan > 5 million actuations
MTBF >20000H
MTTR <30min

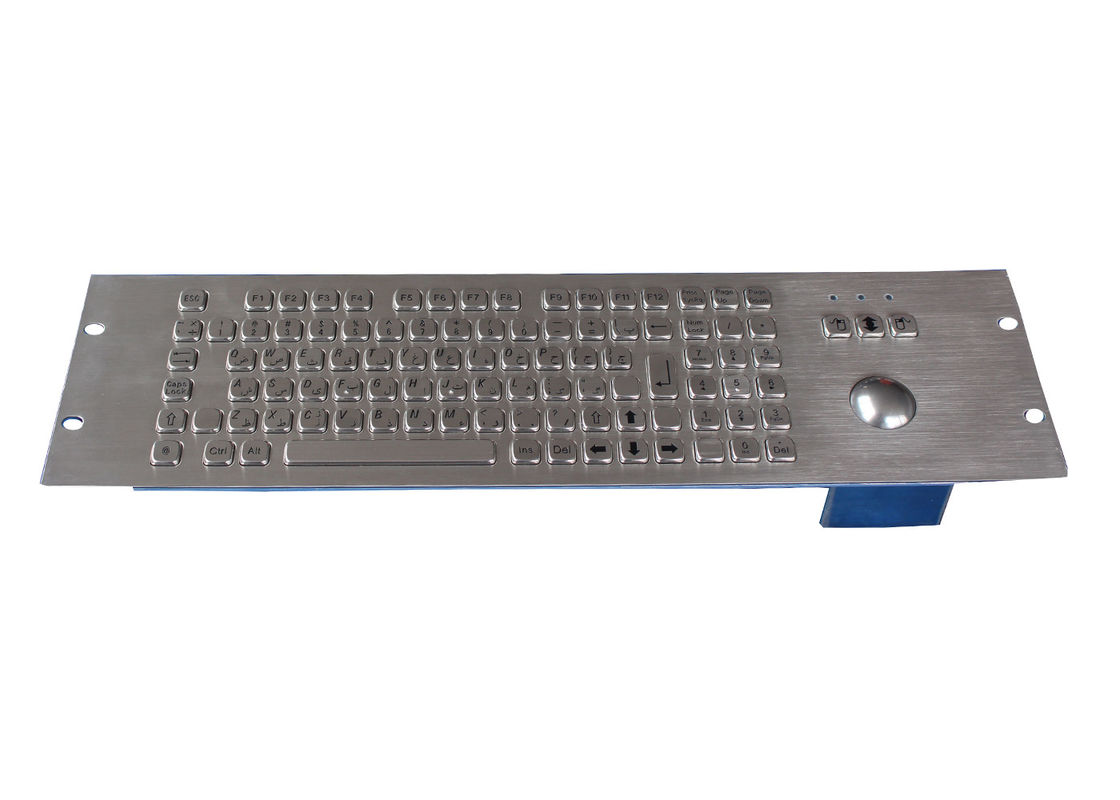

800DPI 19U Vandal Proof Keyboard 100 Keys With Optical Trackball 1

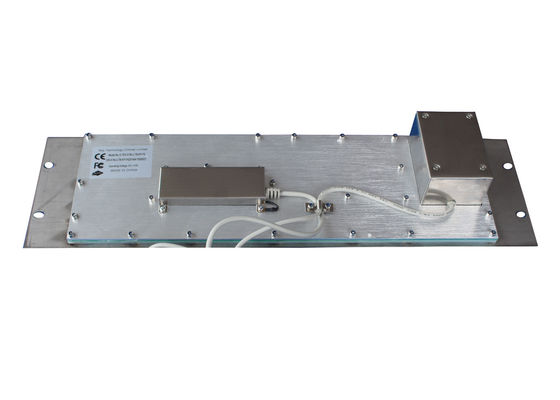

800DPI 19U Vandal Proof Keyboard 100 Keys With Optical Trackball 2
