Military Grade USB Rubber EMC Keyboard Wide Temperature Rugged 400DPI

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  Military Grade USB Rubber EMC Keyboard Wide Temperature Rugged 400DPI

Product Details:
Place of Origin: Shenzhen,China
Brand Name: IKB-MKB
Certification: CE, FCC, ROHS
Model Number: K-TEK-M284-FN-BL-NV-151B+TP6549-002
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Each keyboard to one box,several boxes to one carton.
Delivery Time: ASAP Within 2 weeks upon payment confirmed
Payment Terms: Full payment in advance. or 50% deposit in advance, the rest 50% to be paid before delivery.
Supply Ability: 3000pcs/month
Detailed Product Description
Application: Military Connection: USB
Material: Rubber Key: 89 Keys
Backlight: Red Or White Name: EMC Keyboard
High Light:

USB Rubber EMC Keyboard

,

Military Grade EMC Keyboard

,

400DPI Rugged Military Keyboard



DIMENSIONS: Keyboard: 284.0mm*109.0mm (L x W )    Touchpad: 68.0mm * 49.0mm (L x W)

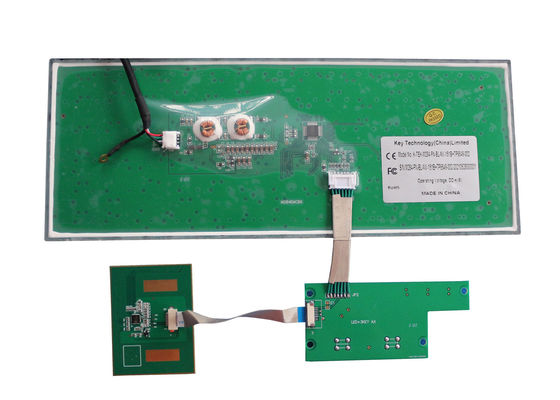

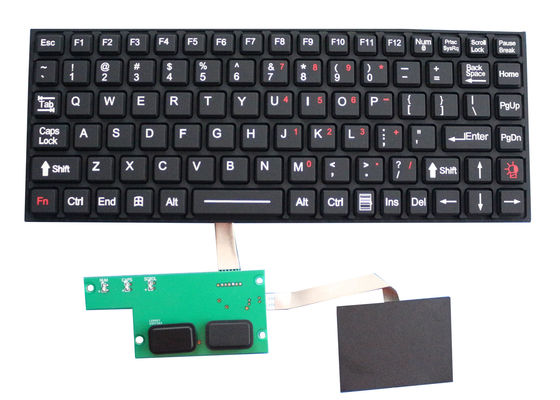

DESCRIPTION: 89 keys IP67 sealed & ruggedized silicone rubber military keyboard with a separate domestic military-grade wide temperature touchpad with 400DPI resolutions for fast cursor position, as well as independent left and right mouse buttons with 3 LEDs, 12 function keys on top line for easy operation, military PCB with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under harsh environment, top panel mount solution, adjustable white/red backlight included. Domestic brand for whole keyboard and touchpad, locally produced, with USB interface. Military level, designed to Meet MIL-STD-461G with EMC and MIL-STD-810F (wide temperature, shock, vibration, humidity etc.)



Special Features:

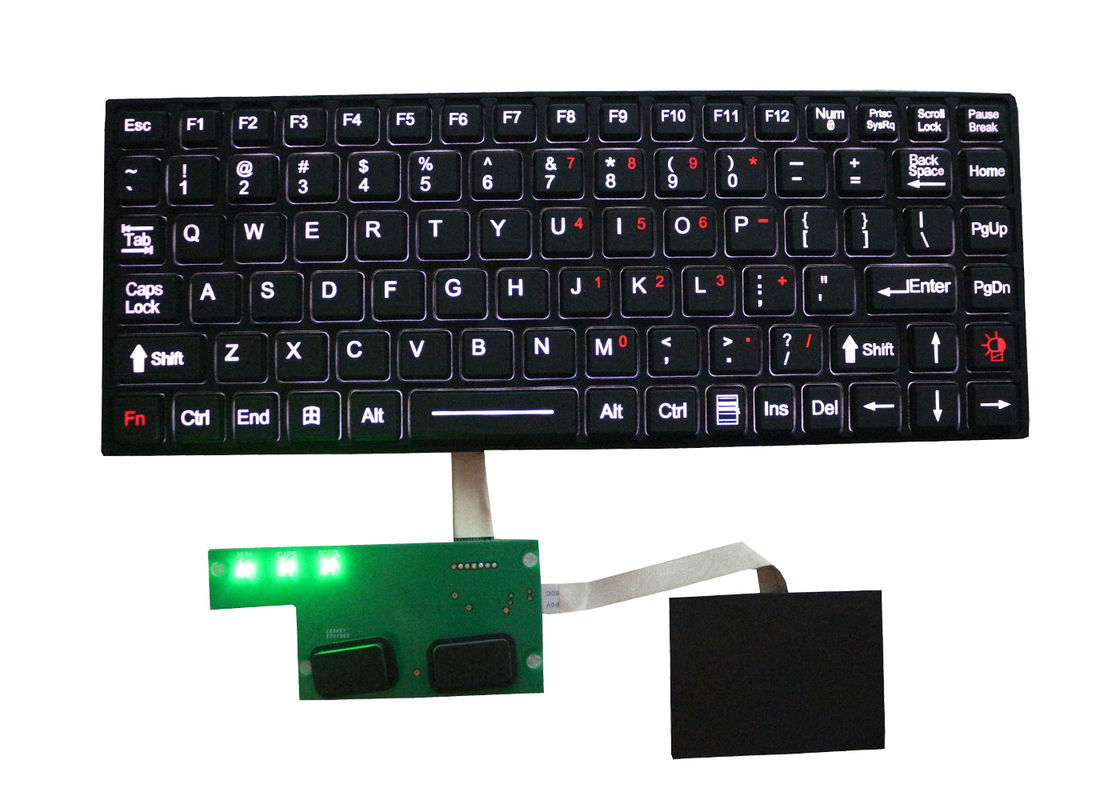

1: keyboard with NVIS-compliant adjustable backlighting, while NVIS backlighting makes this keyboard ideal for applications
2: where night vision goggles are necessary. (Red or white backlight optional)
3: Keyboard provides full-size versatility in a rugged, compact design, rugged construction for reliable functionality
4: The keyboard lacks the crevices found between the keys of a regular keyboard, which is protected against dust, dirt, grease and corrosive liquids, which means it can withstand directed hose water, disinfectants, environmental contaminants and heavy industrial use.
5: Special durable-coating for excellent mechanical and chemical resistance
6: With firm tactile key feel, key travel 1.5mm key travel.
7: Ease of customizing with multiple languages, to accommodate foreign or custom variants.
8: USB connection cables that plug directly into computer like keyboard operations.



ENVIRONMENTAL ADAPTABILITY

Key 89 keys
Key top style Protuberant rectangular keys with tactile feeling
Touchpad cover 1.3mm thickness PCB
X/Y position sensing resolution 40 counts/mm
X/Y position reporting Relative
Output USB
Tracking speed Maximum 1,016 m/sec
Power supply voltage 5 VDC ± 0.25V
Current rating (active mode)
Lifespan > 5 years
Cable Length Standard 2.0m, customized length available.
G.W. 0.30KGs


mechanical drawing



Military Grade USB Rubber EMC Keyboard Wide Temperature Rugged 400DPI 0

MECHANICAL DATA:

Operating temperature
-40℃ to +60℃
Storage temperature
-50℃ to +70℃
Saline mist:
96h, IEC60512-6
Damp heat test at +40℃
21 days, IEC 60512-6
Dry heat test at +85℃:
10 days, IEC 60512-6
Humidity
3%-95%
Atmospheric pressure
60-106Kpa

RoHS , CE, FCC, ESD, EMC
Protection Level
IP67
Key Lifespan
>5 million actuations
MTBF
>20000H
MTTR
<30min



Meet MIL-STD-461G with EMC (Electro Magnetic Compatibility) etc.:
CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads
CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads
CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads
CS106 Conducted Susceptibility, Transients, Power Leads
CS112 Electrostatic Discharge Susceptibility
CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection
CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation
CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads
RE101 25Hz -100kHz Radiated Emissions, Magnetic Field
RE102 10kHz - 18GHz Radiated Emissions, Electric Field
RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field
RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field
MIL-STD-810F (wide temperature, shock, vibration, humidity).



Military Grade USB Rubber EMC Keyboard Wide Temperature Rugged 400DPI 1

Military Grade USB Rubber EMC Keyboard Wide Temperature Rugged 400DPI 2

Military Grade USB Rubber EMC Keyboard Wide Temperature Rugged 400DPI 3
