Product Details:
|
| Keys: | 12 Keys | Material: | Metal Stainless Steel |
|---|---|---|---|
| Key Travel: | 0.45mm | G.W.: | 0.8KGs |
| Key Life: | More Than 1 Million Of Operations | Switching Material: | Gold-on-Gold |
| High Light: | Stroke 0.45mm Desktop Backlit Keypad,IP68 Dynamic Desktop Backlit Keypad,Scratch Proof Waterproof Numeric Keypad |
||
DESCRIPTION:
12 keys compact format IP68 dynamic waterproof and vandal proof and Stainless Steel numeric desktop backlight keypad with industrial metal dome PCB electronics controller shielded & protected by stainless steel housing, industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, with mounting holes on the back Stainless steel housing for wall mounting(optional). desktop version, Industrial Backlight (red/blue/white/green optional) included.
Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, direct drain pipe is optional, no rust risk and anti-salt spray corrosion.
Dimensions: 100.0mm x 120.0mm (top panel)
ELECTRICAL DATA:
| Supply Voltage | +5V DC +/-5% |
| Current Rating | appr. 20mA |
| EMC Standard | It is compliance with the council IEC 61000-4-2:2008；IEC 61000-4-3:2006+AI:2007+A2:2010；IEC 61000-4-4:2004 |
| EMI | EN 55022: 2010 |
| EMS | EN 55024:2010 |
| Lifespan | > 5 years |
| Switch Contact Material | Gold-on-Gold key switch technology PCB |
| Interface | dot matrix |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed) |

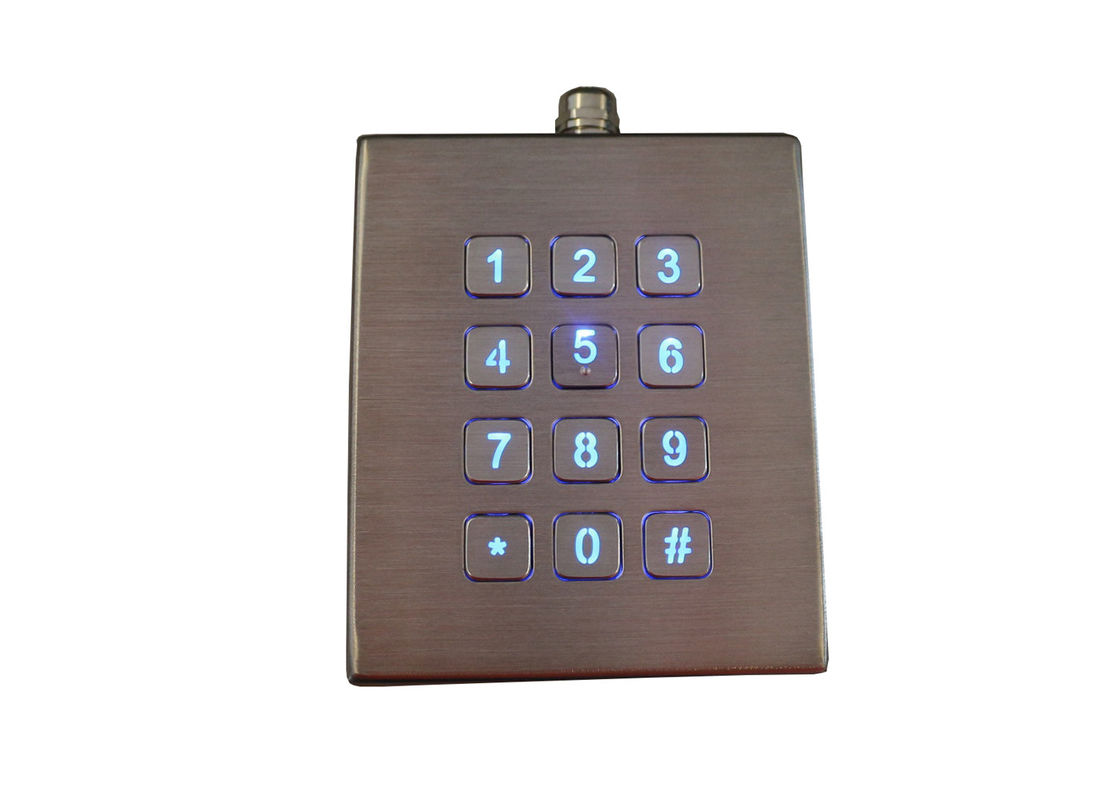

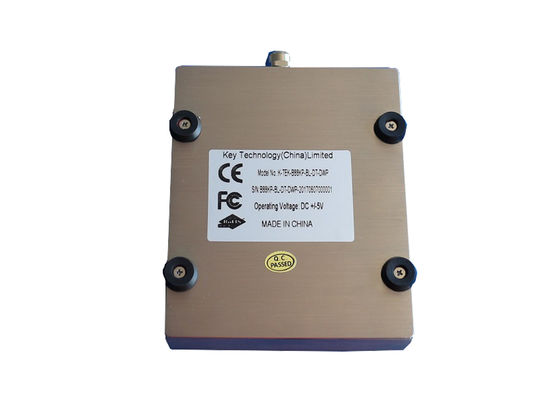

Actual photos:
