Product Details:
|
| Application: | Military | Connection: | USB |
|---|---|---|---|
| Material: | Rubber | Key: | 87 Keys |
| Backlight: | White | G.W.: | 0.80KGs |
| High Light: | EMC Military Keyboard,Ruggedized Silicone Rubber Military Keyboard,87 Keys Silicone Rubber Keypad |
||
DIMENSIONS: Keyboard: 284.0mm*109.0mm (L x W )
DESCRIPTION:

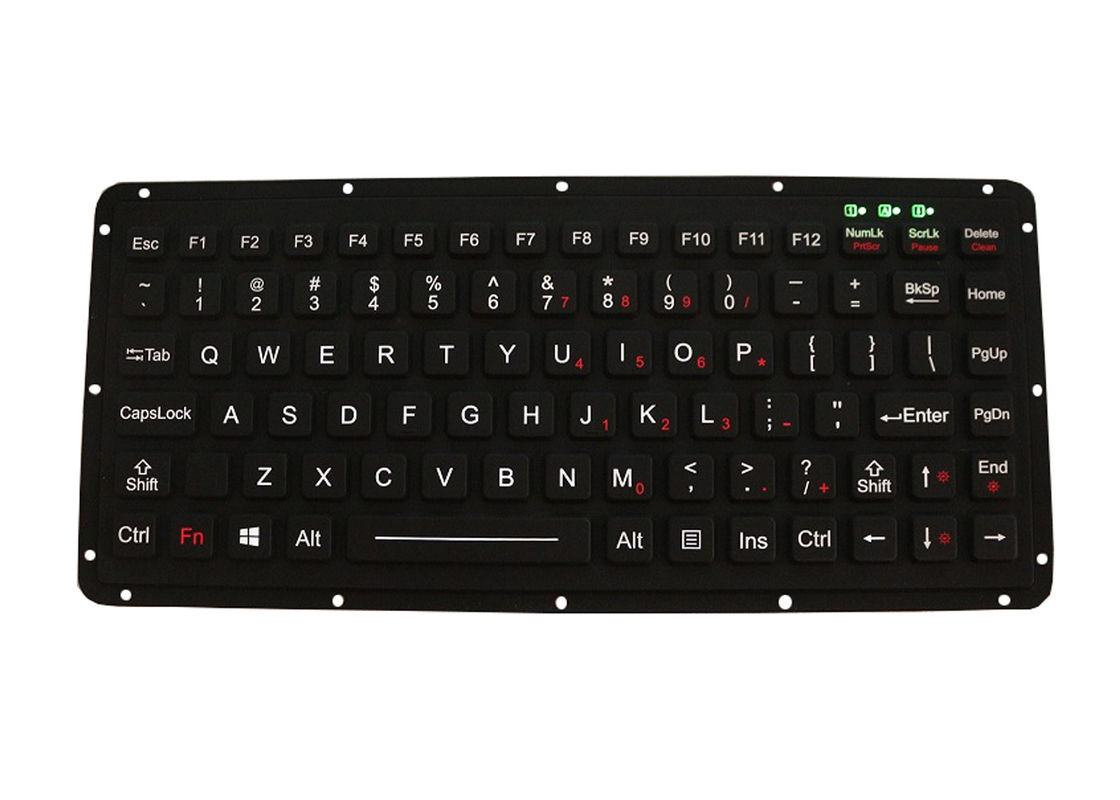

keyboard with white adjustable backlighting, while NVIS backlighting makes this keyboard ideal for applications where night vision goggles are necessary.
Keyboard provides full-size versatility in a rugged, compact design, rugged construction for reliable functionality
The keyboard lacks the crevices found between the keys of a regular keyboard, which is protected against dust, dirt, grease and corrosive liquids, which means it can withstand directed hose water, disinfectants, environmental contaminants and heavy industrial use.
Special durable-coating for excellent mechanical and chemical resistance
FN + Clean key
-Prevents data from being sent while the keyboard is wiped down, allowing user to clean at any interval with minimal downtime
-User is notified of ‘lock down mode’ by brightly lit FN+CLEAN KEY
With firm tactile key feel, key travel 1.50mm key travel.
Actuation Force: 1.2N±0.1N
Ease of customizing with multiple languages, to accommodate foreign or custom variants.
USB connection cables that plug directly into computer like keyboard operations.

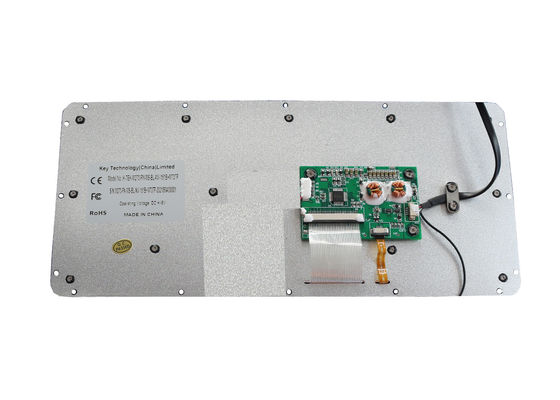

Enclosure: industrial silicone, aluminum back plate
Key life: 5 million
MECHANICAL DATA
| Key | 87 keys |
| Key top style | Protuberant rectangular keys with tactile feeling |
|
Key Size
|
12.0mm X 13.0mm for normal keys
|
|
Dimensions
|
Keyboard: 270.0mm*113.0mm (L x W )
|
| X/Y position reporting | Relative |
| Output |
USB
|
| Tracking speed | Maximum 1,016 m/sec |
| Power supply voltage | 5 VDC ± 0.25V |
| Current rating (active mode) | |
| Lifespan | > 5 years |
| Cable Length |
Standard 0.8m / 1.0m |
| G.W. | 0.80KGs |
MECHANICAL DATA:
|
Operating temperature
|
-40℃ to +80℃
|
|
Storage temperature
|
-45℃ to +85℃
|
|
Saline mist:
|
96h, IEC60512-6
|
|
Damp heat test at +40℃
|
21 days, IEC 60512-6
|
|
Dry heat test at +85℃:
|
10 days, IEC 60512-6
|
|
Humidity
|
100%
|
|
Atmospheric pressure
|
60-106Kpa
|
|
RoHS , CE, FCC, ESD, EMC
|
|
|
Protection Level
|
IP67 |
|
Key Lifespan
|
>5 million actuations
|
|
MTBF
|
>20000H
|
|
MTTR
|
<30min
|
