IK09 ESD Metal Numeric Keypad SUS304 Brushed For Bank Kiosks

IK09 ESD Metal Numeric Keypad SUS304 Brushed For Bank Kiosks
IK09 ESD Metal Numeric Keypad SUS304 Brushed For Bank Kiosks IK09 ESD Metal Numeric Keypad SUS304 Brushed For Bank Kiosks

Large Image :  IK09 ESD Metal Numeric Keypad SUS304 Brushed For Bank Kiosks

Product Details:
Place of Origin: Shenzhen, China
Brand Name: IKB-MKB
Certification: CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Model Number: K-TEK-B48-12-KP-AC-DWP
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: To be quoted
Packaging Details: Each keyboard to one box, several boxes to one carton.
Delivery Time: ASAP Within 2 weeks upon payment confirmed
Payment Terms: Full payment in advance, Western Union, T/T, Paypal
Supply Ability: 3000psc/month

IK09 ESD Metal Numeric Keypad SUS304 Brushed For Bank Kiosks

Description
Keys: 12 Keys Interface: Dot Matrix
Material: Metal Stainless Steel Key Travel: 0.45mm
Key Size: 10.0mm X 10.0mm For Normal Keys Dimensions: 48.0mm × 60.0mm (front Panel)
High Light:

ESD Metal Numeric Keypad

,

IK09 Metal Numeric Keypad

,

SUS304 Brushed Dot Matrix Keypad

DESCRIPTION:

12 keys compact format IP67 washable vandal proof stainless steel industrial Compact Format Numeric keypad with dot matrix circuit with socket on the back panel of PCB for connecting electronics controller, industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, with rear stainless steel plate with mounting holes and water-tight gasket for easy mounting and tightening to enclosure or panel. Industrial Backlight optional (red/blue/white/green optional).Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, direct drain pipe is optional, no rust risk and anti-salt spray corrosion.

ENVIRONMENTAL ADAPTABILITY
Operating temperature:-20oC to +60oC
Storage temperature: -30oC to +70oC
Operating RH: 30-90%
Atmospheric pressure: 60-106Kpa.
Saline mist: 96 hours, IEC 60512-6
Damp heat test at + 40oC: 21 days, IEC 60512-6
Dry heat test at + 85oC: 10 days, IEC 60512-6

RELIABILITY
RoHS Compliant, CE and FCC, ESD
Protection Level: IP67(front panel)
Vandal resistant IK09
Key Lifespan > 1 million actuation
MTBF >20000H
MTTR <30min


MECHANICAL DATA:

Front plate 1.5mm thickness super quality brushed stainless steel
Back plate Super quality SUS304 stainless steel
Actuator/Keys 12keys, 1.50mm thickness super quality SUS304 brushed stainless steel flat key
Key top style protuberant rectangular keys, with laser engraved and etched legends and raised braille dots available.
Key size 10.0mm x 10.0mm for normal keys
Switching material Gold-on-Gold key switch technology PCB
Actuation Force 2.0N+/-0.1N for key 10.0mm x 10.0mm (pressure point)
Key Travel 0.45mm
Switch life more than 1 million of operations
Dimensions 48.0mm x 60.0mm (L x W )
G.W. 0.60KGs

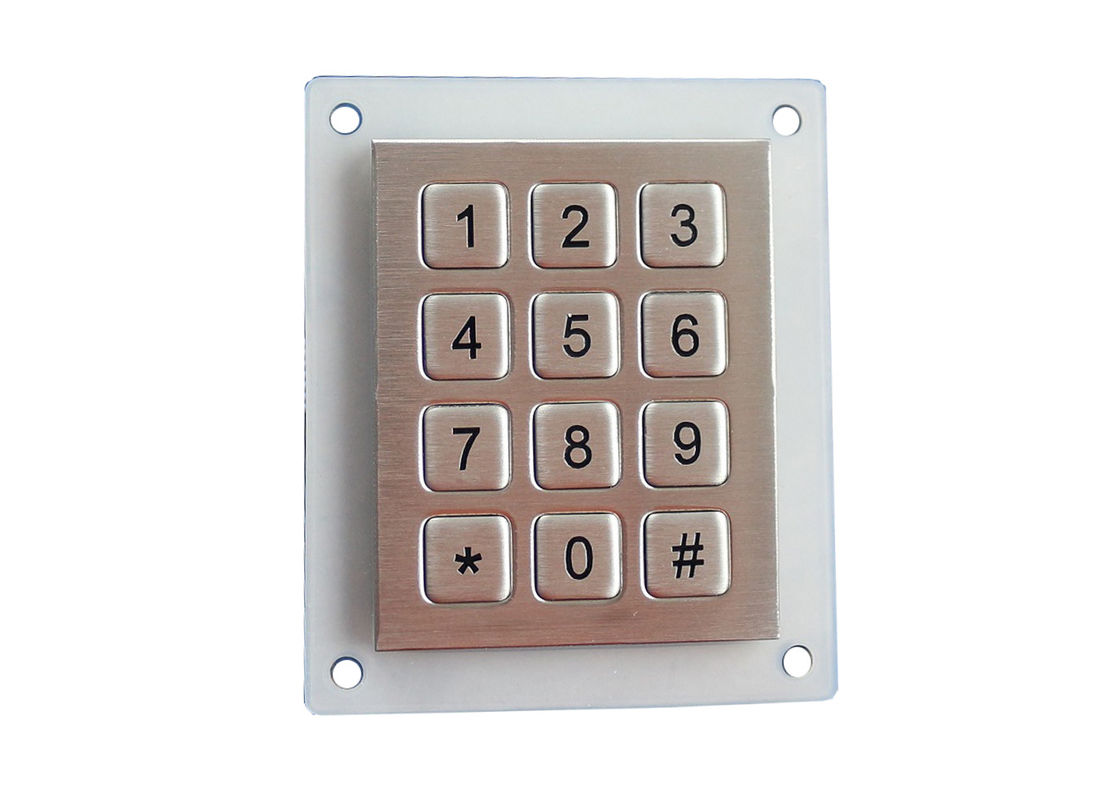

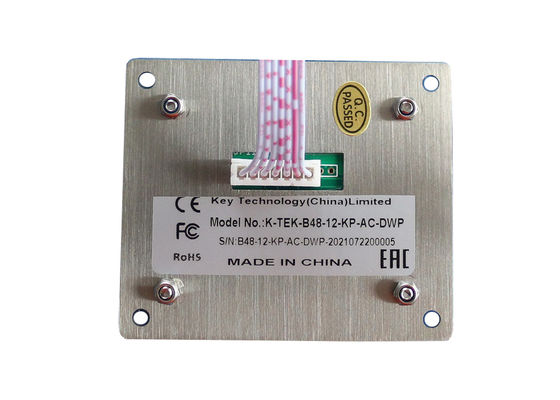

Actual photos:

IK09 ESD Metal Numeric Keypad SUS304 Brushed For Bank Kiosks 0

IK09 ESD Metal Numeric Keypad SUS304 Brushed For Bank Kiosks 1
