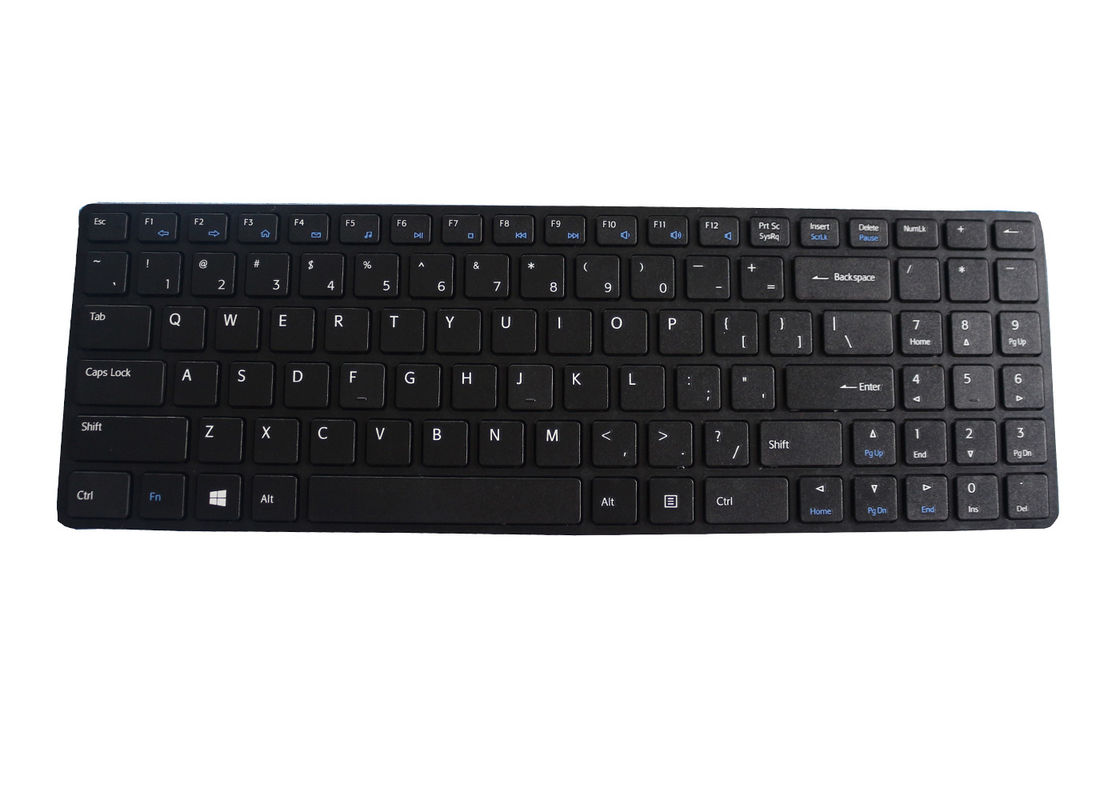

DESCRIPTION: 98 keys IP54 static sealed & ruggedized industrial ultra thin keyboard with 12 function keys on top

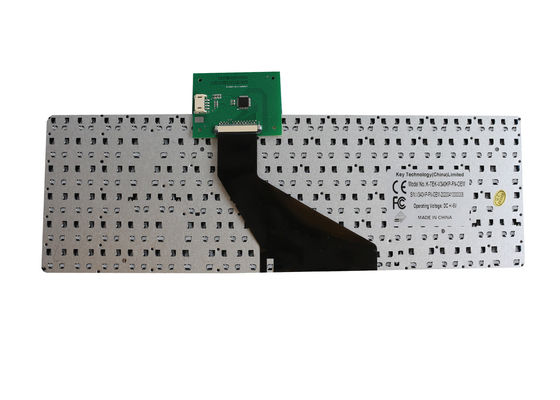

line for easy operation, and numeric keypad on the right side, matrix output or with industrial carbon-on-gold PCB
with USB port optional, industrial level module with Scissors switch technology with key stroke (1.2mm) with
extremely good tactile feeling for fast and accurate data input without any noise, panel mounted solution.
APPLICATIONS:
This keyboard provides full-size versatility in a rugged, compact design with the embedded convenience. This
keyboard is ideal for use in environments ranging from manufacturing to material handling to military settings.
MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
MILITARY: Military laptop, Army, Navy, Air force
INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing
environments, warehouses
OTHER INDUSTRIES
Main Features:
1. This keyboard is made of ABS material with scissors switch technology.
2. It has a good tactile feeling for fast and accurate data input without noise.
3. The layout can be customized to adapt to different national languages.
4. USB connection. Directly plug into computer.
5. Ultra thin ruggedized keyboard with 12 function keys on top line for easy operation.
MECHANICAL DATA:
Key: 98 keys
Output: matrix or USB
Power supply voltage: 5 VDC ± 0.25V
Current rating (active mode): 17mA
Key Size: 15mm x 15mm for normal keys, 15mm x 10mm for top line FN keys
G.W.: 0.40KGs
Dimensions: 340.0mm x 111.0mm (L X W)
ELECTRICAL DATA:
Supply Voltage: +5V DC +/-5%
Current Rating: 50mA (non-backlight)
EMC Standard: EN 55032:2015, EN 55035:2017
Lifespan> 5 years
Switch Contact Material: Scissors switch technology/carbon-on-gold key switch
OS: All Windows, standard Linux, Unix, Mac OSX, Vxworks, AndroidENVIRONMENTAL ADAPTABILITY
Operating temperature: -20℃to +60℃
Storage temperature: :-30℃to +80℃
Operating RH: 100%
Atmospheric pressure: 60-106Kpa
RELIABILITY:
RoHS , CE, FCC, ESD
Protection Level: IP54
Key Lifespan >5 million actuations
MTBF >20000H
MTTR <30min
