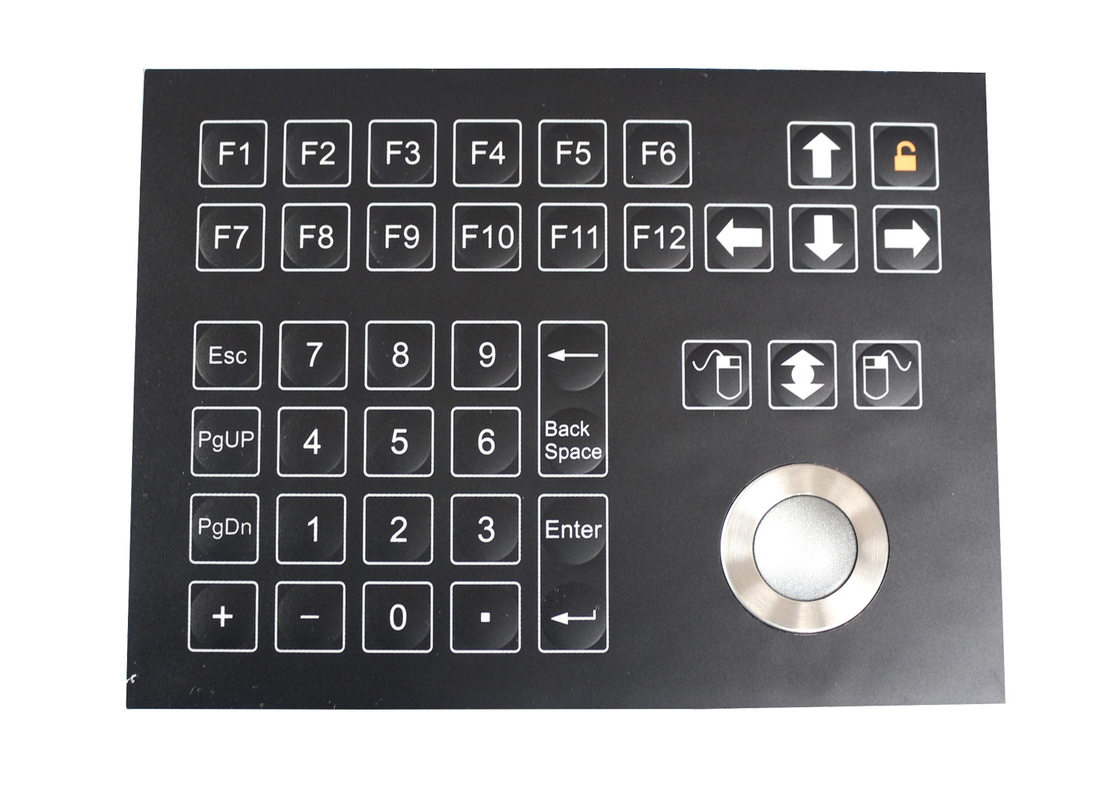

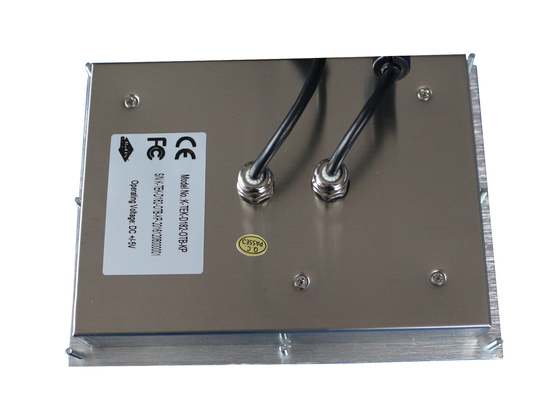

Omron Switch Industrial Membrane Keypad IP67 800DPI Dynamic Optical Trackball

Omron Switch Industrial Membrane Keypad IP67 800DPI Dynamic Optical Trackball
Omron Switch Industrial Membrane Keypad IP67 800DPI Dynamic Optical Trackball Omron Switch Industrial Membrane Keypad IP67 800DPI Dynamic Optical Trackball

Large Image :  Omron Switch Industrial Membrane Keypad IP67 800DPI Dynamic Optical Trackball

Product Details:
Place of Origin: Shenzhen, China
Brand Name: IKB-MKB
Certification: CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Model Number: K-TEK-D182-OTB-KP-FN-SW
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: To be quoted
Packaging Details: Each keyboard to one box, several boxes to one carton.
Delivery Time: ASAP Within 2 weeks upon payment confirmed
Payment Terms: Full payment in advance, Western Union, T/T, Paypal
Supply Ability: 3000psc/month
Detailed Product Description
Material: Membrane Keys: 38
Trackball: 25.0mm Optical Trackball Dimensions:: 182.0 X 135.0mm (top Panel)
Key Switch Technology: OMRON Switch Mounting: Front Panel Mounting
Protection Level: IP67(front Panel)
High Light:

Omron Switch Industrial Membrane Keypad

,

800DPI Dynamic Industrial Membrane Keypad

,

Optical Trackball Backlit Membrane Keyboard

Description:

38 keys compact format IP67 dynamic rated membrane industrial keypad, with integrated numeric keypad and function keys on the upper line, IP68 washable 25.0mm optical trackball module with 800DPI resolutions for fast and accurate cursor position, with 3 mouse buttons for left and right and scrolling function. 2.0mm thickness industrial metal dome PCB with OMRON switch technology key switch technology with short stroke 0.45mm with extremely good tactile feeling for reliable data input, surface mounted extremely flush with anti-microbial, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments, ruggedized and backed with 3.0mm alumium plate with sand

blasting & oxygenation treatment, with top panel mounted solution.

MECHANICAL DATA:
Number of Keys: 38
Key switch Technology: OMRON switch technology with short stroke 0.45 mm for stable and accurate data input.
Actuation Force: 1.4 N+/-0.1 N for key 11.0 mm x 11.0 mm (press point)
Key Travel: 0.45 mm
Key switch Lifetime: 1 mil. operations
Protection Level: IP67
Mounting Type: Top panel mounting
Operating Temperature: -20 °C to +60 °C
Colors: 2 (white, black)
G.W.: 1.50 KG
Key Dimensions (print area): 11.0 mm x 11.0 mm



TRACKBALL:
25mm stainless steel ball or hardened resin ball.
Resolution: 800DPI
Lifetime: more than 10 million cycle
Power supply voltage: 5 V DC ±0.25V
Current rating (active mode): 800mA

ELECTRICAL DATA:
Supply Voltage: +5V DC +/- 5%
Current Rating: appr. 100mA
EMC Standard:EN 55032:2015; EN 55035:2017
Lifespan> 5 years
Interface: PS2, USB available.
OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

RELIABILITY
RoHS, CE and FCC
Protection Level: IP67
Key Lifespan >1 million actuations
Trackball lifespan > 10 million of times
MTBF >20000H
MTTR <30min
Omron Switch Industrial Membrane Keypad IP67 800DPI Dynamic Optical Trackball 0Omron Switch Industrial Membrane Keypad IP67 800DPI Dynamic Optical Trackball 1
