Brushed SS RS232 Backlit USB Keyboard IP67 With 0.45mm Stroke

Brushed SS RS232 Backlit USB Keyboard IP67 With 0.45mm Stroke

  • High Light

    Brushed SS Backlit USB Keyboard

    ,

    RS232 Backlit USB Keyboard

    ,

    0.45mm Stroke Illuminated Metal Keypad

  • Material
    Metal Stainless Steel
  • Colour
    Brushed Stainless Steel Or Black
  • Panel
    Top Panel Mounting
  • Interface
    USB, PS/2, RS232
  • Key Travel
    0.45mm Short Stroke
  • Name
    Backlit USB Keyboard
  • Place of Origin
    Shenzhen, China
  • Brand Name
    IKB-MKB
  • Certification
    CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
  • Model Number
    K-TEK-B88KP-BL-DWP
  • Minimum Order Quantity
    1pc
  • Packaging Details
    Each keyboard to one box, several boxes to one carton.
  • Delivery Time
    ASAP Within 2 weeks upon payment confirmed
  • Payment Terms
    Full payment in advance, Western Union, T/T, Paypal
  • Supply Ability
    3000psc/month

Brushed SS RS232 Backlit USB Keyboard IP67 With 0.45mm Stroke

Main Features:

  1. 12 keys IP67 dynamic compact format vandal proof Stainless Steel industrial numeric keypad with industrial metal dome PCB electronics controller shieded & protected by stainless steel housing
  2. Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.
  3. Ease of customizing with multiple languages, to accommodate foreign or custom variants.
  4. key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.
  5. Complete electronic modules including controller in close consultation with our customers are available.
  6. OS: All windows, Linux, Unix, Mac OSX
  7. Adjustable industrial backlight optional
  8. threaded bolts under top stainless steel plate for top panel mounting solution.

APPLICATION:

This Keypad is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications,
internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and
other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phone etc.



MAIN FEATURE:

  • Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.
  • Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
  • Waterproof execution according to IP65 protection from top panel, top stainless steel plate with flat keyboard surface for easy cleaning, threaded bolts & sealing gasket for easy tightly mounting to enclosure or panel.
  • An excellent tactile feel with short stroke switches and allow users to achieve stable and accurate data input, with firm tactile perception for comfortable operation.
  • Key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.
  • Metal keys are protected against twisting and levering which cannot be dislodged from front, or defaced removing key covers.
  • Ease of customizing with multiple languages, to accommodate foreign or custom variants.
  • Complete electronic modules including controller in close consultation with our customers are available.
  • OS: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/Win 7, Linux, Unix, Mac OSX



Specifications:



RELIABILITY

Certification

RoHS Compliant, CE, FCC and ESD

Protection Level

IP67

Vandal resistant

IK09

Key Lifespan

>1 million actuations

MTBF

>20000H

MTTR

<30min





Actual Photo:

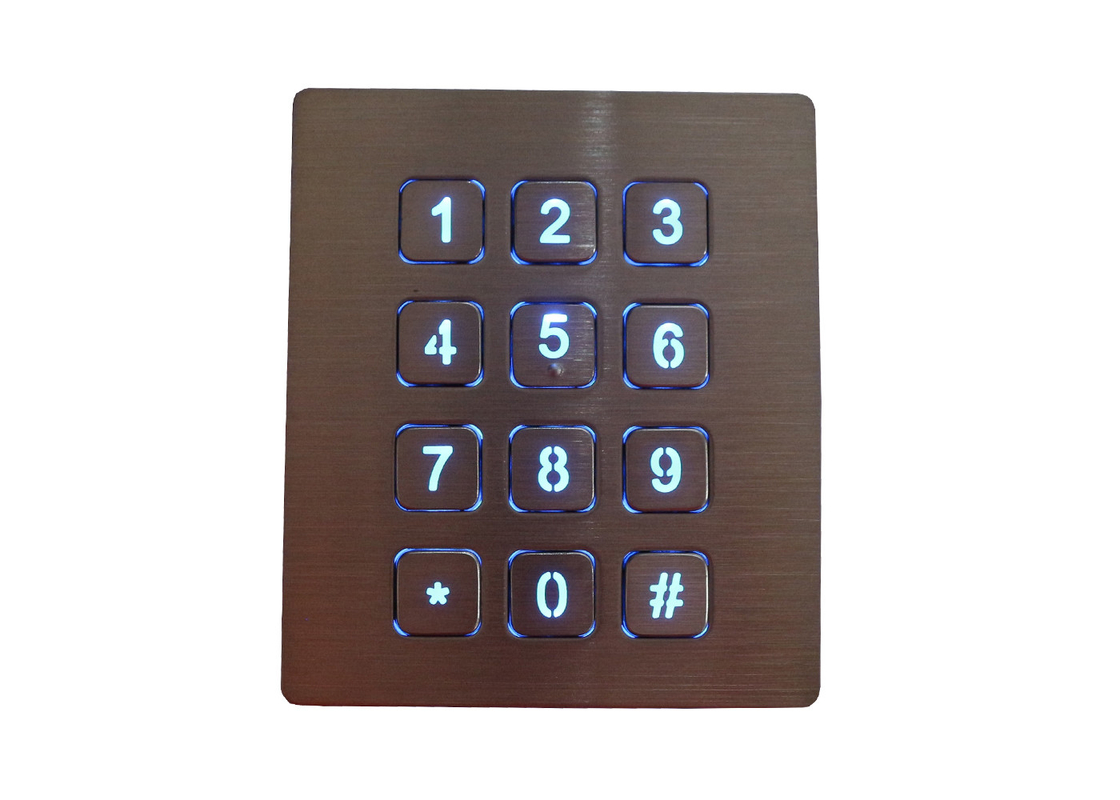

Brushed SS RS232 Backlit USB Keyboard IP67 With 0.45mm Stroke 0

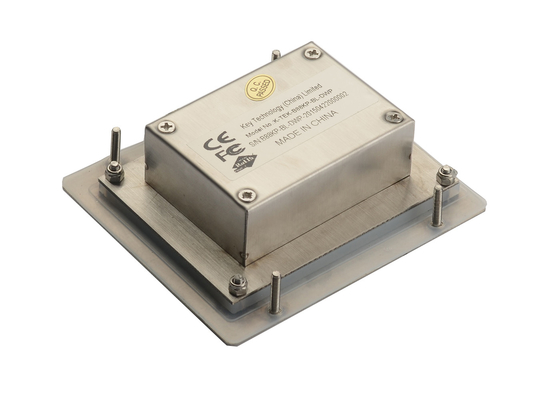

Brushed SS RS232 Backlit USB Keyboard IP67 With 0.45mm Stroke 1
