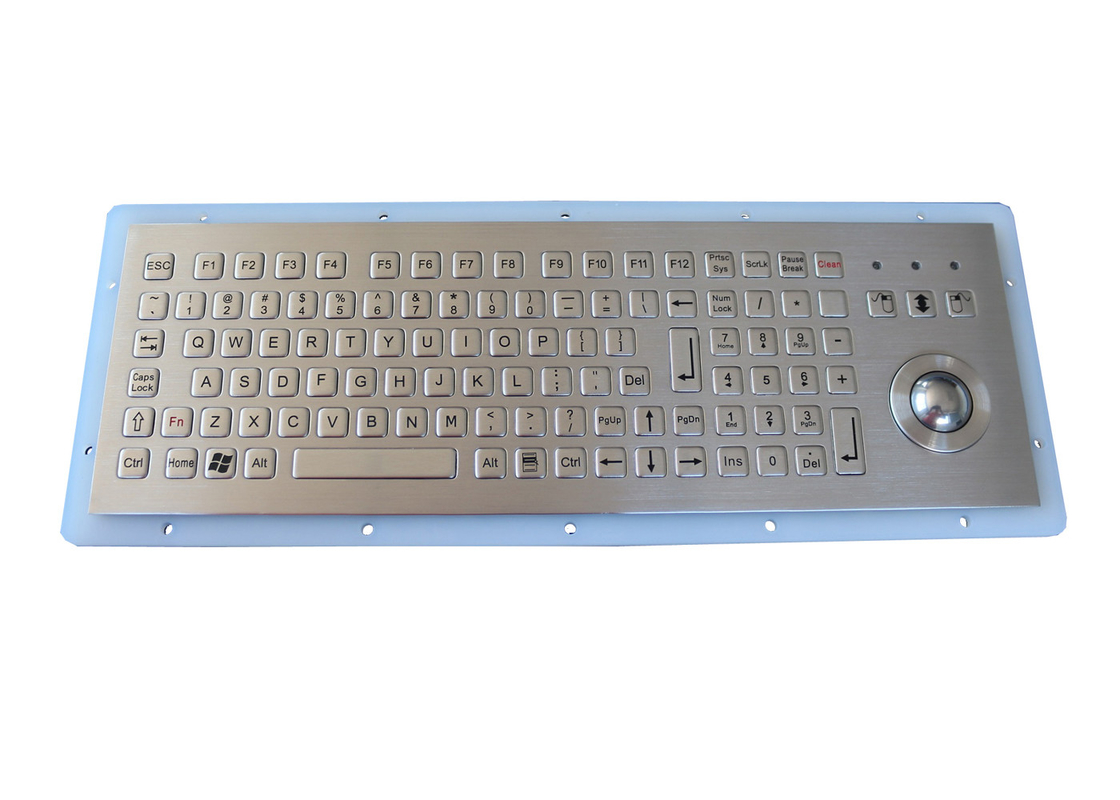

107 Keys Industrial Trackball Keyboard IP67 Panel Mounted Dynamic

107 Keys Industrial Trackball Keyboard IP67 Panel Mounted Dynamic
107 Keys Industrial Trackball Keyboard IP67 Panel Mounted Dynamic

Large Image :  107 Keys Industrial Trackball Keyboard IP67 Panel Mounted Dynamic

Product Details:
Place of Origin: Shenzhen, China
Brand Name: IKB-MKB
Certification: CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Model Number: K-TEK-B312-OTB-KP-FN-DWP
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: To be quoted
Packaging Details: Each keyboard to one box, several boxes to one carton.
Delivery Time: ASAP Within 2 weeks upon payment confirmed
Payment Terms: Full payment in advance, Western Union, T/T, Paypal
Supply Ability: 3000psc/month
Detailed Product Description
Keys: 107 Keys Switch Life: More Than 1 Million Of Operations
Operating Temperature: -20oC To +60oC Vandal Resistant: IK09
Protection Level: IP67 G.W.: 1.60KGs
High Light:

107 Keys Industrial Trackball Keyboard

,

Dynamic Industrial Trackball Keyboard

,

Panel Mounted Washable Metal Keyboard

DESCRIPTION:

107 keys MINI ultra thin compact format horizontal IP67 dynamic waterproof rated vandal proof stainless steel industrial keyboard with full functionalities, with IP68 dynamic rated washable 25.0mm stainless steel optical trackball module with 800 DPI resolutions for fast and accurate position with extremely smooth operation, industrial metal dome PCB electronics controller module with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, with numeric keypad included and 12 function keys(F1 F2..F10, F11, F12) on the top line for easy operation. IP68 washable optical trackball module without metal parts inside, no rust risk and with anti-salt spray corrosion function, 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, FN + CLEAN combination key to lock/disable the entire keyboard for easy cleaning and washing without needing to take away the keyboard from PC, rear stainless steel plate with water-tight sealing gasket for easy sealing and tightening with cabinet or panel, rear panel mounting solution. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.

DIMENSIONS: 312.0mm x 105.0mm (top panel)



MECHANICAL DATA
ELECTRICAL DATA
Actuator/keys: 107 keys, super quality SUS304 brushed stainless steel
Key top style: Non-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
Key Size: 10.0mm x 10.0mm for normal keys, 10.0mm x 28.0mm for enter key, 10.0mm x 70.0mm for space bar.
Key travel: 0.45mm
Actuation Force: 3.2N+/-0.1N for key 10.0mm x 10.0mm (pressure point) 4.0N+/-0.1N for key 1..0mm x 28.0mm (pressure point)
Switch life: more than 1 million of operations.
Front Plate: 1.5mm thickness super quality brushed stainless steel
Back Plate: 1.5mm thickness brushed & oxidized aluminium
G.W.: 1.60KGs
Dimensions: 312.0mm x 105.0mm (front panel) , 330.0mm x 123.0mm (back panel)
Supply Voltage: +5V DC +/-5%
Current Rating: 300mA
EMC Standard: EN 55032:2015, EN 55035:2017

Lifespan > 5 years
Switch Contact Material: Gold-on-Gold key switch technology PCB.
Interface: PS2, USB available.
OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

ENVIRONMENTAL ADAPTABILITY
Operating temperature:-20℃ to +60℃
Storage temperature: -30℃ to +70℃
Operating RH: 30-90%
Atmospheric pressure: 60-106Kpa.
Saline mist: 96 hours, IEC 60512-6
Damp heat test at + 40℃: 21 days, IEC 60512-6
Dry heat test at + 85℃: 10 days, IEC 60512-6
RELIABILITY
RoHS Compliant, CE and FCC, ESD
Protection Level: IP67 (front panel)
Vandal resistant IK09
Key Lifespan >1 million actuations
MTBF >20000H
MTTR <30min



APPLICATION
This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.


107 Keys Industrial Trackball Keyboard IP67 Panel Mounted Dynamic 0107 Keys Industrial Trackball Keyboard IP67 Panel Mounted Dynamic 1
