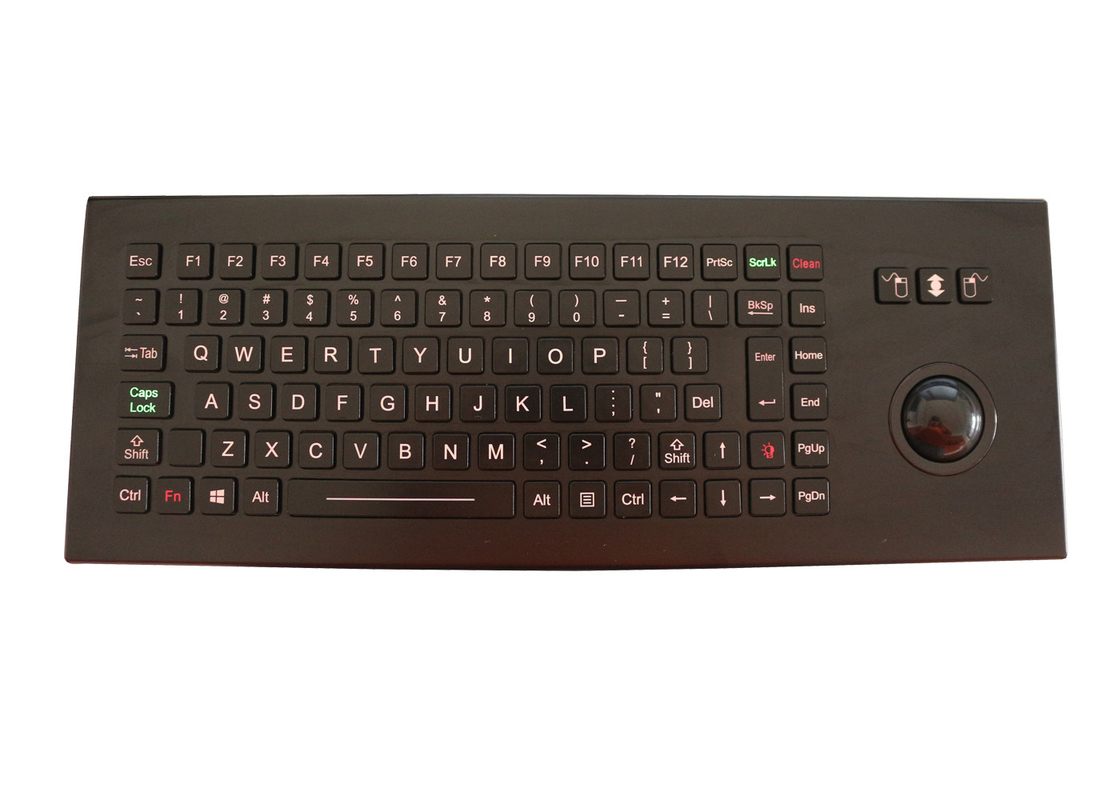

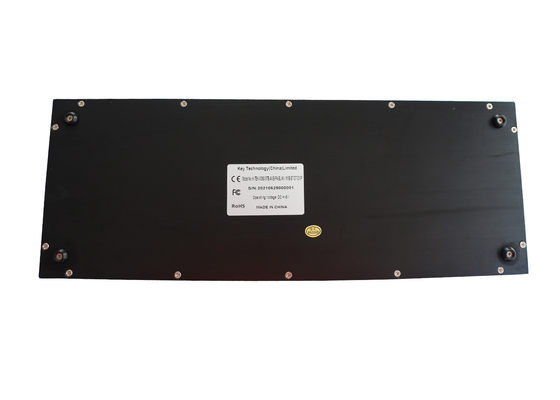

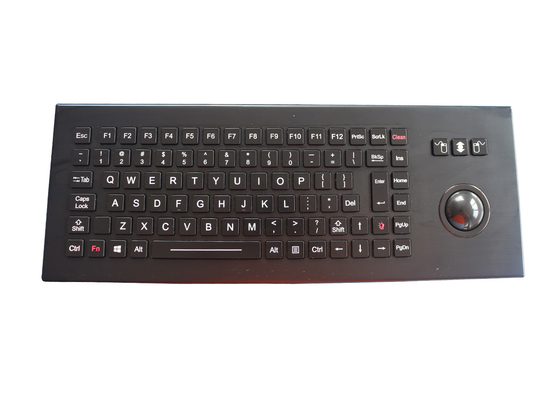

Dynamic Military Marine EMC Keyboard Desktop Version IK09 With Trackball

Large Image : Dynamic Military Marine EMC Keyboard Desktop Version IK09 With Trackball

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	IKB-MKB
Certification:	CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Model Number:	K-TEK-M390-MTB-FN-BL-NV-151B-BT-DT-DWP

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	Each keyboard to one box, several boxes to one carton.
Delivery Time:	ASAP Within 2 weeks upon payment confirmed
Payment Terms:	Full payment in advance, Western Union, T/T, Paypal
Supply Ability:	3000psc/month

Contact Now

Dynamic Military Marine EMC Keyboard Desktop Version IK09 With Trackball

Description

Keycap:	Durable Polymer Keys	Keys:	92 Keys
Interface:	PS2, USB	Protection Level:	IP68
Vandal Resistant:	IK09	Operating Temperature:	-40℃ To +85℃
High Light:	Marine EMC Keyboard , Dynamic Military EMC Keyboard , IK09 Military Metal Keyboard

IP68 Dynamic Military Marine Keyboard Desktop Version With Trackball

DESCRIPTION:

92 keys compact format IP68 dynamic water proof vandal proof stainless steel military keyboard with durable polymer keys, with IP65 static 38mm mechanical trackball module with 400DPI resolutions, with 12 function keys F1, F2, ... F12, sealed and ruggedized Military Grade PCB electronics module with carbon-on-gold key switch technology with stroke 1.50mm with extremely good tactile feeling for fast and accurate data input without any noise, high quality durable black titanium electroplated on whole keyboard plate and housing, one complete silicone rubber alone the rear stainless steel plate, Movable stand alone DESK TOP VERSION. FN + CLEAN key to lock/disable the keyboard for easy cleaning without taking away the keyboard from PC. Red/ white backlight is included. Aviation plug or USB interface is optional. The whole keyboard and trackball part can meet MIL-STD-461G with EMC (Electro Magnetic Compatibility) & MIL-STD-810F (wide temperature, shock, vibration, humidity etc), Which is good for outdoor application with direct rain and very harsh environments with humidity,much dynamic water, oil, dirt, salt mist etc.

MECHANICAL DATA:

Key top style:	Protuberant rectangular keys, laser engraved & etched legends & raised Braille on keys are available
Key Size:	13.5mm x 13.5mm for normal keys, 13.5mm x 31.5mm for enter key, 13.5mm x 85.5mm for space bar.
Key travel:	1.50mm
Actuation Force:	1.80 N+/-0.1N for key 13.5mm x 13.5mm (pressure point ), 2.5 N+/-0.10N for key 13.5mm x 31.5mm (pressure point)
Switch life:	More than 5 million of operations.
Trackball	38mm (1.5') diameter mechanical trackball
G.W.	2.5KGs
Dimensions	390.0mm x 145.0mm x 36.5mm(LWH)
Output :	PS2 or USB
Tracking Speed:	Maximum 1,016 m/sec
Power supply voltage:	5VDC ± 0.25V
Current rating(active mode)	300 mA
G.W.:	1.80KGs
