Industrial Trackball Keyboard IP67 Washable Kiosk 100mA With Separate FN Keys

Industrial Trackball Keyboard IP67 Washable Kiosk 100mA With Separate FN Keys
Industrial Trackball Keyboard IP67 Washable Kiosk 100mA With Separate FN Keys Industrial Trackball Keyboard IP67 Washable Kiosk 100mA With Separate FN Keys

Large Image :  Industrial Trackball Keyboard IP67 Washable Kiosk 100mA With Separate FN Keys

Product Details:
Place of Origin: Shenzhen, China
Brand Name: IKB-MKB
Certification: CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Model Number: K-TEK-B361-OTB-FN-DWP
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: To be quoted
Packaging Details: Each keyboard to one box, several boxes to one carton.
Delivery Time: ASAP Within 2 weeks upon payment confirmed
Payment Terms: Full payment in advance, Western Union, T/T, Paypal
Supply Ability: 3000psc/month
Detailed Product Description
Dimensions: 361.0mm X 145.0mm (front Panel) , 343.0mm X 125.0mm (back Panel) Key Travel: 0.45mm
G.W.: 2.20KGs Interface: PS2/USB Available
Mouse Buttons: 3 Keys: 86 Keys
Trackball: 800DPI Optical Trackball
High Light:

FN Keys Industrial Trackball Keyboard

,

100mA Industrial Trackball Keyboard

,

Washable Kiosk Industrial Metal Keyboard

DESCRIPTION:

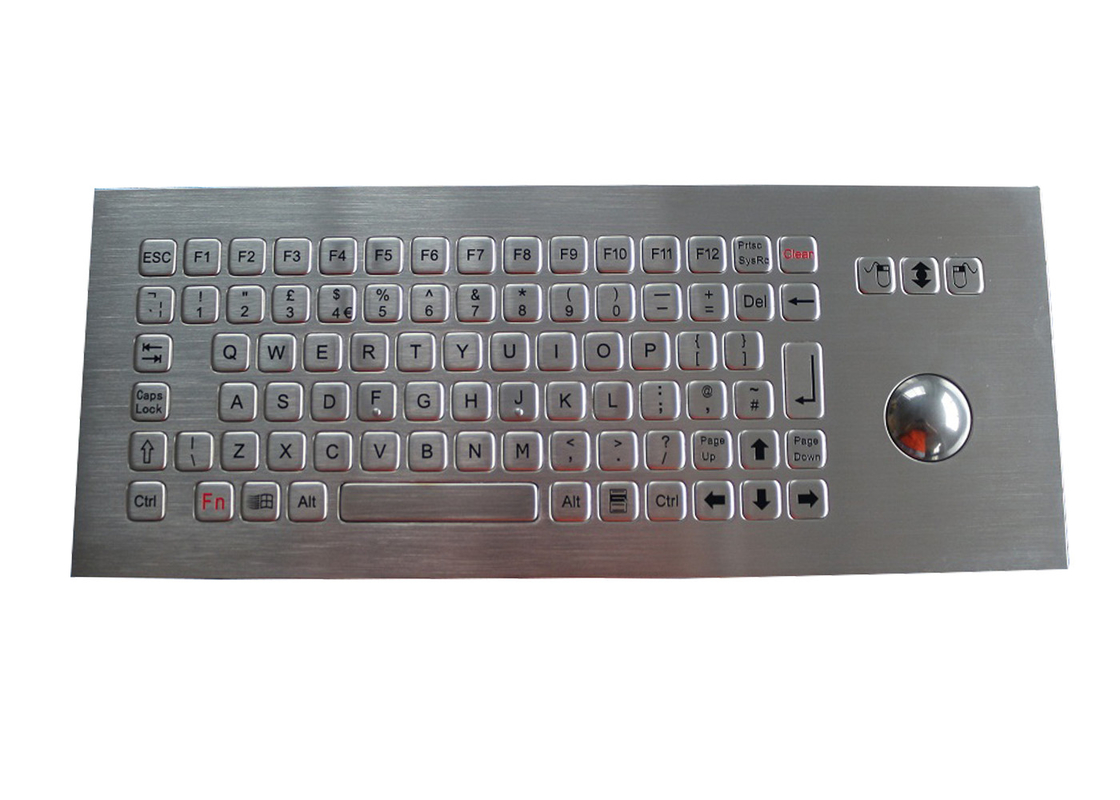

-86 keys compact format IP67 dynamic washable vandal proof stainless steel industrial keyboard with IP68 dynamic rated washable 38.0mm stainless steel optical trackball module with 800 DPI resolutions for fast and accurate cursor position with extremely smooth operation without any noise



industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input. F1, F2, F3…F10, F11, F12 are on the top line for easy operation

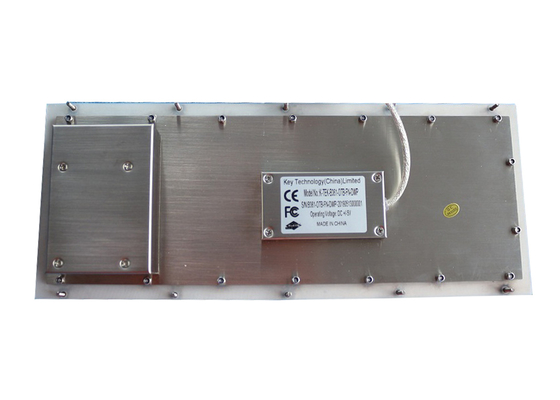

3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, one complete sealing silicone rubber under top stainless steel plate for easy mounting & sealing tightly with cabinet, top stainless steel plate with side threaded bolts for top panel mounting solution



DIMENSIONS: 361.0mm x 145.0mm (top panel)

Industrial Trackball Keyboard IP67 Washable Kiosk 100mA With Separate FN Keys 0

MECHANICAL DATA
Actuator/keys
86 keys, 2.0mm thickness super quality SUS304 brushed stainless steel flat key
Key top style
Non-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are
available
Key Size
14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar
Key travel
0.45mm
Actuation Force
3.2N+/-0.1N for key 14.0mm x 14.0mm (pressure point) , 4.0N+/-0.1N for key 14.0mm x 28.0mm
(pressure point)
Switch life
more than 1 million of operations
Front Plate
1.5mm thickness super quality brushed stainless steel
Back Plate
2.0mm thickness super quality brushed stainless steel
Tracker ball
38.1mm (1.5’) diameter,IP68 dynamic washable 800DPI optical trackball
G.W.:
2.20KGs

ELECTRICAL DATA
Supply Voltage: +5V DC +/-5%
Current Rating: appr. 100mA
EMC Standard: EN 55032:2015, EN 55035:2017
Lifespan > 5 years
Switch Contact Material: metal dome PCB with Gold-on-Gold key switch technology
Interface: PS2, USB available.
OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).


Industrial Trackball Keyboard IP67 Washable Kiosk 100mA With Separate FN Keys 1

Industrial Trackball Keyboard IP67 Washable Kiosk 100mA With Separate FN Keys 2

Industrial Trackball Keyboard IP67 Washable Kiosk 100mA With Separate FN Keys 3
