108 keys Industrial Membrane Keyboard Desktop Version IP68 washable

108 keys Industrial Membrane Keyboard Desktop Version IP68 washable
108 keys Industrial Membrane Keyboard Desktop Version IP68 washable 108 keys Industrial Membrane Keyboard Desktop Version IP68 washable

Large Image :  108 keys Industrial Membrane Keyboard Desktop Version IP68 washable

Product Details:
Place of Origin: Shenzhen, China
Brand Name: IKB-MKB
Certification: CE, FCC, ROHS
Model Number: K-TEK-D399TP-KP-FN-DT
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: To be quoted
Packaging Details: Each keyboard to one box, several boxes to one carton.
Delivery Time: ASAP Within 2-3 weeks upon payment confirmed
Payment Terms: Full payment in advance, Western Union, T/T, Paypal
Supply Ability: 3000psc/month
Detailed Product Description
Touchpad: Yes Full Functionality: Yes
Material: Membrane Color: White/black
Interface: USB /PS2 Key Switch: Gold-on-gold
High Light:

108 Keys Industrial Membrane Keyboard

,

USB PS2 Industrial Membrane Keyboard

,

Washable Desktop Rugged Keyboard

IP68 Industrial Membrane Keyboard Desktop Version With Touchpad

DESCRIPTION:

108 keys IP68 dynamic rated washable industrial membrane keyboard with full keyboard functionalities with integrated numeric keypad and function keys on the upper line, IP65 dynamic sealed and ruggedized tough touchpad for fast and accurate cursor position, 2.0mm thickness industrial metal dome PCB with gold-on-gold metal dome key switch technology with short stroke 0.45mm with excellent good tactile feeling for reliable data input, with Clean key for easy cleaning via lock/disable the entire keyboard without needing to take keyboard from PC, surface mounted extremely flush with anti-microbial, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments, ruggedized and backed with 3.0mm aluminum plate with sand blasting & oxygenation treatment, stand alone movable desk top version with robust polycarbonate case.



MECHANICAL DATA

Key

108

Key switch Technology

metal dome PCB with gold-on-gold metal dome key switch technology with short stroke keys

Actuation Force:

2.8+/-0.1N for key 13.0mm x 13.0mm (press point)

Key travel

0.45mm

Key switch Lifetime

1 mil. operations

Protection Level

IP68(front panel)

Mounting Type

stand alone desk top

Operating Temperature

-20 °C to +60 °C

Colors

White,black color optional

G.W.

1.30KGs

Key Dimensions
(print area)

13.0mm x 13.0mm

Dimensions

399.0mm x 150.0mm x 19.3mm (L x W x H)

TOUCHPAD

Touchpad cover

Composite

Motion Detection

Method

capacitive

Resolution

40 counts / mm

More than Lifetime 10 million strokes

Mutual Capacitance sensing

X/Y position
sensing resolution

40 counts/mm

X/Y position reporting

 Relative

 Output
(self-detectable depending on cable)

PS2 or USB

Tracking speed

Maximum 1,016 m/sec

Power supply voltage

5 V DC ±0.25V

Current rating
(active mode)

17 mA



ELECTRICAL DATA:
Supply Voltage: +5V DC +/- 5%
Current Rating: appr. 50mA
EMC Standard: EN 55032:2015; EN 55035:2017
Lifespan> 5 years
Interface: PS2, USB available.
OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).


RELIABILITY
RoHS , CE, FCC
Protection Level: IP68(front panel)
Key Lifespan >1 million actuations
Touchpad lifespan > 10 million of times
MTBF >20000H
MTTR <30min

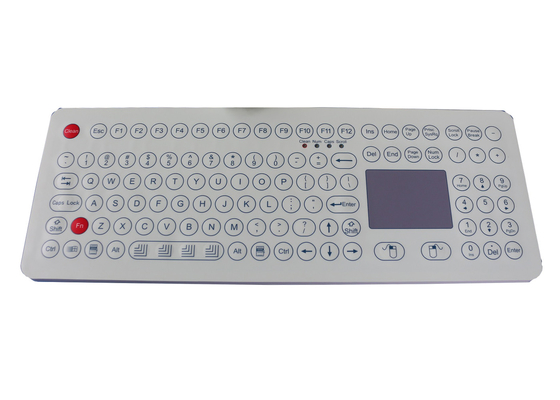

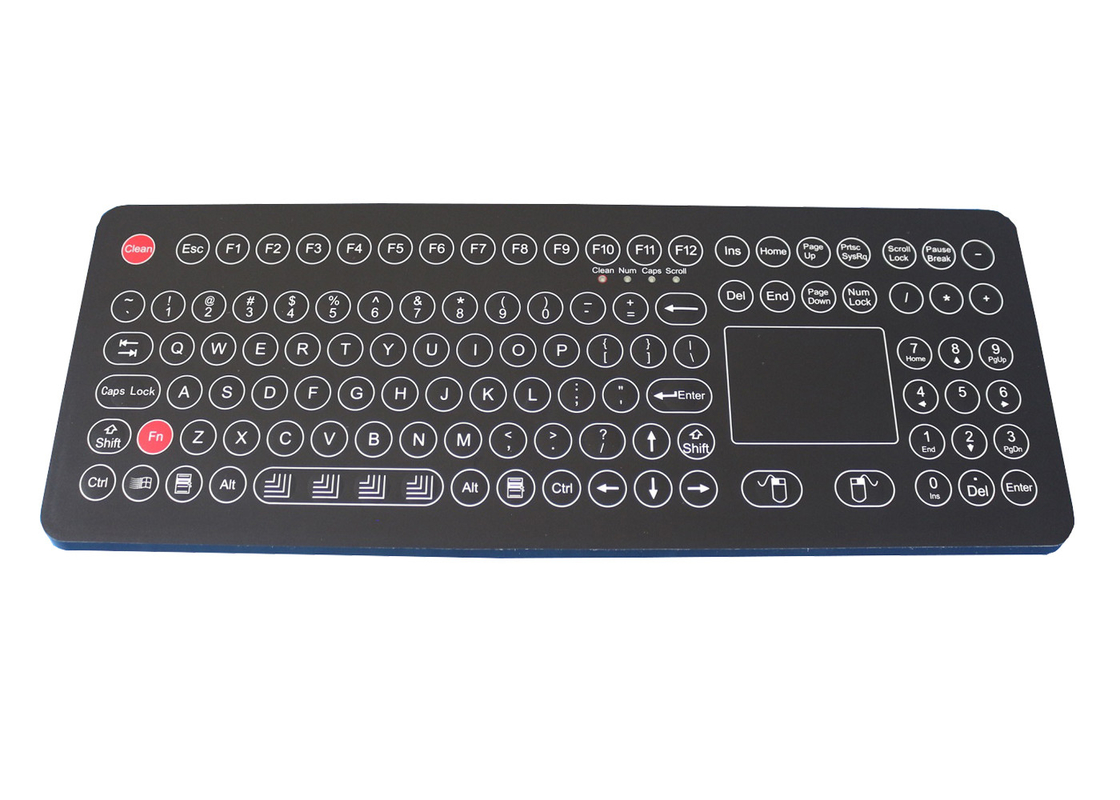

108 keys Industrial Membrane Keyboard Desktop Version IP68 washable 0
