Product Details:
|
| Interface: | USB Or PS/2 Available | Color: | Black |
|---|---|---|---|
| Mounting Solution: | Top Panel Mount | Key Travel: | 1.5mm |
| Material: | Silicone Rubber | Backlight: | Optional |
| High Light: | 89 Keys Waterproof Touchpad Keyboard,Dynamic Sealed Waterproof Touchpad Keyboard,ruggedized Silicone Rubber Industrial Keyboard |
||

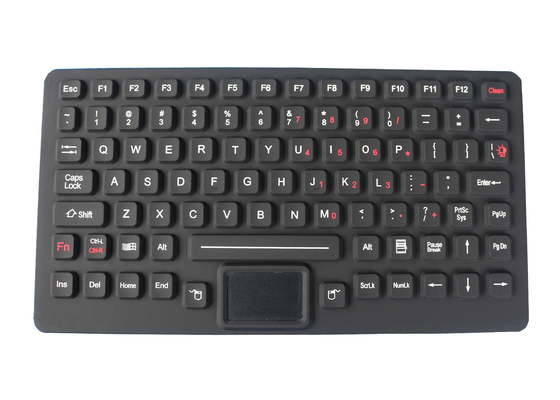

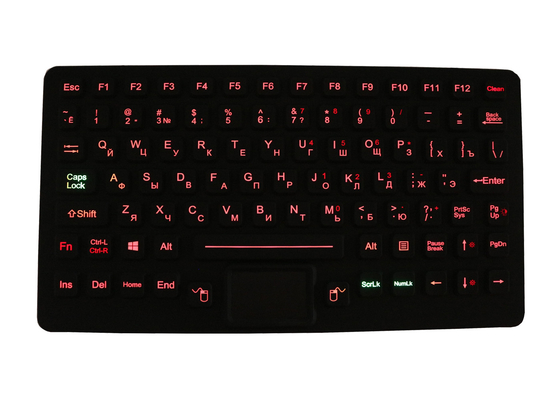

Silicone Waterproof Touchpad Keyboard Military Level With Adjustable Backlight
Special Features:
| MECHANICAL DATA |
Key: 89 keys
Key top style: Protuberant rectangular keys with tactile feeling.
Touchpad cover: Composite
More than Lifetime 10 million strokes
Mutual Capacitance sensing
X/Y position sensing resolution: 40 counts/mm
X/Y position reporting: Relative
Output (self-detectable depending on cable): PS2 or USB
Tracking speed: Maximum 1,016 m/sec
Power supply voltage: 5 VDC ± 0.25V
Current rating (active mode): 17 mA
Key Size: 12.0mm x 13.0mm for normal keys, 23.4mm x 13.0mm for enter key, 68.0mm x 13.0mm for space bar key
G.W.: 0.80KGs
|
| ELECTRICAL DATA |
Supply Voltage: +5V DC +/-5%
Current Rating: 50mA (non-backlight) , 300mA (with backlight on)
EMC Standard: EN 55032:2015
EN 55035:2017
MIL-STD-810F (wide temperature, shock, vibration, humidity)
Lifespan> 5 years

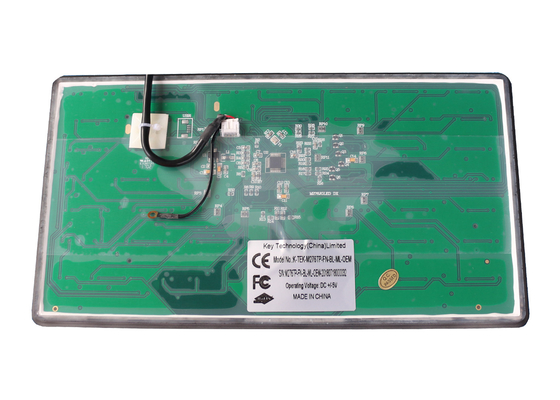

Switch Contact Material: Carbon-on-Gold key switch technology with gold PCB.
Interface: PS2, USB available.
Cable length: Standard 2.0m, customized length available.
OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
|
| ENVIRONMENTAL ADAPTABILITY |
Operating temperature:-40℃ to +85℃
Storage temperature: :-45℃ to +90℃
Saline mist:96h, IEC60512-6
Damp heat test at +40℃: 21 days, IEC 60512-6
Dry heat test at +85℃: 10 days, IEC 60512-6
Operating RH: 100%
Atmospheric pressure: 60-106Kpa
Shock: 3x11 ms pulses of 50g on each of 3 axes
Vibration: POWER SPECTRAL DENSITY: 0.04g/Hz, FREQUENCY RANGE: 20Hz - 2kHz, DURATION OF TEST PER AXIS: 3 hours
Flammability
PRINTED CIRCUIT BOARD: 94 V-0 SILICONE OVERLAY: 94 HB INTERFACE CABLE: 94 HB
|
| RELIABILITY |
RoHS , CE, FCC
Protection Level: IP67
Key Lifespan >5 million actuations
MTBF >20000H
MTTR <30min
|
