Product Details:
|
| Actuator/keys: | 20 Keys, 1.50mm Thickness Super Quality SUS304 | Key Size: | 14.0mm X 14.0mm For Normal Keys, 14.0mm X 28.0mm For Function Keys |
|---|---|---|---|
| Key Travel: | 0.45mm | Switch Life: | More Than 1 Million Of Operations. |
| Front Plate: | 1.5mm Thickness Super Quality Brushed Stainless Steel | G.W.: | 0.80KGs |
| High Light: | 20 Keys Metal Numeric Keypad,Kiosk Ruggedized Metal Numeric Keypad,Vandal Proof Panel Mount Industrial Keyboard |
||
MECHANICAL DATA:
| Actuator/keys | 20 keys, 1.50mm thickness super quality SUS304 brushed stainless steel flat key. |
| Key top style | Non-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available |
| Key Size | 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for function keys |
| Key travel | 0.45mm |
| Actuation Force | 2.0N+/-0.1N for key 14.0mm x 14.0mm (pressure point) 4.0N+/-0.1N for key 14.0mm x 28.0mm (pressure point) |
| Switch life | more than 1 million of operations |
| Front Plate | 1.5mm thickness super quality brushed stainless steel |
| Back Plate | 1.5mm thickness super quality stainless steel |
| G.W. | 0.80KGs |
| Dimensions |
139.0mm x 98.0mm (L x W ) |

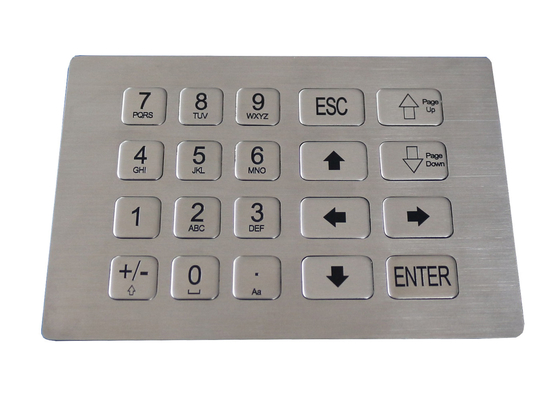

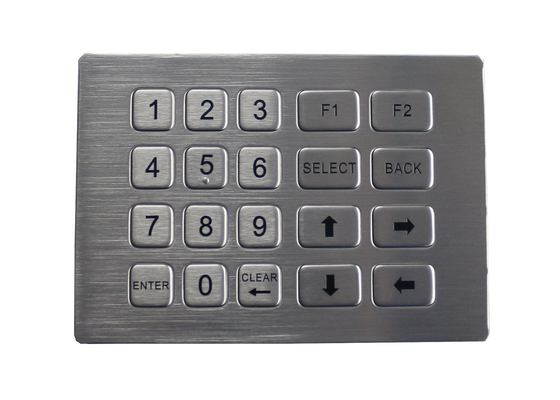

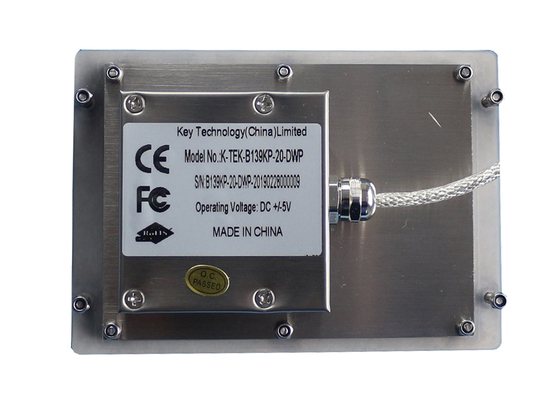

Actual Photos for reference:
ENVIRONMENTAL ADAPTABILITY
· Operating temperature:-20oC to +60oC
· Storage temperature: -30oC to +70oC
· Operating RH: 30-90%
· Atmospheric pressure: 60-106Kpa.
· Saline mist: 96 hours, IEC 60512-6
· Damp heat test at + 40oC: 21 days, IEC 60512-6
· Dry heat test at + 85oC: 10 days, IEC 60512-6
RELIABILITY
· RoHS Compliant, CE and FCC, ESD
· Protection Level: IP67(front panel)
· Vandal resistant IK09
· Key Lifespan >1 million actuations
· MTBF >20000H
· MTTR <30min
Key Technology China Limited possess the professional experience and empirical knowledge to design, develop, manufacture, market and sell most complete line of vandal proof IP65/IP67/IP68 stainless steel keyboards, keypad, pointing devices, ATM PINPADs; Medical keyboards and Military keyboards etc.
We are the one-stop-shop for your requirements of products services in the areas of industrial input devices to extent to immense international market. Satisfied Key Technology China Limited's customers include Finance, Aerospace, Chemicals/Petro, Food & Beverage, Healthcare, Telecom/Media, High Technology, Transportation-Automotive, Manufacturing, Utilities & Resources, Pulp and Paper - Government/Defense, Universities and Academia, Museums/Public Displays and Miscellaneous industries.
Active, positive, and works as a team is a special attribute of the people in Key Technology China Limited. The purpose of the operation of the company is to create value, which is the creation of customer value, creation of employee value, and the creation of shareholder value. The principle of business is based on Righteousness, Integrity, Diligence and Thrift, which stands as our guideline of conduct in the future. By doing so, Key Technology China Limited is moving towards a global technology firm with an optimistic and long future.
