IP67 Dynamic Sealed Industrial Touchpad Ruggedized Stainless Steel USB Interface

IP67 Dynamic Sealed Industrial Touchpad Ruggedized Stainless Steel USB Interface
IP67 Dynamic Sealed Industrial Touchpad Ruggedized Stainless Steel USB Interface IP67 Dynamic Sealed Industrial Touchpad Ruggedized Stainless Steel USB Interface

Large Image :  IP67 Dynamic Sealed Industrial Touchpad Ruggedized Stainless Steel USB Interface

Product Details:
Place of Origin: Shenzhen, China
Brand Name: IKB-MKB
Certification: CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Model Number: K-TEK-B140TP-DWP
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: To be quoted
Packaging Details: Each keyboard to one box, several boxes to one carton.
Delivery Time: ASAP Within 2 weeks upon payment confirmed
Payment Terms: Full payment in advance, Western Union, T/T, Paypal
Supply Ability: 3000psc/month

IP67 Dynamic Sealed Industrial Touchpad Ruggedized Stainless Steel USB Interface

Description
Dimensions: 140.0mm X 145.0mm (front Panel) Interface: USB
Material: Stainless Steel Mouse Button: 2 Mouse Button
Mounting Method: Front Panel
High Light:

Ruggedized SS Industrial Touchpad

,

Dynamic Sealed Industrial Touchpad

,

IP67 rugged touchpad

IP67 Rugged Stainless Steel Industrial Touchpad Pad

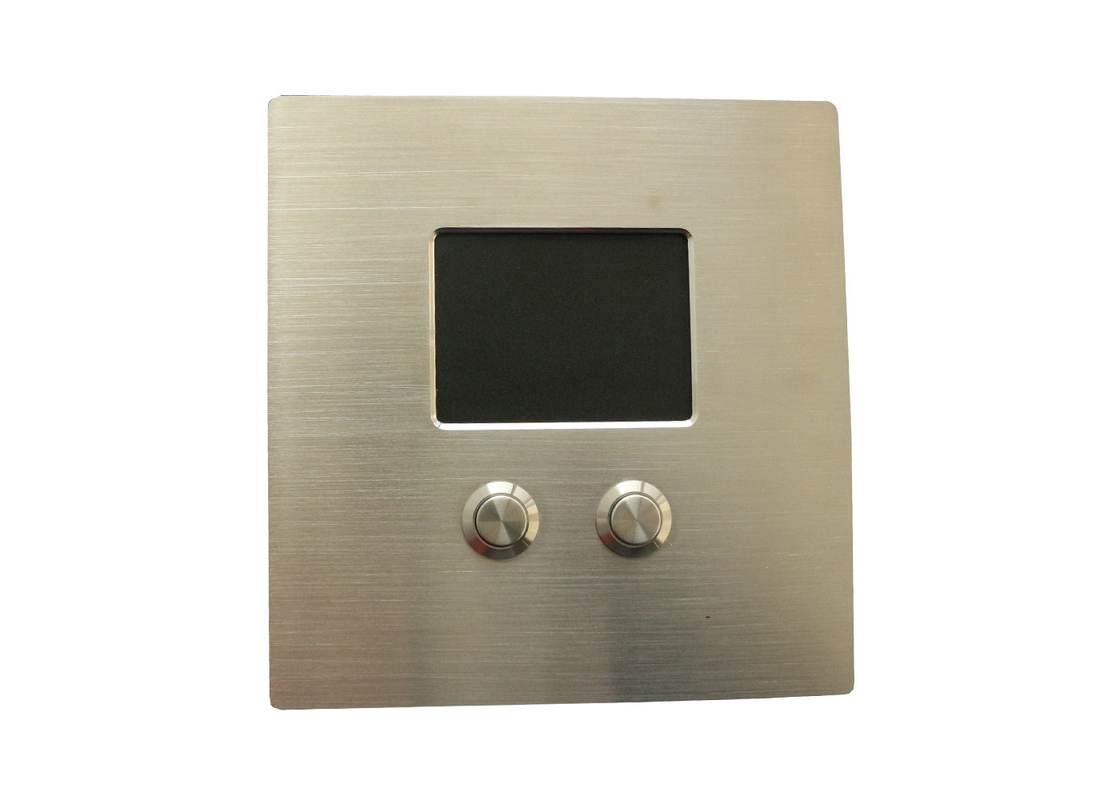

Description: IP67 dynamic sealed and stainless steel ruggedized tough touchpad with IP67 dynamic sealed stainless steel mouse buttons, with top panel mounting. One complete silicone rubber along the top stainless steel plate for easy mounting & sealing tightly with cabinet. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water,oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.



DIMENSIONS: 140.0mm x 145.0mm (top panel)



TECHNICAL SPECIFICATION

ITEM SPECIFICATION
Mechanical Front Plate Quality brushed stainless steel
Touchpad thickness 1.50 mm PCB thickness inclusive of mylar layer
Validated touch width 47.0mm (max)
Validated touch length 63.0mm (max)
Mounting Rack top stainless steel plate with mounting screw bolts

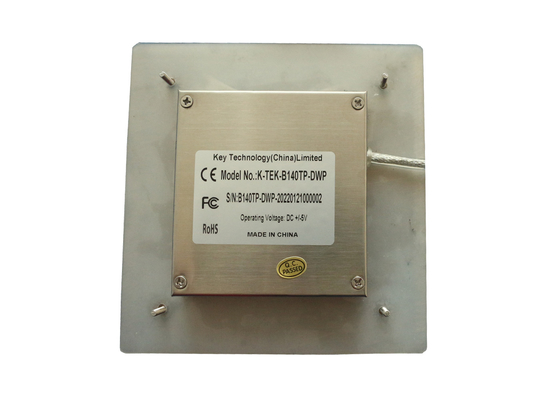

Back Metal Cover Rear side integrated electronics protected by a metal cover
Touchpad lifespan > 5 years
Dimensions Touchpad: 63.0mm x 47.0mm; Front Mounting Panel: 140.0mm x 145.0mm (front panel)
Interface PS2 and USB both available
Electrical Power supply 5 VDC ± 0.25V
Work current 17 mA (normal)
X/Y position sensing resolution: 1000 points/inch (40 points/mm)
X/Y position reporting: Relative
Tracking speed: Maximum 1,016 m/sec
Protection level: IP67
Static Release: 15 KV (front panel)
EMC Standard: EN 55032:2015, EN 55035:2017
Environmental Operating temperature: -20°C to + 60°C
Storage temperature: - 30°C to + 70°C
Operating RH: 10%-95%
Atmospheric pressure: 60-106Kpa
Reliability MTBF >20000H
MTTR < 30min
Key Switch Lifespan >1 million actuations
OS All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos-To be confirmed)
Packing Details Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton.
