Medical Membrane Industrial Keyboard 84 Keys With 38mm Optical Trackball

Medical Membrane Industrial Keyboard 84 Keys With 38mm Optical Trackball
Medical Membrane Industrial Keyboard 84 Keys With 38mm Optical Trackball Medical Membrane Industrial Keyboard 84 Keys With 38mm Optical Trackball

Large Image :  Medical Membrane Industrial Keyboard 84 Keys With 38mm Optical Trackball

Product Details:
Place of Origin: Shenzhen, China
Brand Name: IKB-MKB
Certification: CE, FCC, ROHS, ISO 9001-2015
Model Number: K-TEK-D333-OTB-FN-SW
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: To be quoted
Packaging Details: Each keyboard to one box, several boxes to one carton.
Delivery Time: ASAP Within 2 weeks upon payment confirmed
Payment Terms: Full payment in advance, Western Union, T/T, Paypal
Supply Ability: 3000psc/month
Detailed Product Description
Keys: 84 Keys Mounting: Top Panel Mounting
Color: Black & White Layout: Any Customized Language
Trackball Resolution: 800DPI Material: Membrane
High Light:

Medical Ruggedized Membrane Industrial Keyboard

,

Optical Trackball Membrane Industrial Keyboard

,

84 keys ruggedized custom membrane keyboard

Medical Membrane Industrial Keyboard With Optical Trackball

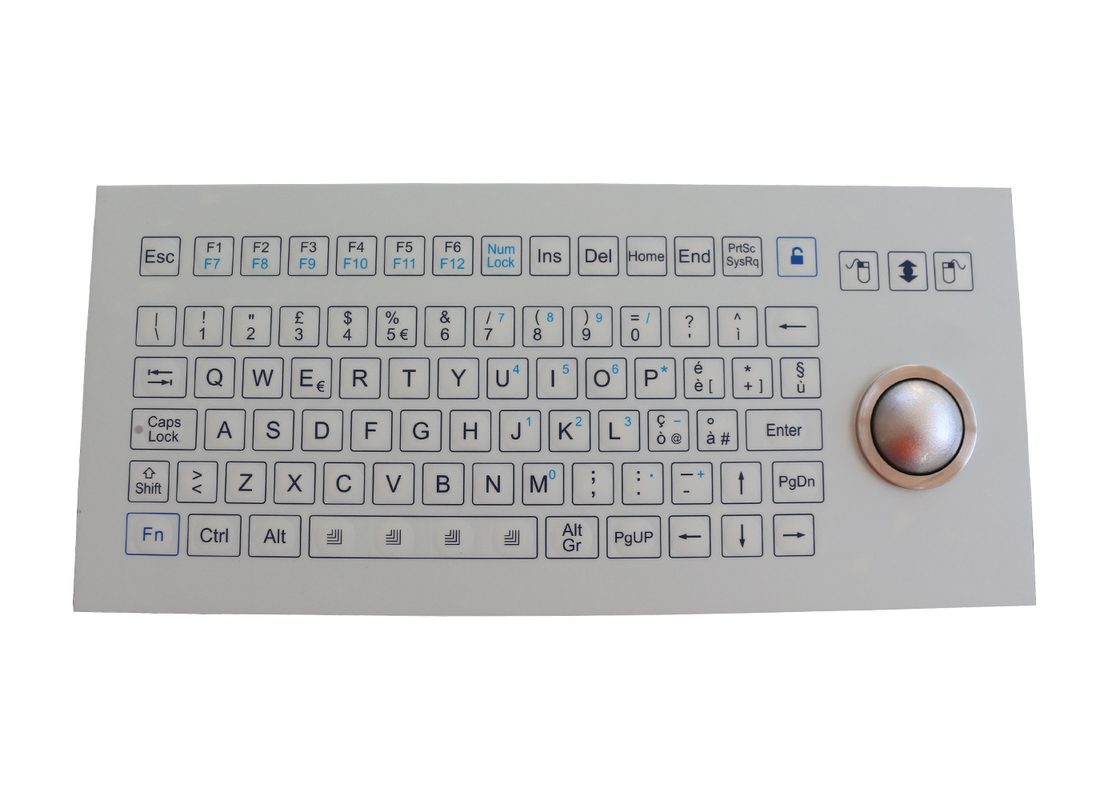

DESCRIPTION: 84 keys compact format IP67 dynamic rated industrial membrane keyboard with function keys on the upper line & integrated IP68 dynamic rated washable 38.0mm optical trackball module with 800 DPI resolutions for fast and accurate cursor position, 2.0mm thickness industrial PCB OMRON switch technology with short stroke 0.45mm with extremely good tactile feeling for reliable data input, with LOCK key for easy cleaning via lock/disable the entire keyboard without needing to take away the keyboard from PC, surface mounted extremely flush with anti-microbial, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments, the durable fonts printed on the film underneath nnever fade, ruggedized and backed with 3.0mm alumium plate with sand blasting & oxygenation treatment, with top panel mounted solution.



MECHANICAL DATA:

Number of Keys 84 keys
Key switch Technology
OMRON switch technology with short stroke 0.45mm for stable and accurate data input.
Actuation Force
1.4N+/-0.1N for key 11.0mm x 11.0mm (press point)
Key Travel 0.45mm
Key switch Lifetime 1 million operations
Protection Level IP67
Mounting Type Top panel mounting or Desk Top
Operating Temperature -20 °C to +60 °C
Colors 2(white, black)
G.W. 1.50KGs
Key Dimensions (print area) 11.0mm x 11.0mm
Dimensions 333.0mm x 150.0mm (front Panel)



ELECTRICAL DATA:

Supply Voltage +5V DC +/- 5%
Current Rating appr. 100mA
EMC Standard
EN 55032:2015; EN 55035:2017
Lifespan > 5 years
Interface PS2, USB available.
OS All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)
