Marine Military Stainless Steel Keyboard Ruggedized Keyboard With Backlight

Marine Military Stainless Steel Keyboard Ruggedized Keyboard With Backlight
Marine Military Stainless Steel Keyboard Ruggedized Keyboard With Backlight Marine Military Stainless Steel Keyboard Ruggedized Keyboard With Backlight Marine Military Stainless Steel Keyboard Ruggedized Keyboard With Backlight

Large Image :  Marine Military Stainless Steel Keyboard Ruggedized Keyboard With Backlight

Product Details:
Place of Origin: Shenzhen, China
Brand Name: IKB-MKB
Certification: CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Model Number: K-TEK-M390TP-FN-BL-NV-151B-BT-DT-DWP
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: To be quoted
Packaging Details: Each keyboard to one box, several boxes to one carton.
Delivery Time: ASAP Within 2-3 weeks upon payment confirmed
Payment Terms: Full payment in advance, Western Union, T/T, Paypal
Supply Ability: 3000psc/month

Marine Military Stainless Steel Keyboard Ruggedized Keyboard With Backlight

Description
Keycap: Durable Polymer Keys Keys: 91 Keys
Interface: USB Protection Level: IP68
Vandal Resistant: IK09 Operating Temperature: -40℃ To +85℃
High Light:

Marine Stainless Steel Keyboard

,

IK09 Ruggedized Keyboard

,

Stainless Steel Ruggedized Keyboard

Stainless Steel Marine Keyboard Military Pcb With Backlight Ruggedized Touchpad Keyboard

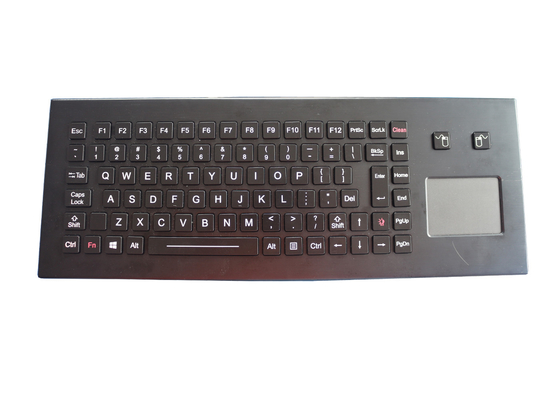

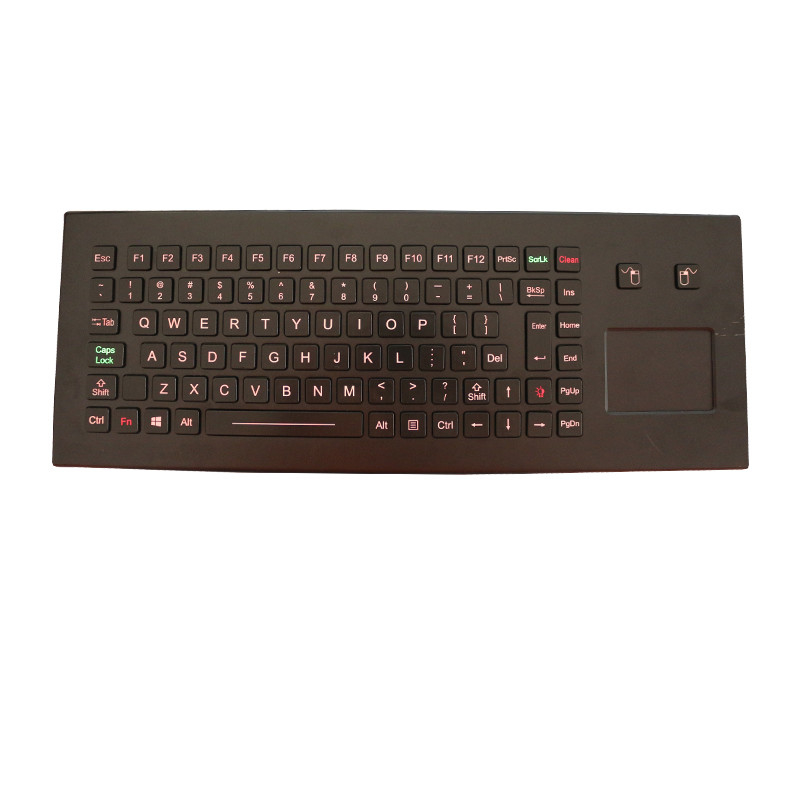

DESCRIPTION: 91 keys compact format IP68 dynamic water proof vandal proof stainless steel military keyboard with durable polymer keys, with IP65 dynamic sealed & ruggedized tough touchpad for fast and accurate cursor position, function keys F1, F2, ...F12 are on the top line for easy operation, sealed and ruggedized military PCB with carbon-on-gold key switch technology with stroke 1.50mm with extremely good tactile feeling for fast and accurate data input without any noise, high quality durable black titanium electroplated on whole keyboard plate and housing. Movable stand alone DESK TOP VERSION. FN + CLEAN key to lock/disable the keyboard for easy cleaning without taking away the keyboard from PC. Red/ white backlight is included. Aviation plug or USB interface is optional. Meet MIL-STD-461G with EMC (Electro Magnetic Compatibility) & MIL-STD-810F (wide temperature, shock, vibration,humidity etc.) Which is good for outdoor application with direct rain and very harsh environmentes with humidity,much dynamic water,oil,dirt,salt mist etc.



MECHANICAL DATA

Actuator/keys: 91 keys, durable and robust polymer keys.

Key top style: Protuberant rectangular keys, laser engraved & etched legends & raised Braille on keys are available

Key Size: 14.0mm x 14.0mm for normal keys, 13.5mm x 31.5mm for enter key, 13.5mm x 85.5mm for space bar.

Key travel: 1.50mm

Actuation Force: 1.8N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 2.5 N+/-0.10N for key 13.5mm x 31.5mm (pressure point)

Switch life: more than 5 million of operations.

Front Plate: 1.5mm thickness super quality brushed stainless steel

Back Plate:1.2mm thickness super quality brushed stainless steel

Touchpad: sealed and ruggedized tough touchpad.

Touchpad cover: Composite
More than Lifetime 10 million strokes
Mutual Capacitance sensing
X/Y position sensing resolution: 40 counts/mm
X/Y position reporting: Relative

Output (self-detectable depending on cable): USB
Tracking speed: Maximum 1,016 m/sec
Power supply voltage: 5VDC ± 0.25V
Current rating (active mode): 17 mA

Dimensions: 390.0mm x 145.0mm x21.5 (L*W*H)



ELECTRICAL DATA

Supply Voltage: +5V DC +/-5%

Current Rating: appr. 300mA

EMC Standard: EN 55032:2015, EN 55035:2017

Lifespan > 5 years

Switch Contact Material: Carbon-on-Gold key switch technology PCB.

Interface: USB

OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).





ENVIRONMENTAL ADAPTABILITY

Operating temperature: -40℃ to +85℃

Storage temperature: -45℃ to +90℃

Operating RH: 30-90%

Atmospheric pressure: 60-106Kpa.

Saline mist: 96 hours, IEC 60512-6

Damp heat test at + 40oC: 21 days, IEC 60512-6

Dry heat test at + 85oC: 10 days, IEC 60512-6





RELIABILITY

RoHS Compliant, CE and FCC, ESD

Protection Level: IP68

Vandal resistant IK09

Key Lifespan >5 million actuation.

MTBF >20000H

MTTR <30min



Marine Military Stainless Steel Keyboard Ruggedized Keyboard With Backlight 0

Marine Military Stainless Steel Keyboard Ruggedized Keyboard With Backlight 1

Marine Military Stainless Steel Keyboard Ruggedized Keyboard With Backlight 2



Marine Military Stainless Steel Keyboard Ruggedized Keyboard With Backlight 3 Marine Military Stainless Steel Keyboard Ruggedized Keyboard With Backlight 4
