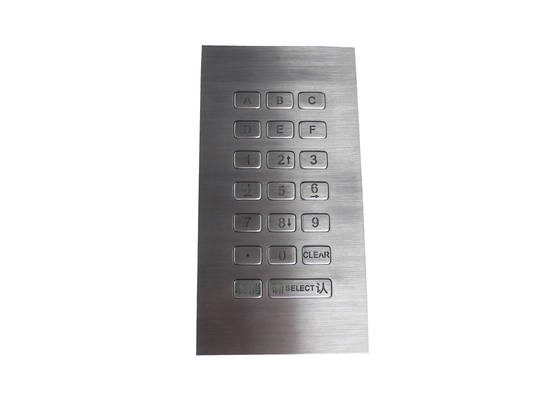

Backlight Stainless Steel Keypad 20 Buttons Metal Numeric Keypad

Large Image : Backlight Stainless Steel Keypad 20 Buttons Metal Numeric Keypad

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	IKB-MKB
Certification:	CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Model Number:	B123KP-20-BL-DWP

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	To be quoted
Packaging Details:	Each keyboard to one box, several boxes to one carton.
Delivery Time:	ASAP Within 2-3 weeks upon payment confirmed
Payment Terms:	Full payment in advance, Western Union, T/T, Paypal
Supply Ability:	3000psc/month

Contact Now

Backlight Stainless Steel Keypad 20 Buttons Metal Numeric Keypad

Description

Panel Mounting:	Top Panel Mounting	Keys:	20 Keys
Backlit:	Red/blue/white/green Optional	Material:	Stainless Steel
DIMENSIONS::	123.0mm X 237.0mm (front Panel)	Interface:::	PS2, USB, RS232, RS485 Available
High Light:	IP67 Backlight stainless steel keypad , stainless steel keypad compact format , 20 Buttons Metal Numeric Keypad

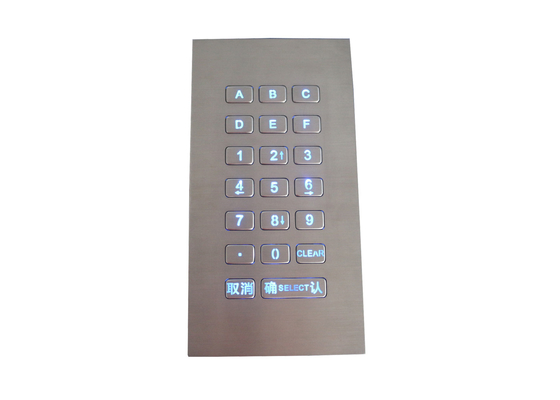

Stainless Steel Backlight Key Pad 20 Buttons Metal Numeric Keypad

DESCRIPTION: 20 keys compact format IP67 dynamic water proof and vandal proof Stainless Steel industrial keypad with industrial electronics controller shielded and protected via stainless steel housing, industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, stainless steel key caps etched out via special professional way and filled

with transparent epoxy for backlight out, with industrial backlight included(Red/blue/white/green optional),top stainless steel plate with welded studs and water-tigth gasket for easy mounting and tightening to enclosure or panel with top panel mounting solution.Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc.

DIMENSIONS: 123.0mm x 237.0mm (front panel)

ELECTRICAL DATA

Supply Voltage: +5V DC +/-5%

Current Rating: appr. 150mA

EMC Standard: EN 55032:2015 EN 55035:2017

Lifespan > 5 years

Switch Contact Material: Gold-on-Gold key switch technology PCB.

Interface: PS2, USB, RS232, RS485 available

OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)

MECHANICAL DATA

Front plate: Super quality SUS304 brushed stainless steel

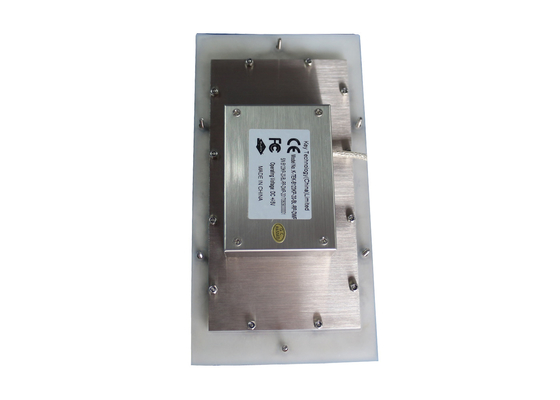

Back plate: Super quality SUS304 stainless steel

Actuator/Key: 20 keys, super quality SUS304 brushed stainless steel

Key top style: protuberant rectangular keys, with laser engraved and etched legends and raised dots available.

Key size: 14.0mm x 21.0mm for normal key, 14.0mm x 46.0mm for enter key.

Switching material: Gold-on-Gold.

Actuation Force: 4.0N+/-0.1N for key 14.0mm x 21.0mm (pressure point)

Key Travel: 0.45mm.

Key life: more than 1 million of operations

Dimensions: 123.0mm x 237.0mm.

G.W. 0.8kg.

ENVIRONMENTAL ADAPTABILITY

Operating temperature:-20oC to +60oC

Storage temperature: -30oC to +70oC

Operating RH: 30-90%

Atmospheric pressure: 60-106Kpa.

Saline mist: 96 hours, IEC 60512-6

Damp heat test at + 40oC: 21 days, IEC 60512-6

Dry heat test at + 85oC: 10 days, IEC 60512-6

RELIABILITY

ROHS Compliant, CE and FCC, ESD

Protection Level: IP67 (front panel)

Vandal resistant IK09

Key Lifespan > 1 million actuations

MTBF > 20000H

MTTR < 30min

APPLICATION

This Keypad is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.
