Product Details:
|
| Material: | Metal Stainless Steel | Colour: | Brushed Stainless Steel |
|---|---|---|---|
| Interface: | PS2, USB, RS232, RS485 Available | Key Travel: | 2mm Long Stroke |
| Panel: | Top Panel Mounting | ||
| High Light: | Durable metal numeric keypad,16 Keys metal numeric keypad,Backlit Brushed stainless steel keypad |
||

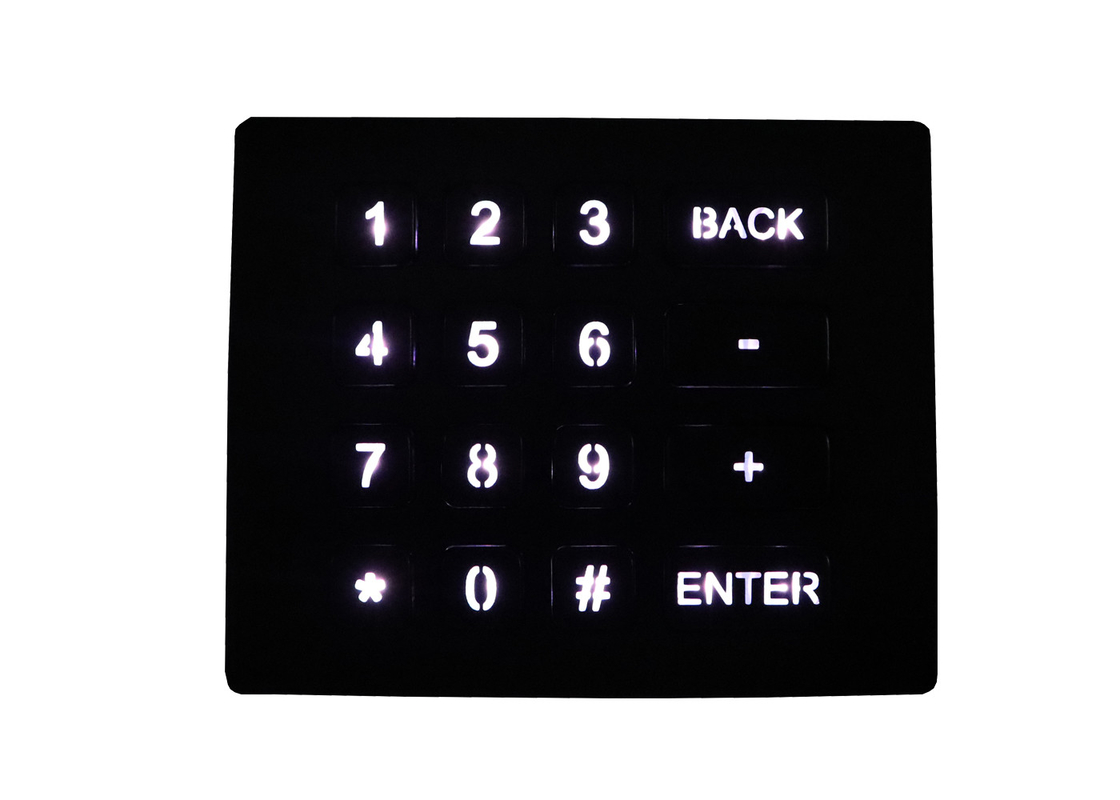

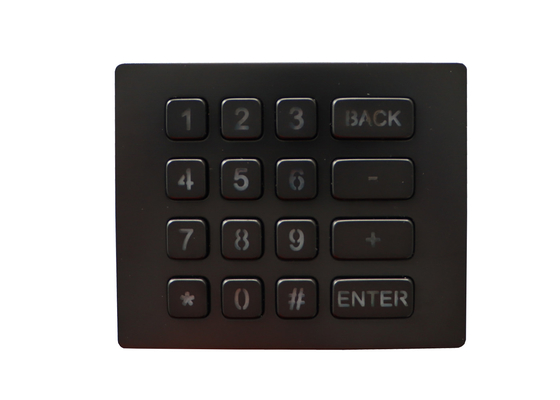

Durable 16 Keys Backlit Brushed Steel Numeric Keypad Industrial Pcb
DESCRIPTION:16 keys compact format IP67 dynamic water proof and vandal proof stainless steel industrial keypad with fully sealed industrial PCB with industrial electronics controller shielded & protected by stainless steel housing, with industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise, high quality scratch-proof black titanium electroplated on front stainless steel plate and keys, top stainless steel plate with welded studs and water-tight gasket for easy mounting and tightening to enclosure or panel. Industrial Backlight included, stainless steel keys etched out via professional way and filled with transparent epoxy for backlight out. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc.
|
ELECTRICAL DATA
Supply Voltage: +5V DC +/-5%
Current Rating: appr. 150mA
EMC Standard: EN 55032:2015 EN 55035:2017
Lifespan > 5 years
Switch Contact Material: Carbon-on-Gold key switch technology PCB.
Interface: PS2, USB, RS232, RS485 available
OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)
|
|
MECHANICAL DATA
Front Plate: 1.5mm thickness super quality brushed stainless steel

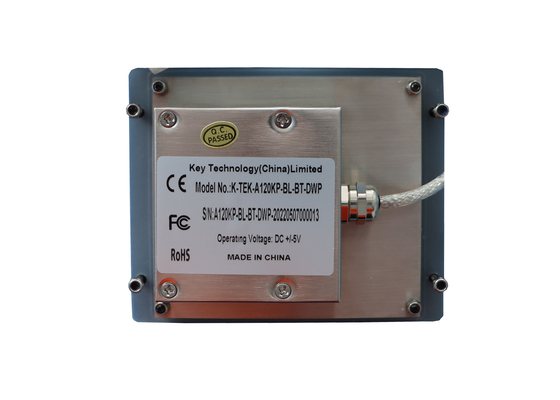

Back plate: 1.0mm thickness super quality stainless steel
Actuator/Key: 16 keys, super quality SUS304 brushed stainless steel
Key top style: protuberant rectangular keys, with laser engraved and etched legends and raised dots available.
Key size: 14.0mm x 14.0mm for normal key, 14.0mm x 28.0mm for function keys
Switching material: Carbon-on-Gold. Actuation Force: 1.2N+/-0.1N (pressure point), 2N+/-0.1N for key 14.0mm x 28.0mm (pressure point)
Key Travel: 2.0mm.
Key life: 5 million of operation
Dimensions: 120.0mm x 98.0mm
G.W. 0.80KGs.
|
|
ENVIRONMENTAL ADAPTABILITY
Operating temperature:-20oC to +60oC
Storage temperature: -30oC to +70oC
Operating RH: 30-90%
Atmospheric pressure: 60-106Kpa.
Saline mist: 96 hours, IEC 60512-6
Damp heat test at + 40oC: 21 days, IEC 60512-6
Dry heat test at + 85oC: 10 days, IEC 60512-6
|
|
RELIABILITY
RoHS Compliant, CE and FCC, ESD
Protection Level: IP67(front panel)
Vandal resistant IK08
Key Lifespan > 5 million actuation
MTBF > 20000H
MTTR < 30min
|
