Embedded Rugged Backlit USB Keyboard IP67 Kiosk Stainless Steel Industrial Keyboard

Embedded Rugged Backlit USB Keyboard IP67 Kiosk Stainless Steel Industrial Keyboard
Embedded Rugged Backlit USB Keyboard IP67 Kiosk Stainless Steel Industrial Keyboard Embedded Rugged Backlit USB Keyboard IP67 Kiosk Stainless Steel Industrial Keyboard Embedded Rugged Backlit USB Keyboard IP67 Kiosk Stainless Steel Industrial Keyboard

Large Image :  Embedded Rugged Backlit USB Keyboard IP67 Kiosk Stainless Steel Industrial Keyboard

Product Details:
Place of Origin: Shenzhen, China
Brand Name: IKB-MKB
Certification: CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Model Number: K-TEK-A360KP-FN-BL-DWP
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: to be quoted
Packaging Details: Each keyboard to one box, several boxes to one carton.
Delivery Time: ASAP Within 2-3 weeks upon payment confirmed
Payment Terms: Full payment in advance, Western Union, T/T, Paypal
Supply Ability: 3000psc/month

Embedded Rugged Backlit USB Keyboard IP67 Kiosk Stainless Steel Industrial Keyboard

Description
IP Rate: IP67 Keys: 102 Keys
Dimensions: 360.0mm X 145.0mm (front Panel) Interface: USB Or PS/2
Operating Temperature: -20oC To +60oC
High Light:

Embedded Rugged Backlit USB Keyboard

,

IP67 Backlit USB Keyboard

,

Kiosk Stainless Steel Industrial Keyboard

Embedded IP67 Waterproof Stainless Steel Rugged Keyboard Backlight for Information Kiosk



DESCRIPTION: 102 keys compact format IP67 dynamic water proof vandal proof stainless steel industrial keyboard with fully sealed and ruggedized industrial PCB electronics controller with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise, with integrated numeric keypad, function keys F1, F2..F10, F11, F12 are on the top panel for easy operation. 1.50mm stainless steel back plate with water-tight gasket for easy and tightened sealing with cabinet or panel, top panel mounting solution. Stainless steel keycaps etched out via special professional way and filled with transparent epoxy for backlight out, with adjustable industrial White backlight included. The full keyboard can be locked/disabled via FN + Clean combination keys for easily cleaning without taking the keyboard away from PC. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.

DIMENSIONS: 360.0mm x 145.0mm (front panel)



Mechanical Data
Actuator/keys:102 keys, super quality SUS304 brushed stainless steel
Key top style: Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar.
Key travel: 2.0mm
Actuation Force: 0.6 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 1.2 N+/-0.1N for key 14.0mm x
28.0mm (pressure point)
Switch life: more than 5 million of operations.
Front Plate: 1.5mm thickness super quality brushed stainless steel
Back Plate: 1.5mm thickness super quality brushed stainless steel
Dimensions: 360.0mm x 145.0mm (front panel)
ELECTRICAL DATA

Supply Voltage: +5V DC +/-5%

Current Rating: appr. 250mA

EMC Standard: EN 55032:2015, EN 55035:2017

Lifespan > 5 years

Switch Contact Material: Carbon-on-Gold key switch technology PCB.

Interface: PS2, USB available,

OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)

ENVIRONMENTAL ADAPTABILITY

Operating temperature: -20℃ to +60℃

Storage temperature: -30℃ to +70℃

Operating RH: 30-90%

Atmospheric pressure: 60-106Kpa.

Saline mist: 96 hours, IEC 60512-6

Damp heat test at + 40oC: 21 days, IEC 60512-6

Dry heat test at + 85oC: 10 days, IEC 60512-6

RELIABILITY

RoHS Compliant, CE and FCC, ESD

Protection Level: IP67

Vandal resistant IK08

Key Lifespan >5 million actuation.

MTBF >2000

MTTR <30min



Product Picture:

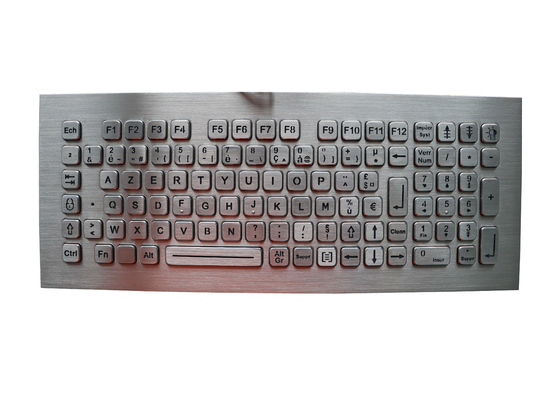

Embedded Rugged Backlit USB Keyboard IP67 Kiosk Stainless Steel Industrial Keyboard 0

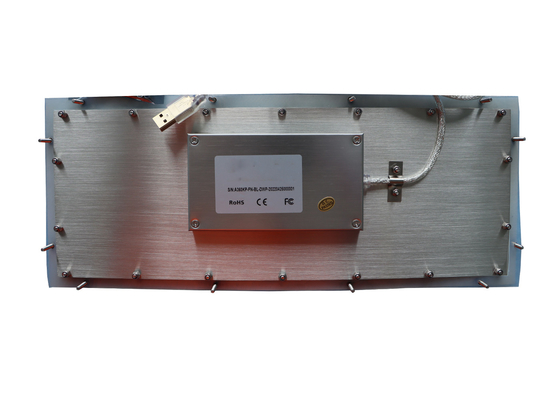

Embedded Rugged Backlit USB Keyboard IP67 Kiosk Stainless Steel Industrial Keyboard 1

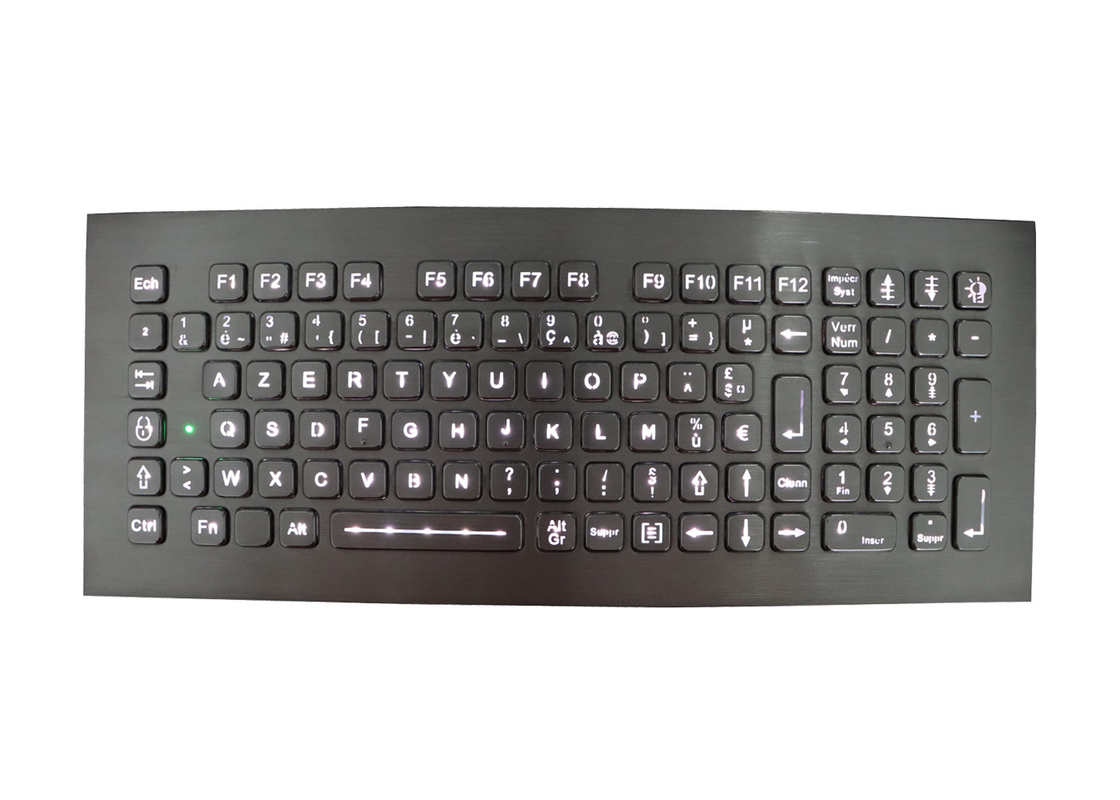

Embedded Rugged Backlit USB Keyboard IP67 Kiosk Stainless Steel Industrial Keyboard 2
