Product Details:
|
| Material: | Stainless Steel | Keys: | 102 Keys |
|---|---|---|---|
| Interface: | USB Or PS/2 Available | Key Travel: | 2.0 Mm Long Stroke |
| Name: | Panel Mount Keyboard | G.W.: | 1.80KGs |
| High Light: | Explosive Proof Panel Mount Keyboard,Stainless Steel Panel Mount Keyboard,Industrial Stainless Steel Keyboard |
||

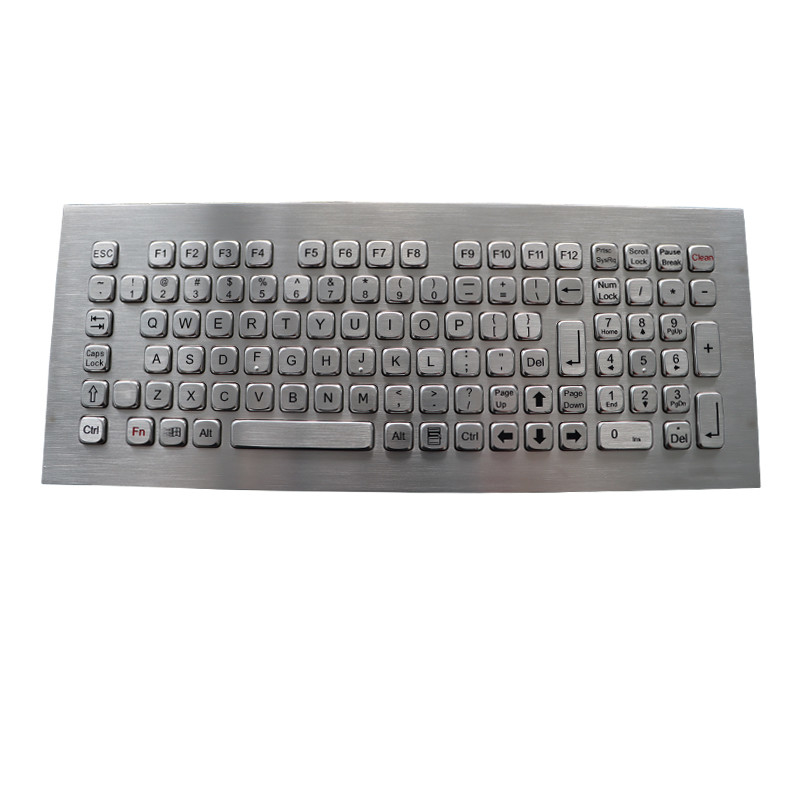

Explosive Proof Panel Mount Keyboard Industrial Stainless Steel Keyboard
DESCRIPTION: 102 keys compact format IP67 dynamic water proof vandal proof stainless steel industrial keyboard with fully sealed and ruggedized industrial PCB electronics controller with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise, with integrated numeric keypad, function keys F1, F2..F10, F11, F12 are on the top panel for easy operation.FN + Clean combination keys to lock and disable the whole keyboard for easy cleaning without needing to take the keyboard away from PC. 1.50mm stainless steel back plate with water-tight gasket for easy and tightened sealing with cabinet or panel, top panel mounting with threaded bolts solution.Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.
DIMENSIONS: 360.0mm x 145.0mm (front panel)
| MECHANICAL DATA | |
| Actuator/keys: | 102 keys, super quality SUS304 brushed stainless steel |
| Key top style: | Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available |
| Key Size: | 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar. |
| Key travel: | 2.0mm |
| Actuation Force: | 1.2 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 2.0 N+/-0.1N for key 14.0mm x 28.0mm (pressure point) |
| Front Plate: | 1.5mm thickness super quality brushed stainless steel |
| Back Stainless steel housing: | 1.5mm thickness super quality stainless steel |
| G.W.: | 1.8KGs |
| Dimensions: | 360.0mm x 145.0mm (front panel) 340.0mm x 125.0mm (back panel) |
| ELECTRICAL DATA | |
| Supply Voltage: | +5V DC +/-5% |
| Current Rating: | appr.30mA |
| EMC Standard: | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Switch Contact Material: | Caobon-on-Gold key switch technology PCB. |
| Interface: | PS2, USB available |
| OS: | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed) |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature: | -20oC to +60oC |
| Storage temperature: | -30oC to +70oC |
| Operating RH: | 30-90% |
| Atmospheric pressure: | 60-106Kpa. |
| Saline mist: | 96 hours, IEC 60512-6 |
| Damp heat test at + 40oC: | 21 days, IEC 60512-6 |
| Dry heat test at + 85oC: | 10 days, IEC 60512-6 |
| RELIABILITY | |
| RoHS Compliant, CE and FCC, ESD | |
| Protection Level: | IP67(front panel) |
| Vandal resistant | IK08 |
| Key Lifespan | >5 million actuation |
| MTBF | >20000H |
| MTTR | < 30min |

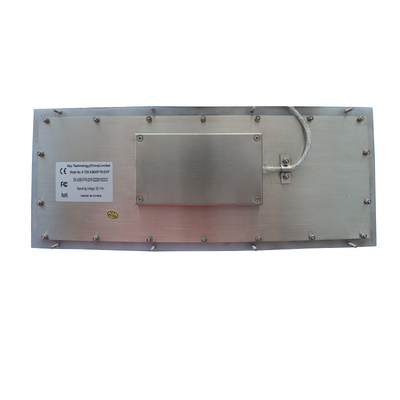

Panel Mount Keyboard More View:
