Product Details:
|
| Material: | Stainless Steel | Backlight: | Blue Or Red |
|---|---|---|---|
| Mounting: | Top Panel With Thread Bolts | Interface: | USB Or PS/2 |
| Protection Level: | IP65 | Vandal Resistant: | IK08 |
| Mouse: | Hula Pointer Mouse | Name: | Backlit USB Keyboard |
Metal Wired Backlit Keyboard Vandal Proof With Hula Pointer Mouse
DESCRIPTION: 86 keys compact format IP65 dynamic washable vandal proof stainless steel industrial keyboard with IP66 dynamic sealed & ruggedized tough hula pointer mouse for fast and accurate cursor position, one complete silicone rubber along 3.0mm thick brushed & oxidized aluminum back plate for easy mounting & sealing tightly with cabinet, industrial PCB with carbon-on-gold key switch technology with long stroke (1.50±0.10mm) with extremely good tactile feeling for fast and accurate data Input without any noise, top panel mounting solution. Which is good for outdoor application with direct rain and harsh environment with humidity, much dynamic water, oil, dirt, salt mist etc. Stainless steel key caps etched out via special professional way and filled with transparent epoxy for backlight out, with adjustable industrial blue or red backlight included.
DIMENSIONS: 361.0mm x 145.0mm (top panel)
| METAL KEYBOARD MECHANICAL DATA | |
| Actuator/keys | 86 keys (including 3 mouse buttons) |
| Key top style | Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available |
| Key Size | 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar |
| Key travel | 1.50±0.10mm |
| Actuation Force | 1.5N±0.2N for key 14.0mm x 14.0mm (pressure point ), 2.5N±0.2N for key 14.0mm x 28.0mm (pressure point) |
| Front Plate | 1.5mm thickness super quality brushed stainless steel |
| Back Plate | 3.0mm thickness brushed & oxidized aluminium |
| Switch life | more than 5 million of operations |
| Hula pointer mouse | IP66 hula pointer mouse |
| G.W. | 2.00KGs |
| ELECTRICAL DATA | |
| Supply Voltage | +5V DC ± 5% |
| Current Rating | 50mA when backlight is off, 300mA with backlight on |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Switch Contact Material | Carbon-on-Gold key switch technology PCB |
| Interface | PS2, USB available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -20℃ to +65℃ |
| Storage temperature | -30℃ to +75℃ |
| Operating RH | 30-90% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| INDUSTRIAL KEYBOARD RELIABILITY | |
| RoHS Compliant, CE and FCC, ESD | |
| Protection Level | IP65 dynamic (front panel) |
| Vandal resistant | IK08 |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc. |

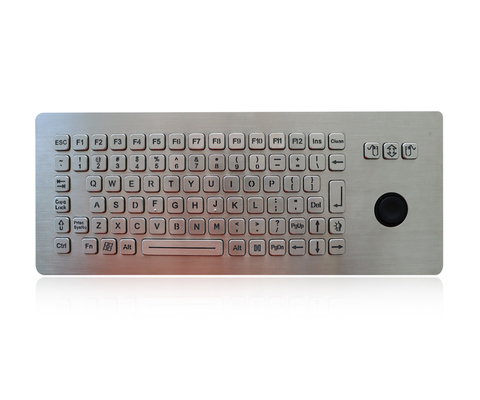

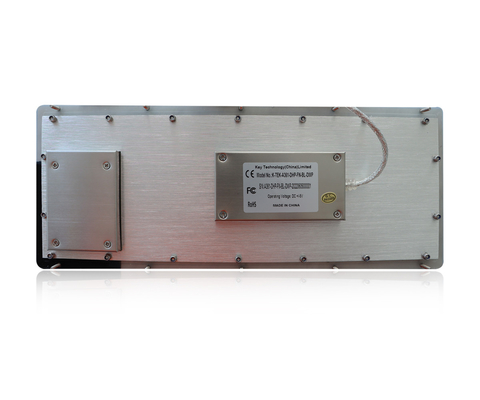

Backlit USB keyboard Actual Photos:

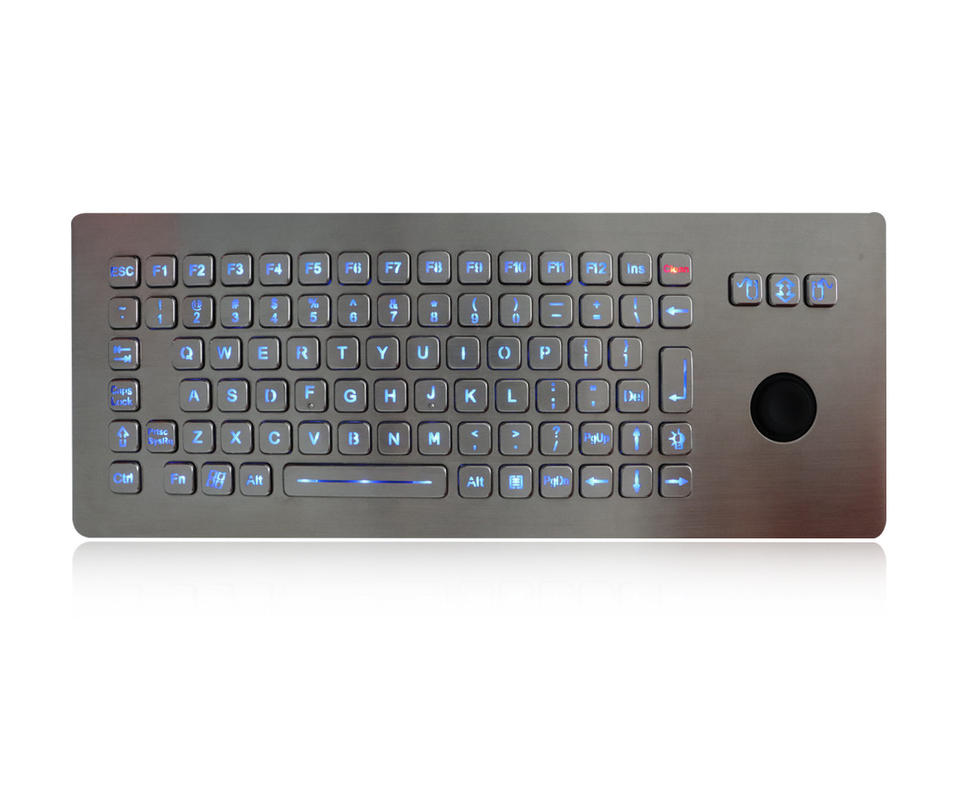

Keyboard with backlight
