Ip68 Fully Sealed Rugged Industrial Metal Keyboard With Resistive Touchpad

Ip68 Fully Sealed Rugged Industrial Metal Keyboard With Resistive Touchpad
Ip68 Fully Sealed Rugged Industrial Metal Keyboard With Resistive Touchpad Ip68 Fully Sealed Rugged Industrial Metal Keyboard With Resistive Touchpad

Large Image :  Ip68 Fully Sealed Rugged Industrial Metal Keyboard With Resistive Touchpad

Product Details:
Place of Origin: Shenzhen, China
Brand Name: IKB-MKB
Certification: CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Model Number: K-TEK-B365-RTP-FN-DT-DWP
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: To be quoted
Packaging Details: Each keyboard to one box, several boxes to one carton.
Delivery Time: ASAP Within 2 weeks upon payment confirmed
Payment Terms: Full payment in advance, Western Union, T/T, Paypal
Supply Ability: 3000psc/month

Ip68 Fully Sealed Rugged Industrial Metal Keyboard With Resistive Touchpad

Description
Material: Stainless Steel Mounting: Desk Top Version
Key: 85 Keys Touchpad: Resistive Touchpad
Key Travel: 0.45mm Short Stroke Name: Industrial Keyboard With Touchpad
High Light:

ip68 industrial metal keyboard

,

fully sealed industrial metal keyboard

,

rugged keyboard with resistive touchpad

 IP68 Fully Sealed And Rugged Structure Industrial Metal Keyboard With Resistive Touchpad



1: 85 keys compact format IP68 dynamic sealed and ruggedized vandal proof stainless steel industrial keyboard with IP65
dynamic sealed & ruggedized tough resistive touchpad with scroll function (optional) for fast and accurate cursor position

2: Functional keys F1, F2, F3…F10, F11, F12 are on the top line for easy operation,

3: Industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for
stable and accurate data input,

4: Movable stand alone DESK TOP VERSION,or mountable desktop with mounting holes on the bottoms for fixing.

5: Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt,
salt mist etc, no rust risk and anti-salt spray corrosion.



DIMENSIONS: 365.0mm x 155.0mm x 26.5mm (L x W x H)

Application:
-This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications.
- internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations
-Other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.

MECHANICAL DATA:
Actuator/keys: 85 keys, super quality SUS304 brushed stainless steel
Key top style: Non-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key
Actuation Force: 1.2 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 2.0 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)
Switch life: more than 1 million of operations.
G.W.: 3.0KGs
Dimensions:
365.0mm x 155.0mm x 26.5mm (L x W x H)
ELECTRICAL DATA :
Supply Voltage: +5V DC +/-5%
Current Rating: appr. 50mA
EMC Standard: EN 55032:2015, EN 55035:2017
Lifespan > 5 years
Switch Contact Material: Gold-on-Gold key switch technology PCB
Interface: PS2, USB available
OS: All Windows, Linux, Unix, Mac OSX, Android
RELIABILITY:
RoHS Compliant, CE and FCC, ESD
Protection Level: IP68(front panel)
Vandal resistant IK09
Key Lifespan >1 million actuations
MTBF

>20000H

MTTR <30min
ENVIRONMENTAL ADAPTABILITY :
Operating Temperature: -20oC to +60oC
Storage Temperature: -30oC to +70oC
Operating RH: 30-90%
Atmospheric Pressure: 60-106Kpa
Saline mist: 96 hours, IEC 60512-6
Damp heat test at +40oC: 21 days, IEC 60512-6
Dry heat test at + 85oC: 10 days, IEC 60512-6





Industrial Keyboard Actual Photos:

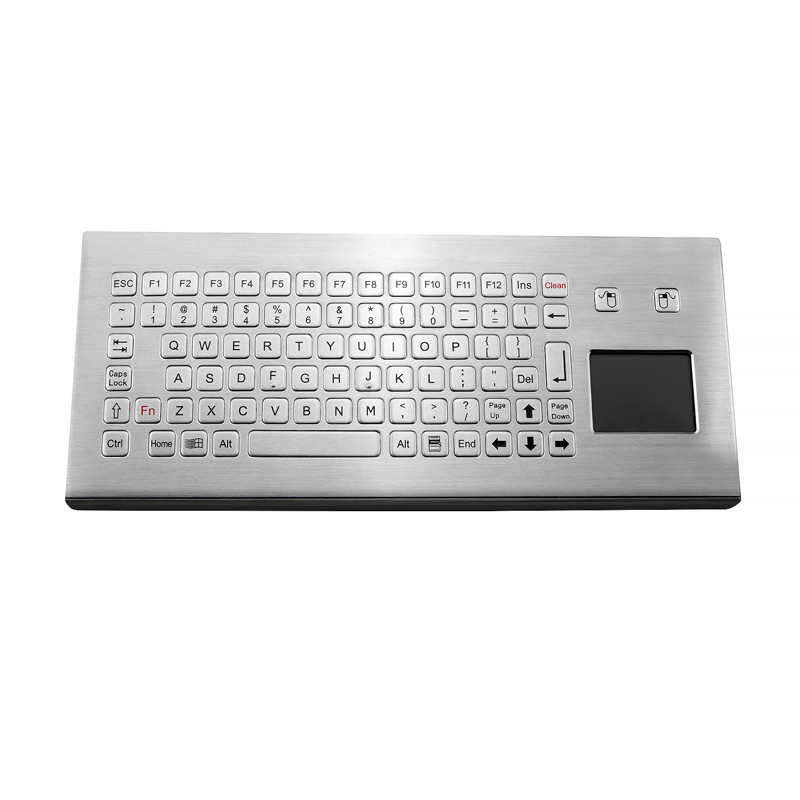

                                                          Keyboard without backlight

Ip68 Fully Sealed Rugged Industrial Metal Keyboard With Resistive Touchpad 0

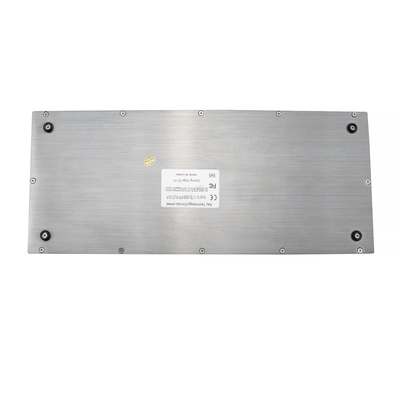

                                                         Back View

Ip68 Fully Sealed Rugged Industrial Metal Keyboard With Resistive Touchpad 1
Ip68 Fully Sealed Rugged Industrial Metal Keyboard With Resistive Touchpad 2



                                 FAQ

Q: Are you trading company or manufacturer ?

A: We are a professional manufacturer for industry/military/medical/vehicle keyboards.


Q: How long is your delivery time?

A: Generally it is 1-2 Weeks after payment is received. If larger quantity, delivery time would be 3-5 weeks.


Q: Do you provide samples ?

A: Yes, we could offer the sample of one quantity first before large quantity orders.


Q: What is your terms of payment ?

A: 100% payment via Paypal T/T, Western Union or Alibaba Trade Assurance.
If you have another question, pls feel free to contact us.
