Product Details:
|
| Material: | Stainless Steel | Backlight: | White Or Red |
|---|---|---|---|
| Mounting: | Top Panel With Thread Bolts | Interface: | USB Or PS/2 |
| Protection Level: | IP67 | Vandal Resistant: | IK08 |
| Name: | Backlit Industrial Keyboard | Touchpad: | Optional |
| High Light: | rugged backlit usb keyboard,74 keys backlit usb keyboard,backlit usb stainless steel keyboard |
||
74 Keys Rugged Backlit USB Keyboard With Optical Trackball Top Panel Mount Solution
DESCRIPTION:
Application:
-This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications.
- internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations
-Other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.
| BACKLIT USB KEYBOARD MECHANICAL DATA: | |
| Actuator/keys: | 71 keys, super quality SUS304 brushed stainless steel |
| Key top style: | Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available |
| Key Size: | 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar. |
| Actuation Force: | 1.2 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 2.0 N+/-0.1N for key 14.0mm x 28.0mm (pressure point) |
| Switch life: | more than 5 million of operations. |
| Front Plate: | 1.5mm thickness super quality brushed stainless steel |
| Back Plate: | 3.0mm thickness brushed & oxidized aluminium |
| Tracker ball: | IP68 dynamic 800DPI optical trackball |
| G.W.: | 1.80KGs |
| Dimensions: | 361.0mm x 125.0mm (front panel) , 343.0mm x 105.0mm (back panel) |
| ELECTRICAL DATA : | |
| Supply Voltage: | +5V DC +/-5% |
| Current Rating: | appr. 300mA |
| EMC Standard: | EN 55032:2015, EN 55035:2017 |
| Lifespan | > 5 years |
| Switch Contact Material: | Carbon-on-Gold key switch technology PCB |
| Interface: | PS2, USB available |
| OS: | All Windows, Linux, Unix, Mac OSX, Android |
| RELIABILITY: | |
| RoHS Compliant, CE and FCC, ESD | |
| Protection Level: | IP67(front panel) |
| Vandal resistant | IK08 |
| Key Lifespan | >5 million actuations |
| MTBF |
>20000H |
| MTTR | <30min |
| ENVIRONMENTAL ADAPTABILITY : | |
| Operating Temperature: | -20oC to +60oC |
| Storage Temperature: | -30oC to +70oC |
| Operating RH: | 30-90% |
| Atmospheric Pressure: | 60-106Kpa |
| Saline mist: | 96 hours, IEC 60512-6 |
| Damp heat test at +40oC: | 21 days, IEC 60512-6 |
| Dry heat test at + 85oC: | 10 days, IEC 60512-6 |

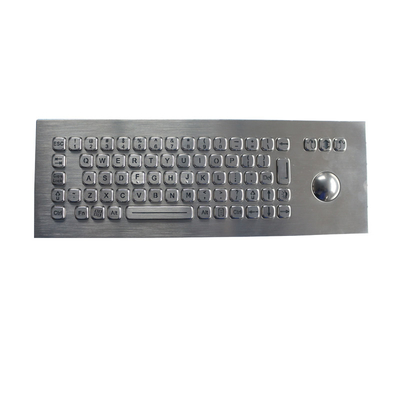

Actual Photos:

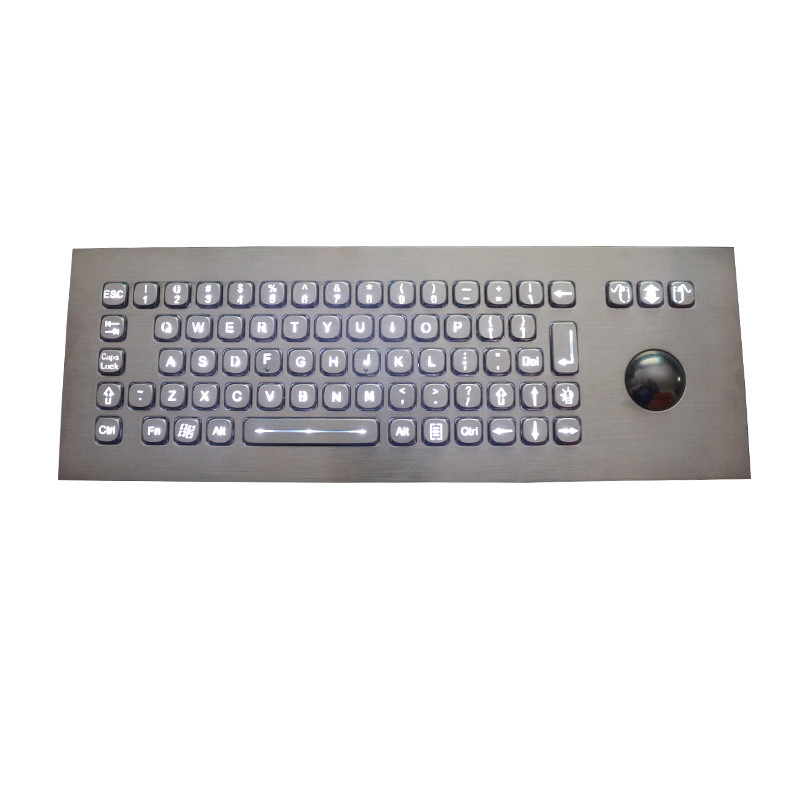

Keyboard with backlight

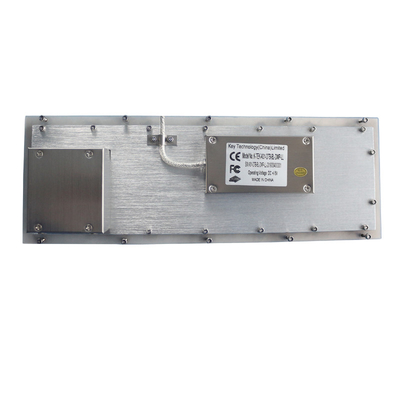

Back View
Q: Are you trading company or manufacturer ?
A: We are a professional manufacturer for industry/military/medical/vehicle keyboards.
Q: How long is your delivery time?
A: Generally it is 1-2 Weeks after payment is received. If larger quantity, delivery time would be 3-5 weeks.
Q: Do you provide samples ?
A: Yes, we could offer the sample of one quantity first before large quantity orders.
Q: What is your terms of payment ?
A: 100% payment via Paypal T/T, Western Union or Alibaba Trade Assurance.
If you have another question, pls feel free to contact us.
