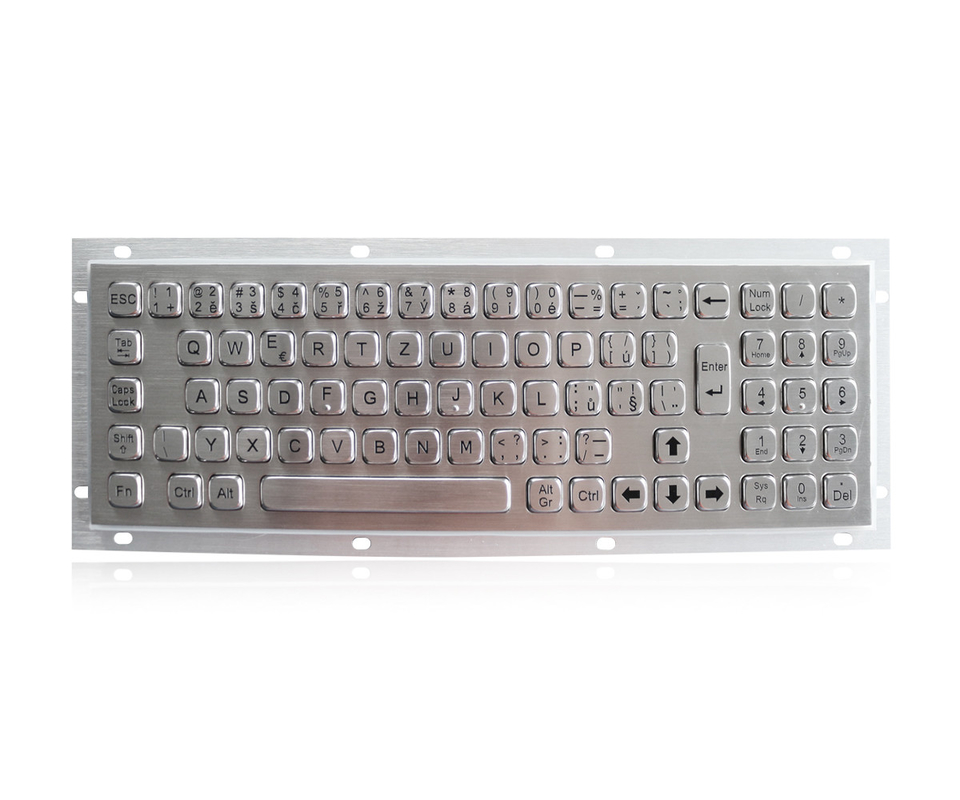

79 keys mini stainless steel metal kiosk keyboard with numeric keypad
Special Features:
1. 79 keys compact format IP65 dynamic vandal proof stainless steel industrial keyboard
2. industrial PCB with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise
3. with integrated numeric keypad.
4. rear mounting solution.
5. Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.
6. Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.

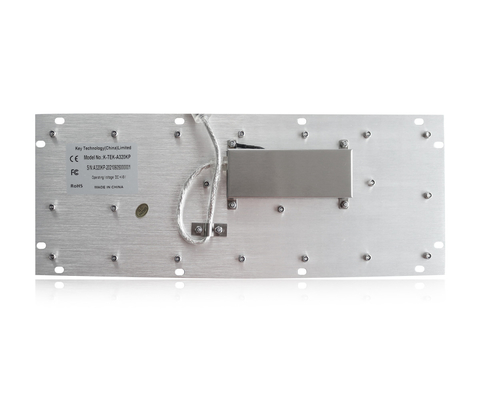

7. Waterproof execution according to IP65 protection from top panel, rear aluminium plate with mounting holes easily & tightly mounting to enclosure or panel.
8. An excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data input without any noise. With firm tactile perception for comfortable operation Internet friendly key layout, key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.
9. Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.
10. Ease of customizing with multiple languages, to accommodate foreign or custom variants.
11.Complete electronic modules including controller in close consultation with our customers are available.
12.PS/2, USB connection plug and play with PC via PC existing OS driver, no needing of install separate driver.
13.The numeric keypad between keyboard and trackball is available with encryption module supporting DES/TDES for bank usage of CDM/ATM.
| MECHANICAL DATA |
| Actuator/keys |
79 keys |
| Key top style |
Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available |
| Key Size |
14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 100.0mm for space bar |
| Key travel |
1.50±0.10mm |
| Actuation Force |
3.5N±0.2N for key 14.0mm x 14.0mm (pressure point ), 7.0N±0.4N for key 14.0mm x 28.0mm (pressure point) |
| Switch life |
more than 5 million of operations |
| G.W. |
1.20KGs |
| ELECTRICAL DATA |
| Supply Voltage |
+5V DC ± 5% |
| Current Rating |
30mA |
| EMC Standard |
EN 55032:2015 EN 55035:2017 |
| Lifespan |
> 5 years |
| Switch Contact Material |
Carbon-on-Gold key switch technology PCB |
| Interface |
PS2, USB available |
| OS |
All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY |
| Operating temperature |
-20℃ to +65℃ |
| Storage temperature |
-30℃ to +75℃ |
| Operating RH |
30-90% |
| Atmospheric pressure |
60-106Kpa |
| Saline mist |
96 hours, IEC 60512-6 |
| Damp heat test at +40℃ |
21 days, IEC 60512-6 |
| Dry heat test at +85℃ |
10 days, IEC 60512-6 |
| RELIABILITY |
| RoHS Compliant, CE and FCC, ESD |
| Protection Level |
IP65 |
| Vandal resistant |
IK08 |
| Key Lifespan |
>5 million actuations |
| MTBF |
>20000H |
| MTTR |
<30min |
| APPLICATIONS |
Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc. |
