Product Details:
|
| Material: | Industrial Membrane | Keys: | 105 Keys |
|---|---|---|---|
| Interface: | USB Or PS/2 | Numeric Keypad: | Yes |
| Mounting: | Top Panel Mounting | GW: | 1.50KGS |
| Dimensions: | 410.0mm X 160.0mm | Colour: | Black Or White |

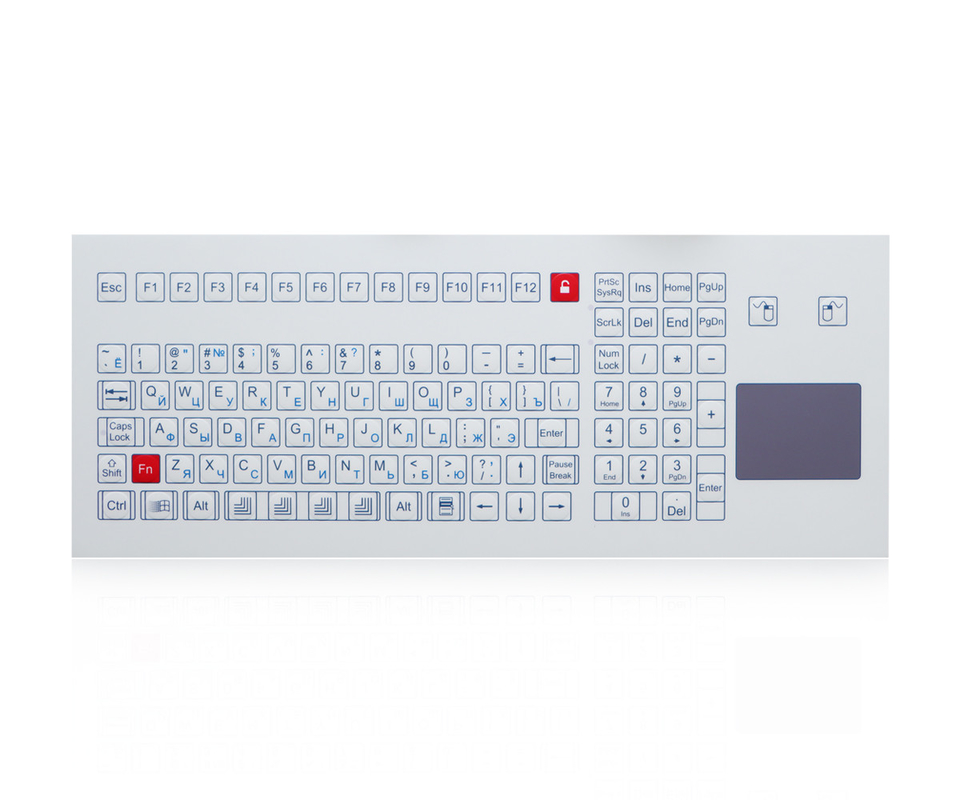

| High Light: | 105 keys industrial membrane keyboard,russia layout industrial membrane keyboard,105 keys membrane switch keyboard |
||
DIMENSIONS: 410.0mm x 160.0mm (top panel)
| MECHANICAL DATA | |
| Number of Keys | 105 keys (including 2 mouse buttons) |
| Key switch Technology | OMRON switch technology with short stroke 0.45mm for stable and accurate data input |
| Actuation Force | 2.0N±0.2N (press point) |
| Key Travel | 0.45±0.05mm |
| Key switch Lifetime | 1 mil. operations |

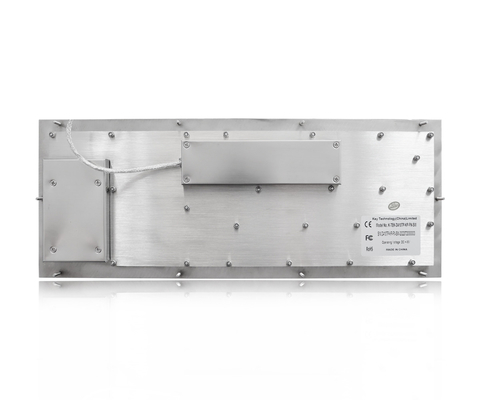

| Mounting Type | Top panel mounting. |
| Colors | 3 (white, black, grey) |
| G.W. | 1.50KGs |
| Key Dimensions (print area) | 14.0mm x 14.0mm |
| Touch pad | sealed and ruggedized tough touchpad |
| Touchpad cover | Composite |
| Method | capacitive |
| More than Lifetime 10 million strokes | |
| Mutual capacitance sensing | |
| X/Y axis location detection resolution | 40 Counts /mm |
| X/Y position report | relative |
| Output (self-detectable depending on cable) | PS2 or USB |
| Tracking speed | Maximum 1,016 m/sec |
| Power supply voltage | 5VDC ± 0.25V |
| Current rating (active mode) | < 10 mA |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 50mA |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Interface | PS2, USB available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -20℃ to +65℃ |
| Storage temperature | -30℃ to +75℃ |
| Operating RH | 100% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
| RoHS, CE, FCC | |
| Protection Level | IP65 dynamic |
| Key Lifespan | >1 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Industrial, marine, food and beverage, processing factory, medical and pharmaceutical, numerical control machine etc. |
