Product Details:
|
| Material: | Silicone Rubber | Connection: | USB / PS2 |
|---|---|---|---|
| Application: | Industrial | FN Keys: | Yes |
| Color: | Black | G.W.: | 0.65KGs |
| Name: | Silicone Medical Keyboard | Backlight: | White |
| High Light: | dynamic sealed silicone industrial keyboard,backlight desktop silicone industrial keyboard,ip68 industrial grade silicone keyboard |
||

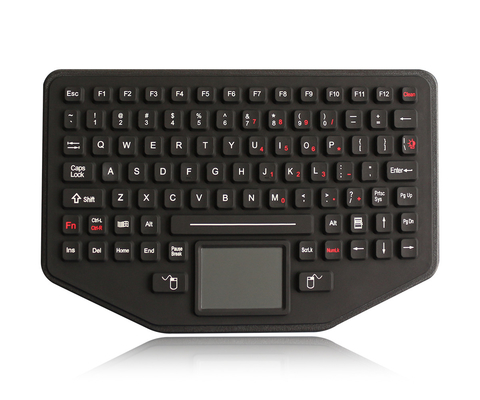

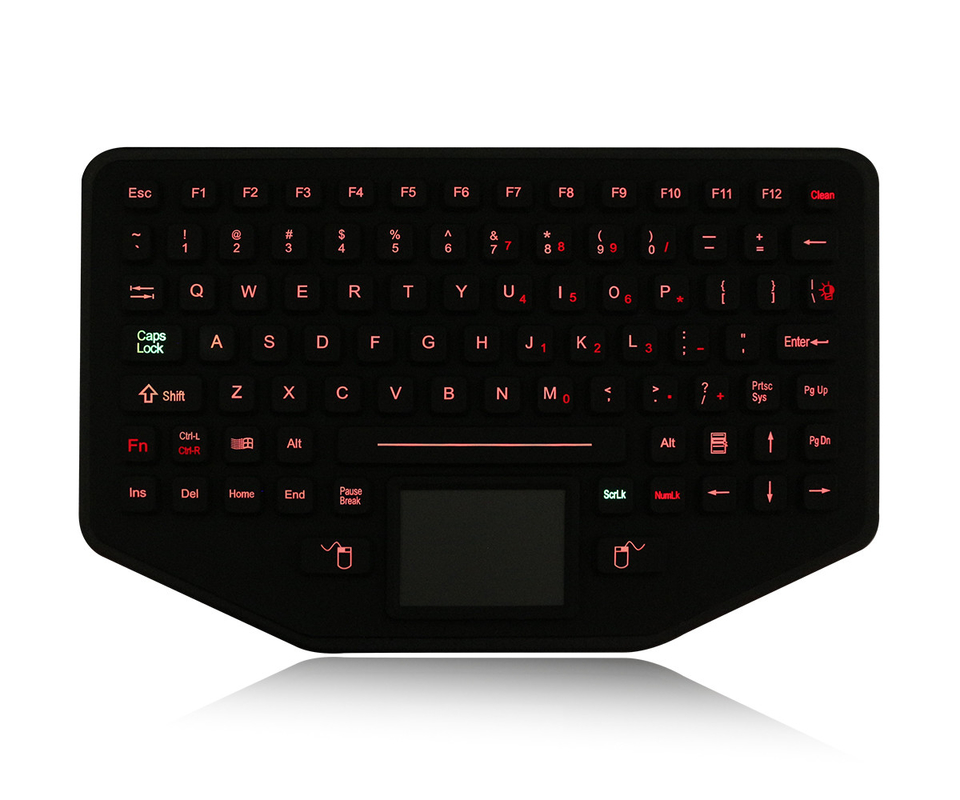

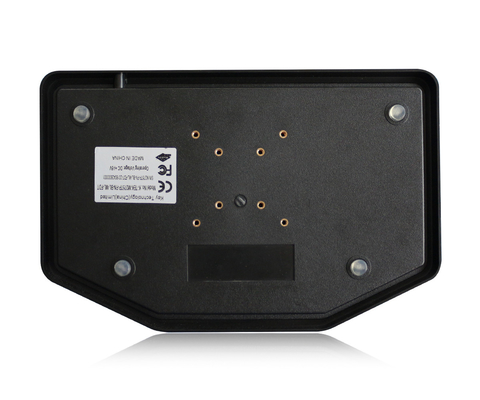

DESCRIPTION: 89 keys IP68 dynamic sealed & ruggedized silicone rubber military keyboard with full keyboard functionalities with sealed & ruggedized tough touchpad for fast and accurate cursor position, 12 FN keys are on the top line for easy operation, with military PCB with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, FN + CLEAN key for easy cleaning via lock/disable the entire keyboard without needing to take the keyboard from PC, VESA mountable super flat desk top version with robust ABS polycarbonate case, military level. Adjustable backlight included.
Dimensions: 296.16.mm x 192.00mm x 17.55mm(L x W x H)
| MECHANICAL DATA | |
| Keys | 89 keys |
| Key top style | Protuberant rectangular keys with tactile feeling |
| Key Size | 12.0mm x 13.0mm for normal keys, 23.4mm x 13.0mm for enter key, 68.0mm x 13.0mm for space bar key |
| Key travel | 1.50mm |
| Actuation Force | 1.5N±0.2N (pressure point ) |
| Switch life | more than 5 million of operations |
| Touch pad | sealed and ruggedized tough touchpad |
| Touchpad cover | Composite |
| More than Lifetime 10 million strokes | |
| Mutual capacitance sensing | |
| X/Y axis location detection resolution | 40 Counts /mm |
| X/Y position report | relative |
| Output (self-detectable depending on cable) | PS2 or USB |
| Tracking speed | Maximum 1,016 m/sec |
| Power supply voltage | 5VDC ± 0.25V |
| Current rating (active mode) | < 10 mA |
| G.W. | 1.00KGs |
| ELECTRICAL DATA | |
| Supply Voltage | +5V DC +/-5% |
| Current Rating | 50mA when backlight is off, 300mA with backlight on |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Switch Contact Material | Carbon-on-Gold key switch technology with gold PCB |
| Interface | PS2, USB available |
| Cable lengh | Standard 2.0m, customized length available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android. |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -40℃ to +75℃ |
| Storage temperature | -45℃ to +85℃ |
| Operating RH | 100% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| Shock | 3x11 ms pulses of 50g on each of 3 axes |
| Vibration | POWER SPECTRAL DENSITY: 0.04g/Hz, FREQUENCY RANGE: 20Hz - 2kHz, DURATION OF TEST PER AXIS: 3 hours |
| RELIABILITY | |
| RoHS, CE, FCC | |
| Protection Level | IP68 |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |
