Product Details:
|
| Connection: | USB / PS2 | Application: | Industrial |
|---|---|---|---|
| FN Keys: | Yes | Color: | Black |
| G.W.: | 0.35KGs | Name: | Laser Trackball Module |
| High Light: | IPX4 Thumb Ball Module,14.0mm Trackball Module,Mini Laser trackball module |
||

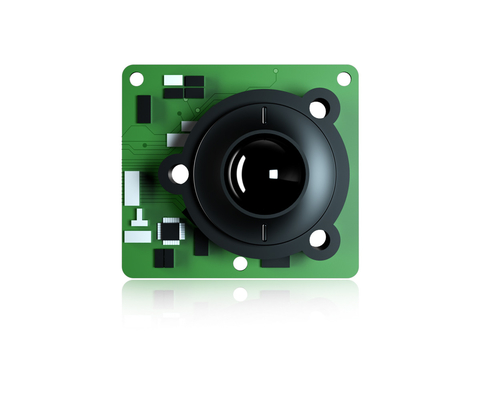

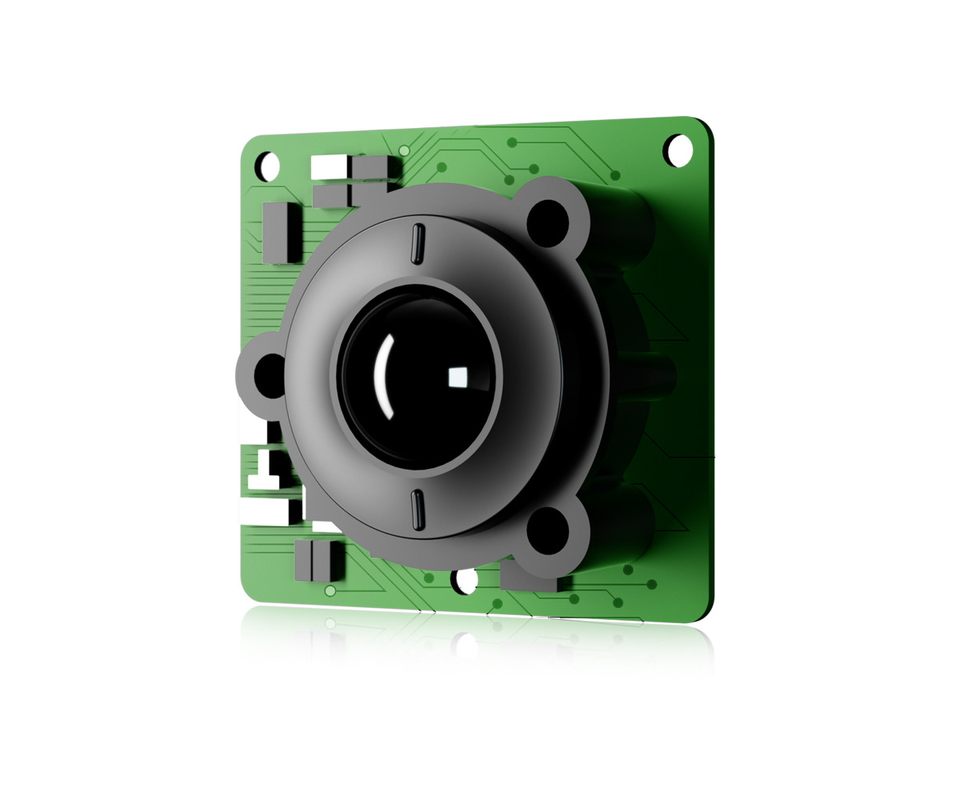

DESCRIPTION: 14.0mm IPX4 static rated waterproof MINI laser thumb ball module with 600 DPI resolutions for fast and accurate cursor movement. Built-in wide temperature military grade PCB, hardened resin ball with ABS plastic housing for panel mounted solution, with durable coating & antimicrobial surface, it can be used in harsh environments to well withstand bacteria, USB or PS2 interface. Meet MIL-STD-810F with high and low temperature, low pressure, humidity, vibration, shock, temperature shock, drop test etc, as well as designed to meet with critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.
DIMENSIONS: 41.0mm x 37.0mm (L X W)
| MECHANICAL DATA | |
| Mouse | ABS plastic housing+black hardened resin ball module |
| Mouse Switch Technology | Laser sensing |
| Key lifespan | ≤3 millions actuation |
| Trackball diameter | 14.0mm |
| Resolution | 600 DPI |
| Drive pressure | 1.0N-2.0N |
| Roller encoder Lifespan | ≥10 million scrolling |
| MUTUAL CAPACITANCE SENSING | |
| X/Y axis location detection resolution | 40 Counts /mm |
| X/Y position report | relative |
| Power supply voltage | 5V ± 0.25V |
| Current rating | < 17 mA |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | ≈30mA |
| EMC standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Interface | USB or PS2, other interface can be customized |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -40℃ to +55℃ |
| Storage temperature | -45℃ to +60℃ |
| Operating RH | 95% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
| RoHS Compliant, CE and FCC, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.) | |
| Protection Level | IPX4 |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATION | Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas, marine etc. |
