Product Details:
|
| Material: | Silicone Rubber | Keys: | 69 Keys |
|---|---|---|---|
| Interface: | USB | Key Travel: | 1.50mm±0.10mm |
| G.W.: | 0.50KGs | Name: | Rugged Silicone Keyboard |
| Keyword: | Rugged Keyboard, Keyboard With Backlight | Key Switch: | Carbon-on-gold Key Switch Technology |
| Protection Level: | IP65 Dynamic (front Panel) | ||
| High Light: | Embedded Silicone Rubber Keyboard,Rugged Silicone Rubber Keyboard,Military USB Backlit Keyboard |
||
Durable Embedded Silicone Rugged Keyboard USB Backlit Keyboard
RUGGED KEYBOARD DESCRIPTION: 69 keys compact format IP65 dynamic sealed & ruggedized silicone rubber military keyboard with 12 function keys on top line for easy operation, with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise or mistyping, with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under harsh environment, rear panel mount solution with mounting holes. Adjustable military white backlight included, with USB interface. The whole keyboard is designed to meet MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, rain, fungus etc.), and MIL-STD-461G-EMC-EMI-EMS-ESD (optional), as well as military standards: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.
DIMENSIONS: 182.5 mm x 93.0mm (L x W)
| MECHANICAL DATA | |
| Keys | 69 keys |
| Switch Contact Material | Carbon-on-gold key switch technology |
| Key Top Style | Protuberant rectangular keys with tactile feeling |
| Key Travel | 1.50mm±0.10mm |
| Actuation Force | 1.5N±0.2N (pressure point ) |
| G.W. | 0.50KGs |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 30mA when backlight is off, 300mA with backlight on |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Interface | USB, With customized interface optional |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating Temperature | -40℃ to +75℃ |
| Storage Temperature | -45℃ to +85℃ |
| Operating RH | 3%~95% |
| Atmospheric Pressure | 60-106Kpa |
| Saline Mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
| CE/FCC/ROHS, MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, rain, dust, fungus, solar radiation etc.) | |
| Protection Level | IP65 dynamic (front panel) |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATION | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |

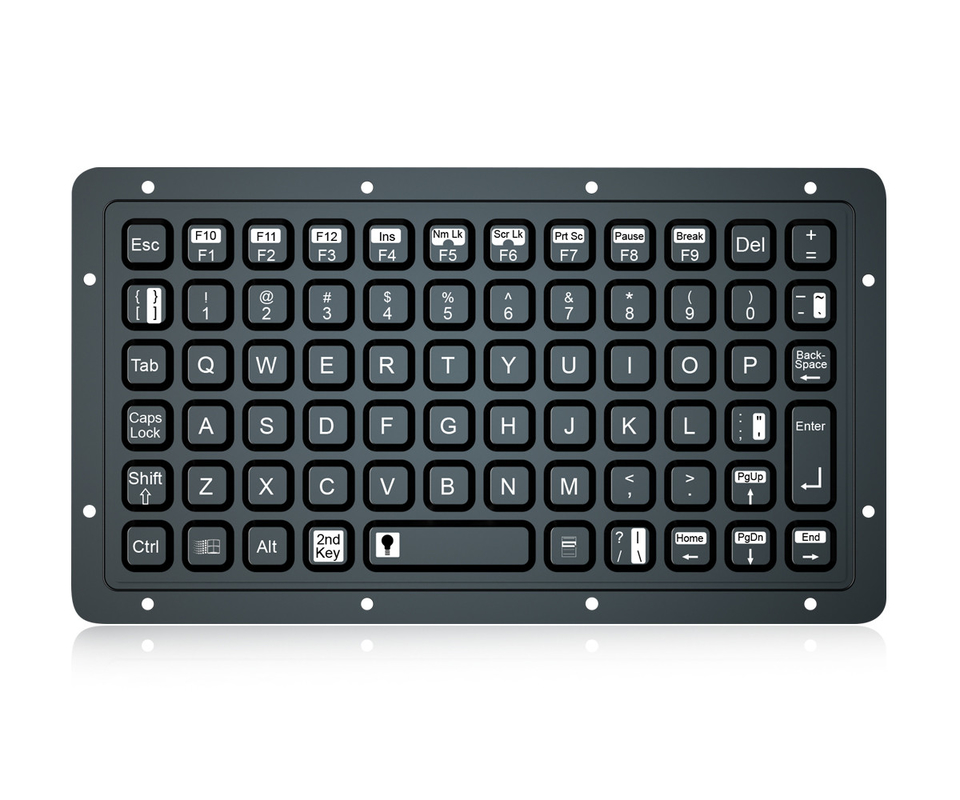

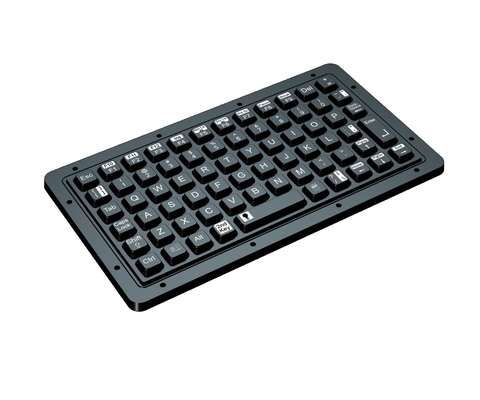

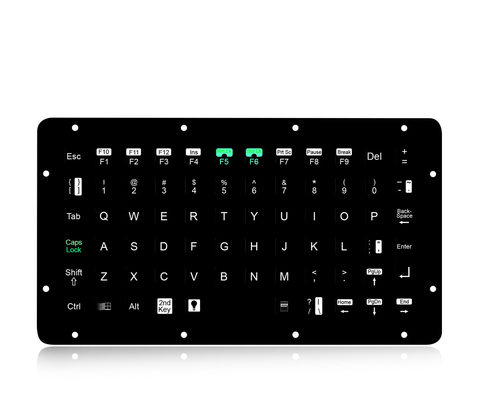

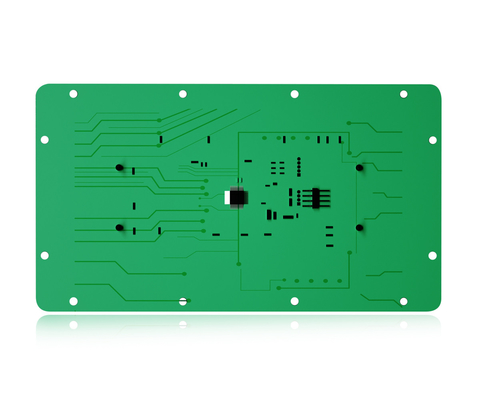

ACTUAL PHOTOS
