Product Details:
|
| Material: | Silicone Rubber | Keys: | 87 Keys |
|---|---|---|---|
| Interface: | USB/PS2 Available | Key Travel: | 1.50mm±0.10mm |
| G.W.: | 1.20KGs | Name: | Silicone Rugged Keyboard |
| Keyword: | Rugged Keyboard, Military Keyboard | Key Switch: | Carbon-on-gold Key Switch Technology |
| Protection Level: | IP65 Dynamic (front Panel) | Backlight: | Optional |
| High Light: | USB Silicone Industrial Keyboard,Carbon On Gold Silicone Rugged Keyboard,87 Keys Silicone Rugged Keyboard |
||
DESCRIPTION FOR SILICONE IRUGGED KEYBOARD: 87 keys IP65 dynamic sealed and durable embedded silicone rubber rugged keyboard, with built-in military grade PCB, 12 function keys on top line for easy operation, with carbon-on-gold key switch technology with key stroke (1.50±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under harsh environment, FN + Clean combination key for easy cleaning via lock/disable whole keyboard without needing to take away the keyboard from PC, rear panel mounted, with a reinforced and rugged metal back plate for better shielding function and positioning of the rugged cable outlet. Built to meet MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.), which can also meet the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.
SILICONE IRUGGED KEYBOARD DIMENSIONS: 270.0mm x 113.0mm (Front panel)
| SILICONE IRUGGED KEYBOARD MECHANICAL DATA | |
| Keys | 87 keys |
| Switch Contact Material | Carbon-on-gold key switch technology |
| Key Top Style | Protuberant rectangular keys with tactile feeling |
| Key Travel | 1.50mm±0.10mm |
| Actuation Force | 1.5N±0.2N (pressure point ) |
| G.W. | 0.80KGs |
| SILICONE IRUGGED KEYBOARD ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 30mA |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Interface | USB, PS2 available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| SILICONE IRUGGED KEYBOARD ENVIRONMENTAL ADAPTABILITY | |
| Operating Temperature | -40℃ to +75℃ |
| Storage Temperature | -45℃ to +85℃ |
| Operating RH | 3%~95% |
| Atmospheric Pressure | 60-106Kpa |
| Saline Mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| SILICONE IRUGGED KEYBOARD RELIABILITY | |
| RoHS compliant, CE and FCC certified, MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.) | |
| Protection Level | IP65 dynamic (front panel) |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATION | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |

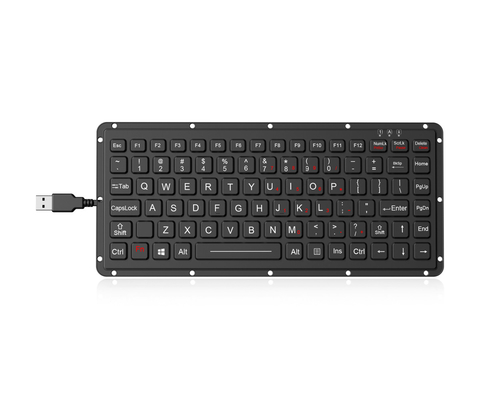

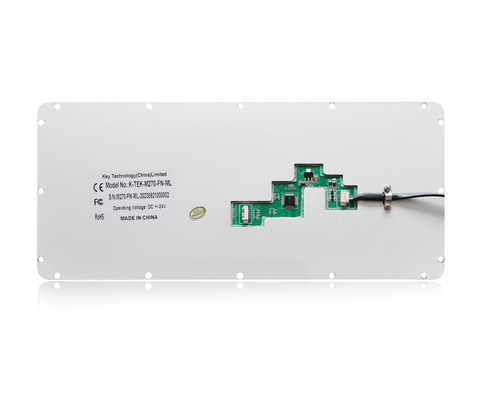

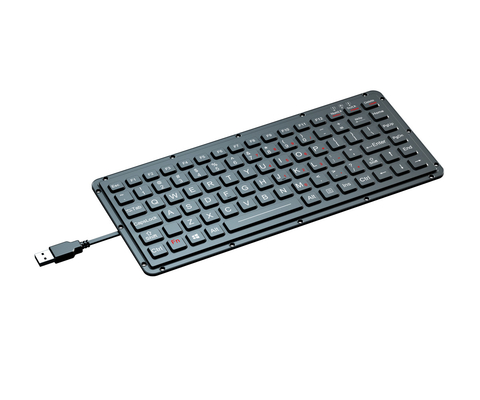

SILICONE IRUGGED KEYBOARD ACTUAL PHOTOS
