Product Details:
|
| Keys: | 20 Keys | Keycap Color: | Stainless Steel |
|---|---|---|---|
| Key Switch Type: | Gold On Gold | Key Type: | Flat Keycap |
| Key Travel: | 0.45mm±0.05mm | Backlight: | White Color |
| Protection Level: | IP65 Dynamic (front Panel) | Keyword: | Stainless Steel Keypad, Metal Keypad |
| High Light: | Waterproof Stainless Steel Keypad,20 Keys Metal Keypad,Waterproof Metal Keypad 0.45mm |
||

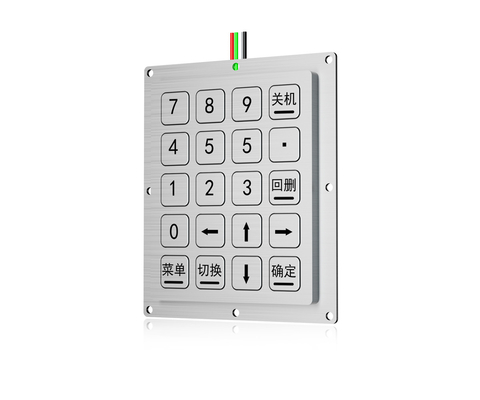

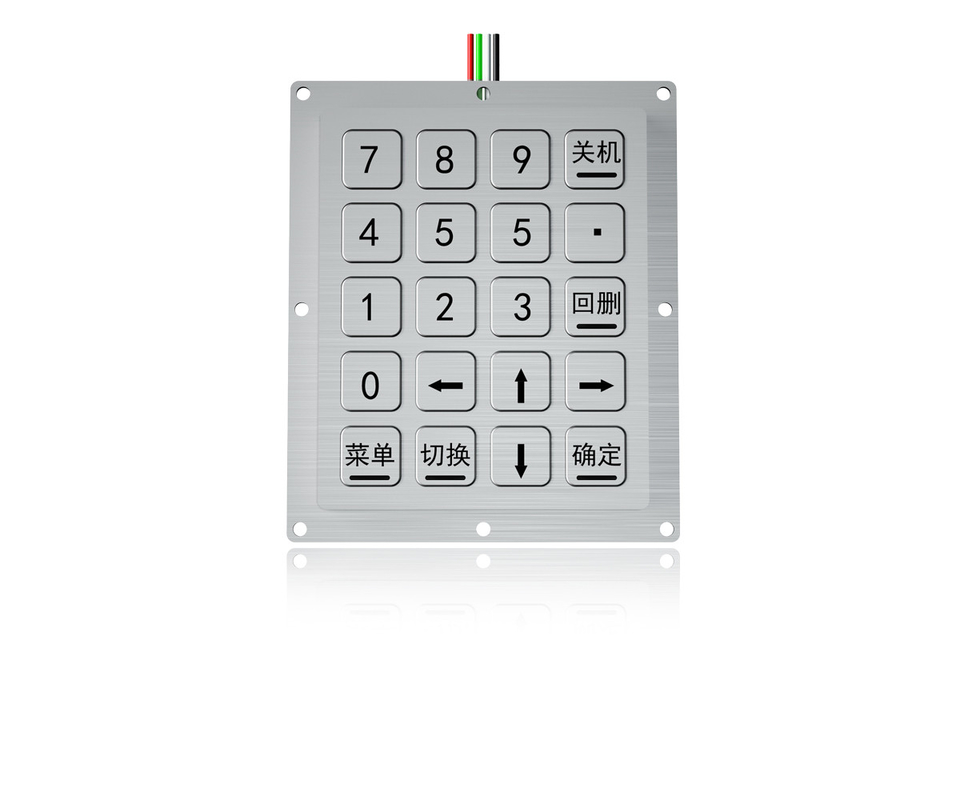

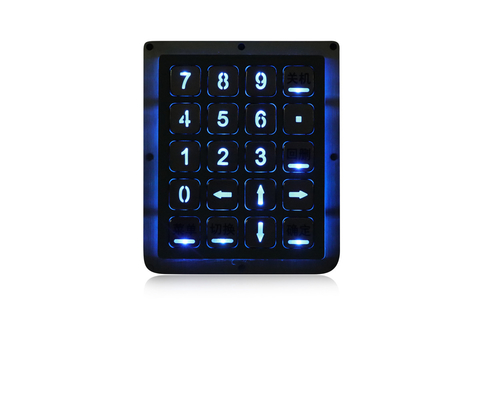

20 keys compact format IP65 dynamic waterproof and vandal proof stainless steel military numeric keypad with military grade metal dome PCB, Military metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, stainless steel key caps etched out via special professional way and filled with transparent epoxy for backlight out, blue backlight included, rear panel mount solution with mounting holes. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc. USB interface, customized layout. Designed to Meet MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.) Which can also meet the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.
DIMENSION: 75.0mm × 92.0mm (front panel)
| METAL KEYPAD MECHANICAL DATA | |
| Keys | 20 keys |
| Switch Contact Material | Gold-on-gold key switch technology |
| Key Travel | 0.45mm±0.05mm |
| Actuation Force | 2.5N±0.2N (pressure point ) |
| G.W. | 0.40KGs |
| METAL KEYPAD ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 150mA |
| Meet MIL-STD-461G (EMC, EMI, EMS, ESD): | |
| 1 | CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads |
| 2 | CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads |
| 3 | CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads |
| 4 | CS106 Conducted Susceptibility, Transients, Power Leads |
| 5 | CS112 Electrostatic Discharge Susceptibility |
| 6 | CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection |
| 7 | CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation |
| 8 | CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads |
| 9 | RE101 25Hz -100kHz Radiated Emissions, Magnetic Field |
| 10 | RE102 10kHz - 18GHz Radiated Emissions, Electric Field |
| 11 | RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field |
| 12 | RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field |
| MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.) | |
| Lifespan | > 5 years |
| Interface | USB |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| METAL KEYPAD ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -40℃ to +75℃ |
| Storage temperature | -45℃ to +85℃ |
| Operating RH | 3%~95% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| METAL KEYPAD RELIABILITY | |
| RoHS compliant, CE and FCC certified, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.) | |
| Protection Level | IP65 dynamic (front panel) |
| Vandal Resistant | IK09 |
| Key Lifespan | >1 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATION | Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc. |
IKB-MKB is a leading provider of industrial metal keypads, offering a wide range of products for various applications. The K-TEK-B137KP-24-BL-ML-151B-DWP model is designed for ATM keypad buttons, industrial computer keyboards, embedded numeric keypads, and other applications. It features a full-sized standard size, interface of USB, LED RGB color, keycap color of black, key switch type of mechanical, and is certified with CE, RoHS, FCC, ESD, REACH, IP67, and IP68. It is available in minimum order quantity of 1pc, with competitive price and fast delivery time of ASAP within 1-2 weeks upon payment confirmed. Payment terms include full payment in advance, Western Union, T/T, Paypal, and supply ability of 3000psc/month. It is packaged in individual box for each keyboard, and several boxes to one carton.
Our Metal Keypad product comes with a full range of technical support and services.
We provide support for installation, integration and troubleshooting. Our technical support team is available 24/7 to answer any questions you may have. We also offer a comprehensive library of online resources, including FAQs, tutorials and product documentation.
We provide a range of services, including product customization, software development, hardware maintenance and repairs. We also offer on-site training and consultations.
Packing and Shipping:
Packaging and Shipping of Metal Keypad:
The Metal Keypad is shipped in a sealed box, protected with foam padding. The box is labeled with the product name and serial number. It also includes a user manual and a warranty card.
The Metal Keypad is shipped by a reliable courier service and is insured against loss or damage. Delivery usually takes 5 to 7 business days. The customer is provided with a tracking number which can be used to track the package in real-time.
