Product Details:
|
| Keys: | 6 Keys | Keycap Color: | Stainless Steel |
|---|---|---|---|
| Key Switch Type: | Gold On Gold | Key Type: | Flat Keycap |
| Key Travel: | 0.45mm±0.05mm | Backlight: | Optional |
| Protection Level: | IP65 Dynamic (front Panel) | Keyword: | Stainless Steel Keypad, Metal Keypad |
| High Light: | 6 Keys Metal ATM Keypad,Waterproof Stainless Steel Numeric Keypad,Flat Numeric Metal Keypad |
||

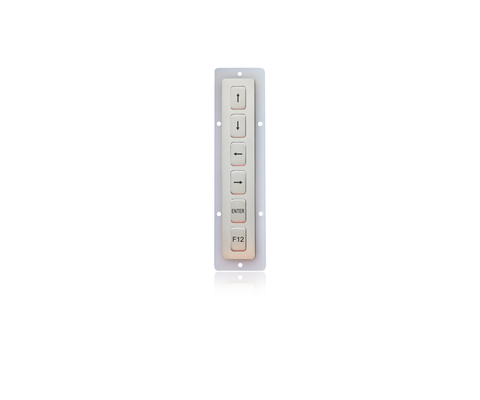

6 keys IP65 dynamic water proof rated vandal proof stainless steel industrial keypad with totally sealed and ruggedized metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input. Rear stainless steel back plate with mounting holes and water-tight rubber sealing gasket for easy sealing and tightening with cabinet, rear panel mounting solution. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.
DIMENSION: 160.0mm x 30.0mm (L x W)
| MECHANICAL DATA | |
| Keys | 6 keys, super quality SUS304 brushed stainless steel flat key. |
| Key Size | 14.0mm x 21.0mm for normal keys |
| Key Travel | 0.45mm±0.05mm |
| Actuation Force | 3.5N±0.2N (pressure point) |
| Front Plate | 1.5mm thickness super quality brushed stainless steel |
| Back Plate | 1.2mm thickness super quality stainless steel |
| Lettering | laser engraving, or raised letters |
| Switch Life | more than 1 million of operations |
| G.W. | 0.52KGs |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 30mA |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Switch Contact Material | Gold-on-Gold key switch technology PCB |
| Interface | dot matrix, USB, PS2, RS232 available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos-To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating Temperature | -20℃ to +65℃ |
| Storage Temperature | -30℃ to +75℃ |
| Operating RH | 3%~95% |
| Atmospheric Pressure | 60-106Kpa |
| Saline Mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
| RoHS Compliant, CE and FCC, ESD | |
| Protection Level | IP65 dynamic (front panel) |
| Vandal Resistant | IK09 |
| Key Lifespan | >1 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATION | Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc. |
IKB-MKB is a leading provider of industrial metal keypads, offering a wide range of products for various applications. TK-TEK-B160FK-6-DWP model is designed for ATM keypad buttons, industrial computer keyboards, embedded numeric keypads, and other applications. It features a full-sized standard size, interface of USB, LED RGB color, keycap color of black, key switch type of mechanical, and is certified with CE, RoHS, FCC, ESD, REACH, IP67, and IP68. It is available in minimum order quantity of 1pc, with competitive price and fast delivery time of ASAP within 1-2 weeks upon payment confirmed. Payment terms include full payment in advance, Western Union, T/T, Paypal, and supply ability of 3000psc/month. It is packaged in individual box for each keyboard, and several boxes to one carton.
Our Metal Keypad product comes with a full range of technical support and services.
We provide support for installation, integration and troubleshooting. Our technical support team is available 24/7 to answer any questions you may have. We also offer a comprehensive library of online resources, including FAQs, tutorials and product documentation.
We provide a range of services, including product customization, software development, hardware maintenance and repairs. We also offer on-site training and consultations.
Packing and Shipping:
Packaging and Shipping of Metal Keypad:
The Metal Keypad is shipped in a sealed box, protected with foam padding. The box is labeled with the product name and serial number. It also includes a user manual and a warranty card.
The Metal Keypad is shipped by a reliable courier service and is insured against loss or damage. Delivery usually takes 5 to 7 business days. The customer is provided with a tracking number which can be used to track the package in real-time.
