Product Details:
|
| Dimensions: | 70.0mm X 104.0mm (top Panel) | Interface: | PS2, USB Available |
|---|---|---|---|
| Material: | Stainless Steel | Mouse Button: | 3 Mouse Button |
| Mounting Method: | Rear Panel Mount | Trackball: | 38.0mm Mechanical Trackball |
| Keyword: | Industrial Trackball, Trackball, | Protection Level: | IP65 Dynamic (front Panel) |
| Name: | Black Titanium Rugged Mechanical Trackball With 3 Mouse Buttons | ||
| High Light: | Titanium Rugged Mechanical Trackball,3 Mouse Buttons Rugged Mechanical Trackball |
||
DESCRIPTION FOR MECHANICAL TRACKBALL : IP65 dynamic rated vandal proof mechanical trackball with durable black titanium aluminum alloy round mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, as well as 38.0mm black hardened resin mechanical trackball module with 400 DPI resolutions for fast and accurate fixing cursor position with extreme smooth operation without any noise, mechanical trackball module protected and shielded by stainless steel housing, high quality black titanium electroplated on stainless steel top plate for rear panel mounting solution. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.
DIMENSION: 70.0mm x 104.0mm (front panel)
| MECHANICAL DATA | |
| Keys | 3 keys |
| Key travel | 1.50mm |
| Actuation Force | 3.1N±0.2N |
| Trackball | 38mm black resin mechanical trackball module |
| G.W. | 1.0KGs |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 80mA |
| EMC Standard | EN 55032:2015, EN 55035:2017 |
| Lifespan | > 5 years |
| Interface | USB/PS2 available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -20℃ to +65℃ |
| Storage temperature | -30℃ to +75℃ |
| Operating RH | 3%~95% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
| RoHS, CE, FCC | |
| Protection Level | IP65 |
| Key Lifespan | >1 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATION | Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc. |

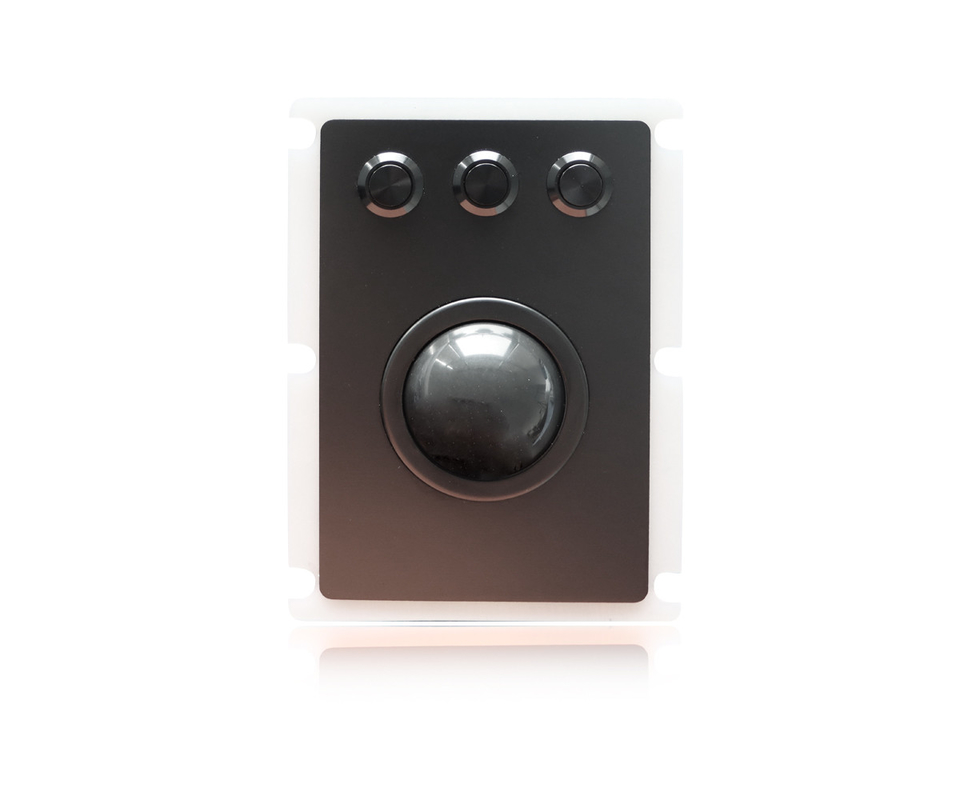

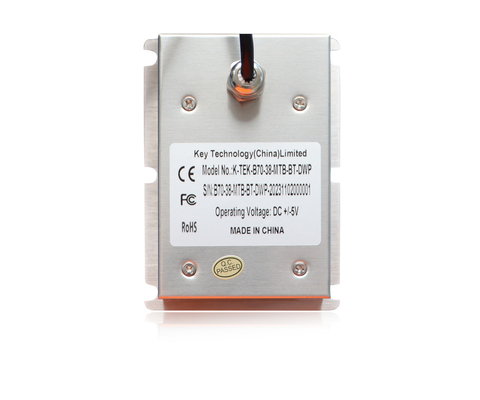

MECHANICAL TRACKBALL ACTUAL PHOTOS:
