Product Details:
|
| Keys: | 17 Keys | Keycap Color: | Aluminum Alloy |
|---|---|---|---|
| Key Switch Type: | Carbon-on-gold Key Switch Technology | G.W.: | ≈0.50kgs |
| Key Travel: | 1.20mm±0.10mm | Backlight: | White Color |
| Protection Level: | IP65 Dynamic (front Panel) | Keyword: | Industrial Keypad |
| High Light: | IP65 Industrial Numeric Keypad,17 Keys Waterproof Industrial Keypad,Metal Numeric Keypad With Backlight |
||

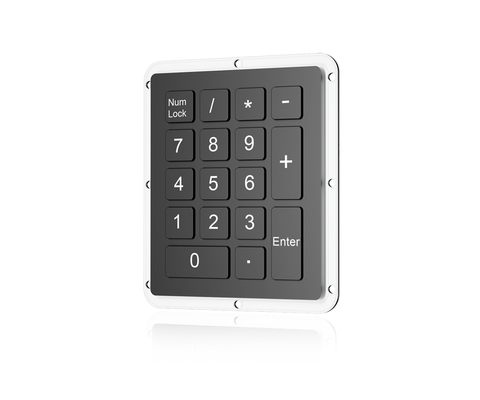

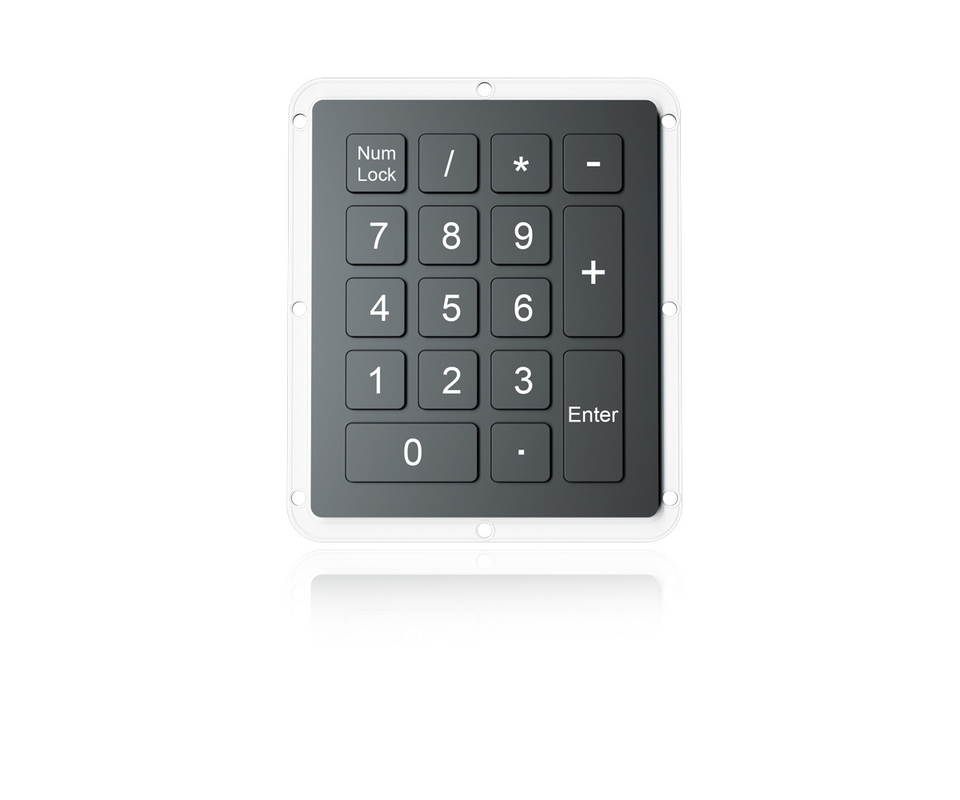

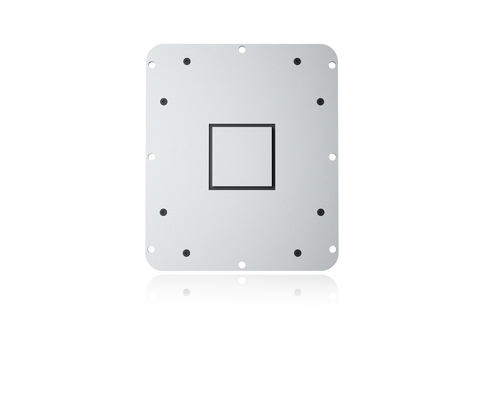

17 keys IP65 dynamic sealed and rugged durable military keypad. With carbon-on-gold key switch technology with (1.20mm±0.10mm) key travel with extremely good tactile feeling for fast and accurate data input without any noise.The whole keypad is made of CNC aluminum alloy front plate + PC keycaps + carbon contact as well as military grade PCB. Durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under harsh environment, rear panel mounted with mounting holes. Adjustable white backlight included. Designed to meets MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.), and MIL-STD-461G-EMC-EMI-EMS-ESD (optional), as well as military standards: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.
DIMENSION: 91.00mm x 110.00mm (L x W) (front panel)
| MECHANICAL DATA | |
| Key | 17 keys |
| Key Top Style | Protuberant rectangular keys with tactile feeling |
| Key Technology | Carbon-on-gold key switch technology |
| Key Size | 16.0mm x 16.0mm for normal keys |
| Key Travel | 1.20mm±0.10mm |
| Actuation Force | 1.0N±0.2N for normal keys and 1.5N±0.2N for Enter keys |
| G.W. | ≈0.50kgs |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 30mA when backlight is off, 300mA with backlight on |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Interface | USB/PS2 optional |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating Temperature | -40℃ to +75℃ |
| Storage Temperature | -45℃ to +85℃ |
| Saline mist | 96h, IEC60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| Humidity | 3%~95% |
| Atmospheric Pressure | 60-106Kpa |
| RELIABILITY | |
| RoHS compliant, CE and FCC certified, MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.) | |
| Protection Level | IP65 dynamic (front panel) |
| Vandal Resistant | IK09 |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATION | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |
IKB-MKB is a leading provider of industrial keypads, offering a wide range of products for various applications. The K-TEK-M91KP-BL-ML-DWP model is designed for ATM keypad buttons, industrial computer keyboards, embedded numeric keypads, and other applications. It features a full-sized standard size, interface of USB, LED RGB color, keycap color of black, key switch type of mechanical, and is certified with CE, RoHS, FCC, ESD, REACH, IP67, and IP68. It is available in minimum order quantity of 1pc, with competitive price and fast delivery time of ASAP within 1-2 weeks upon payment confirmed. Payment terms include full payment in advance, Western Union, T/T, Paypal, and supply ability of 3000psc/month. It is packaged in individual box for each keyboard, and several boxes to one carton.
Our Industrial Keypad product comes with a full range of technical support and services.
We provide support for installation, integration and troubleshooting. Our technical support team is available 24/7 to answer any questions you may have. We also offer a comprehensive library of online resources, including FAQs, tutorials and product documentation.
We provide a range of services, including product customization, software development, hardware maintenance and repairs. We also offer on-site training and consultations.
Packing and Shipping:
Packaging and Shipping of Industrial Keypad:
The Industrial Keypad is shipped in a sealed box, protected with foam padding. The box is labeled with the product name and serial number. It also includes a user manual and a warranty card.
The Industrial Keypad is shipped by a reliable courier service and is insured against loss or damage. Delivery usually takes 5 to 7 business days. The customer is provided with a tracking number which can be used to track the package in real-time.
