Product Details:
|
| Color: | Black | Interface: | USB/PS2 Available |
|---|---|---|---|
| Protection Level: | IP54 | Operating Temperature: | 0℃ To +45℃ |
| Key Switch Technology: | Micro Switch | Name: | USB Mouse |
| Keyword: | Medical Mouse, Optical Mouse, Silicone Mouse, Waterproof Mouse | Dimensions: | 106.08mm X 68.11mm X 37.82mm (L X W X H) |
| High Light: | IP54 static Industrial Mouse,rugged Industrial Mouse,Micro Switch Buttons Medical Mouse |
||

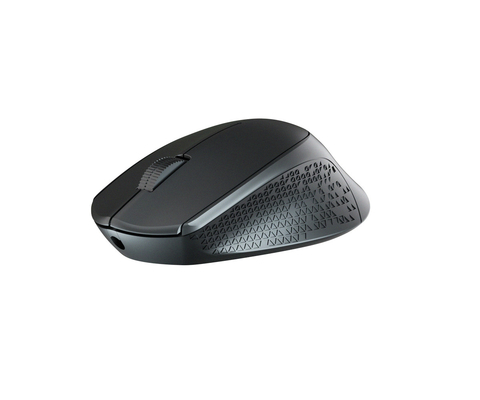

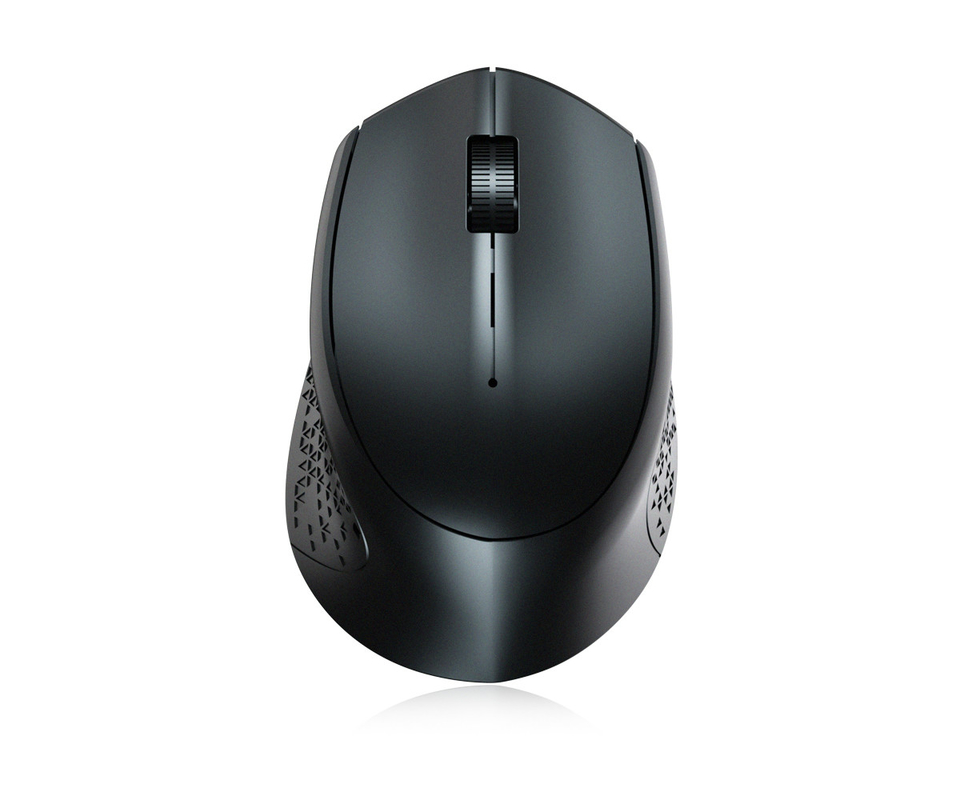

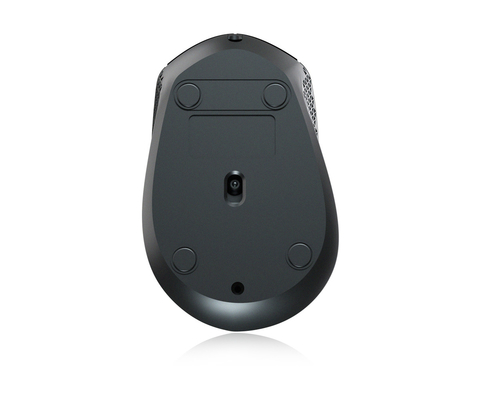

High-Performance Industrial Mouse With Micro Switch Buttons Medical Mouse
DESCRIPTION FOR INDUSTRIAL MOUSE: IP54 static rugged optical mouse with built in PCB control module, micro switch buttons with extremely good tactile feeling for fast and smooth operation without any noise, maximum resolution of 1000DPI, the mouse is full sized and features a 3-buttons designed for right & left clicking and middle wheel for scrolling up and down, desktop version.
DIMENSION: 106.08mm x 68.11mm x 37.82mm (L x W x H)
| MECHANICAL DATA | |
| Actuator/keys | 3 keys |
| Key Switch Technology | Micro switch |
| Key Travel | 0.45mm±0.10mm |
| Actuation Force | 2.0±0.2N |
| Key Lifespan | 1 millions actuation |
| G.W. | 0.25KGs |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 17mA |
| Lifespan | > 5 years |
| Interface | USB/PS2 available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | 0℃ to +45℃ |
| Storage temperature | -10℃ to +50℃ |
| Operating RH | 3%~95% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
| RoHS Compliant, CE and FCC | |
| Protection Level | IP54 |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATION | Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc. |
