Product Details:
|
| Material: | Membrane | Keys: | 107 Keys |
|---|---|---|---|
| G.W.: | 1.40KG | Mounting: | Mountable Desk Top Version |
| Color: | Black | Name: | Industrial Membrane Keyboard |
| Keyword: | Industrial Keyboard Trackball, Membrane Keyboard, Industrial Keyboard | ||
| High Light: | 107 Keys Industrial Membrane Keyboard,Chemical Resistant Industrial Membrane Keyboard,Liquid Resistant Industrial Membrane Keyboard |
||

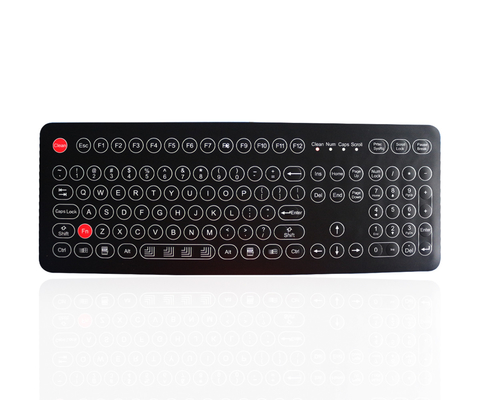

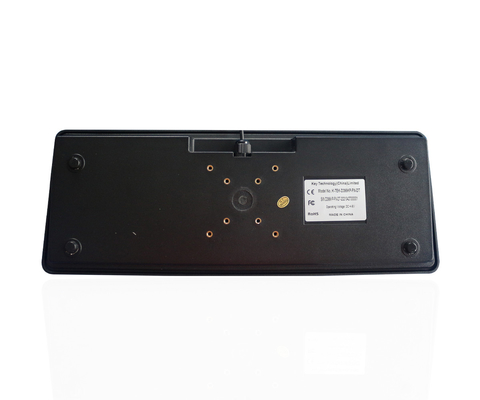

Description For Industrial Membrane Keyboard: 107 keys compact format IP68 dynamic rated washable membrane industrial keyboard with integrated numeric keypad and function keys FN (F1,F2 F3 ... F11, F12) on the upper line, industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with extremely good tactile feeling for reliable data input, with FN+CLEAN key for easy cleaning via lock/disable the entire keyboard without needing to take the keyboard from PC, surface mounted extremely flush with anti-microbial, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments, mountable desk top version with robust polycarbonate case and VESA mounting holes on backside for fixation.
DIMENSIONS: 399.0mm x 148.8mm x (22.1-36.8)mm (LxWxH)
| MECHANICAL DATA | |
| Number of Keys | 107 keys |
| Key switch Technology | metal dome PCB with gold-on-gold key switch technology with short stroke keys |
| Actuation Force | 3.5N±0.2N (press point) |
| Key Travel | 0.45mm |
| Key switch Lifetime | 1 mil. operations |
| Mounting Type | Mountable desktop version |
| Colors | 2 (white, black) |
| G.W. | 1.40KGs |
| Key Dimensions (print area) | 13.0mm x 13.0mm |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 30mA |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Interface | PS2, USB available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -20℃ to +65℃ |
| Storage temperature | -30℃ to +75℃ |
| Operating RH | 100% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
| RoHS, CE, FCC | |
| Protection Level | IP68 |
| Key Lifespan | >1 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Industrial, marine, food and beverage, processing factory, medical and pharmaceutical, numerical control machine etc. |
