Product Details:
|
| Certification: | ROHS,CE,FECC | Material: | Silicone |
|---|---|---|---|
| Backlight: | White | Keys: | 89 Keys (including 2 Mouse Buttons) |
| Key Travel: | 1.50mm±0.10mm | Protection Level: | IP65 Dynamic (front Panel) |
| Interface: | Dual PS2 | Size: | 315.0mm X 108.0mm (L X W) |
| Key Word: | Silicone Rugged Keyboard, Rugged Keyboard With Touchpad, Military Keyboard | ||
| High Light: | OEM Rugged Military Keyboard,Touchpad Rugged Military Keyboard,Dual PS2 Rugged Military Keyboard |
||

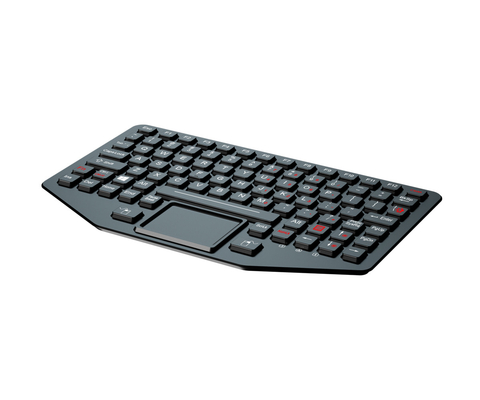

Rugged Military Keyboard MIL-STD-461G And MIL-STD-810F Compliant With Touchpad
Rugged Military Keyboard Model NO: K-TEK-M315TP-FN-BL-NV-151B-PS2
DESCRIPTION FOR RUGGED MILITARY KEYBOARD : 89 keys IP65 dynamic sealed & durable embedded military silicone rubber keyboard with sealed and ruggedized tough touchpad for fast and accurate cursor position, with built-in military grade PCB module, 12 function keys on top line for easy operation, with carbon-on-gold key switch technology with key stroke (1.50±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under harsh environment, FN + Clean combination key for easy cleaning via lock/disable whole keyboard without needing to take away the keyboard
from PC, top panel mount solution, with exposed copper treatment surrounding the edges of backside PCB and designed without silicone rubber around the PCB edges for optimizing the sealing with cabinet and preventing electromagnetic leakage from the device, adjustable white backlight included. Built to meet MIL-STD-810F environmental adaptability (wide temperature, shock, salt mist, vibration, fungus, humidity, direct rain etc.), and MIL-STD-461G (EMC, EMI, EMS, ESD etc.) optional, which also meet the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.
DIMENSION: 283.00mm x 177.7mm (L x W)
| MECHANICAL DATA | |
| Keys | 89 keys (including 2 mouse buttons) |
| Key top style | Protuberant rectangular keys with tactile feeling |
| Switch Contact Material | carbon-on-gold key switch technology |
| Key travel | 1.50mm±0.10mm |
| Actuation Force | 1.5N±0.2N |
| Switch life | more than 5 million of operations |
| Touch pad | sealed and ruggedized tough touchpad |
| Touchpad cover | Composite |
| Mutual capacitance sensing | |
| X/Y axis location detection resolution | 40 Counts /mm |
| X/Y position report | relative |
| Output (self-detectable depending on cable) | USB |
| Tracking speed | Maximum 1,016 m/sec |
| Power supply voltage | 5VDC ± 0.25V |
| Current rating (active mode) | < 10 mA |
| G.W. | 0.80KGs |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 30mA when backlight is off, 300mA with backlight on |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Interface | USB |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -40℃ to +75℃ |
| Storage temperature | -45℃ to +85℃ |
| Operating RH | 3%~95% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
| RoHS compliant, CE and FCC certified, MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity, direct rain etc.) | |
| Protection Level | IP65 dynamic (front panel) |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATION | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |

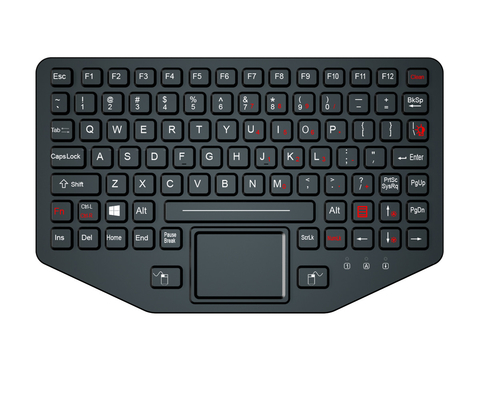

Front View For Rugged Military Keyboard

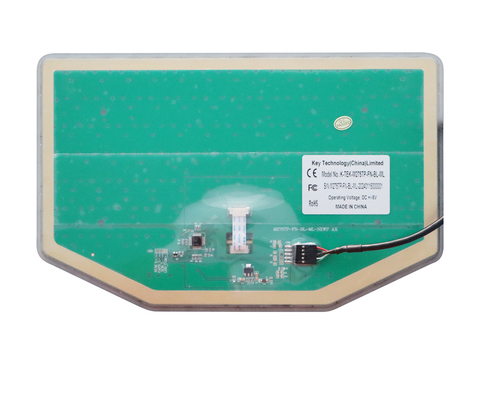

Back View For Rugged Military Keyboard
