Product Details:
|
| Certification: | ROHS,CE,FECC | Material: | Polymer |
|---|---|---|---|
| Backlight: | White | Keys: | 101 Keys + 2 Mouse Buttons |
| Key Travel: | 1.20mm±0.10mm | Protection Level: | IP65 Dynamic (front Panel) |
| Interface: | USB | Size: | Keyboard: 334.0mm X 118.0mm (L X W) |
| Key Word: | Rugged Keyboard, Rugged Keyboard With Touchpad, Military Keyboard | ||
| High Light: | CE Certified Rugged Military Keyboard,Silicone Material Rugged Military Keyboard,Rugged Military Keyboard |
||

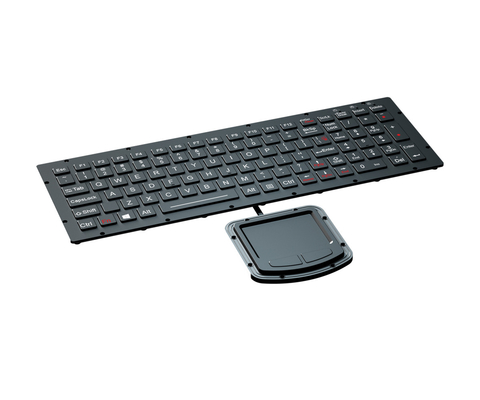

Rugged Military Keyboard For Critical Military Standards With Touchpad And Backlight
Rugged Military Keyboard Model NO: K-TEK-M334KP-FN-BL-IT-NV-151B-DWP+M73TP
DESCRIPTION FOR RUGGED MILITARY KEYBOARD : 101 keys IP65 dynamic sealed and rugged durable embedded ultra thin military chiclet keyboard with polymer keys, sealed and ruggedized touchpad with 2 mouse buttons for left/right clicking, 12 function keys(F1, F2, ... F12) are on the top line for easy operation.It is made of CNC aluminum alloy front plate + PC keycaps + carbon contact as well as military grade PCB, with carbon-on-gold key switch technology with 1.20mm key travel with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under harsh environment, top panel mounting with sinking holes solution. FN + Clean combination keys for easy cleaning without taking keyboard away from PC to avoid mis-operation or mistyping. Adjustable white backlight included, meet MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.), which can also meet the critical military standards with 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.
DIMENSION: Keyboard: 334.0mm x 118.0mm (L x W), Touchpad: 73.0mm x 76.0mm(Lx W)
| MECHANICAL DATA | |
| Key | 101 keys + 2 mouse buttons, durable and robust polymer keys |
| Key top style | Protuberant rectangular keys with tactile feeling |
| Key technology | Military PCB with carbon-on-gold key switch technology |
| Key travel | 1.20mm±0.10mm |
| Actuation Force | 1.0N±0.2N for normal keys and 1.5N±0.2N for Enter/Backspace/Shift/Capslock/Tab etc. keys |
| Touch pad | sealed & ruggedized tough touchpad |
| Touchpad cover | Composite |
| Mutual capacitance sensing | |
| X/Y axis location detection resolution | 40 Counts /mm |
| X/Y position report | relative |
| Tracking speed | Maximum 1,016 m/sec |
| Power supply voltage | 5VDC ± 0.25V |
| Current rating (active mode) | < 10 mA |
| G.W. | ≈0.90kgs |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 30mA when backlight is off, 300mA with backlight on |
| Meet MIL-STD-461G (EMC, EMI, EMS, ESD): | |
| 1 | CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads |
| 2 | CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads |
| 3 | CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads |
| 4 | CS106 Conducted Susceptibility, Transients, Power Leads |
| 5 | CS112 Electrostatic Discharge Susceptibility |
| 6 | CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection |
| 7 | CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation |
| 8 | CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads |
| 9 | RE101 25Hz -100kHz Radiated Emissions, Magnetic Field |
| 10 | RE102 10kHz - 18GHz Radiated Emissions, Electric Field |
| 11 | RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field |
| 12 | RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field |
| MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.) | |
| Lifespan | > 5 years |
| Interface | USB |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -40℃ to +75℃ |
| Storage temperature | -45℃ to +85℃ |
| Saline mist | 96h, IEC60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| Humidity | 3%~95% |
| Atmospheric pressure | 60-106Kpa |
| RELIABILITY | |
| RoHS compliant, CE and FCC certified, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.) | |
| Protection Level | IP65 dynamic (front panel) |
| Vandal resistant | IK09 |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATION | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |

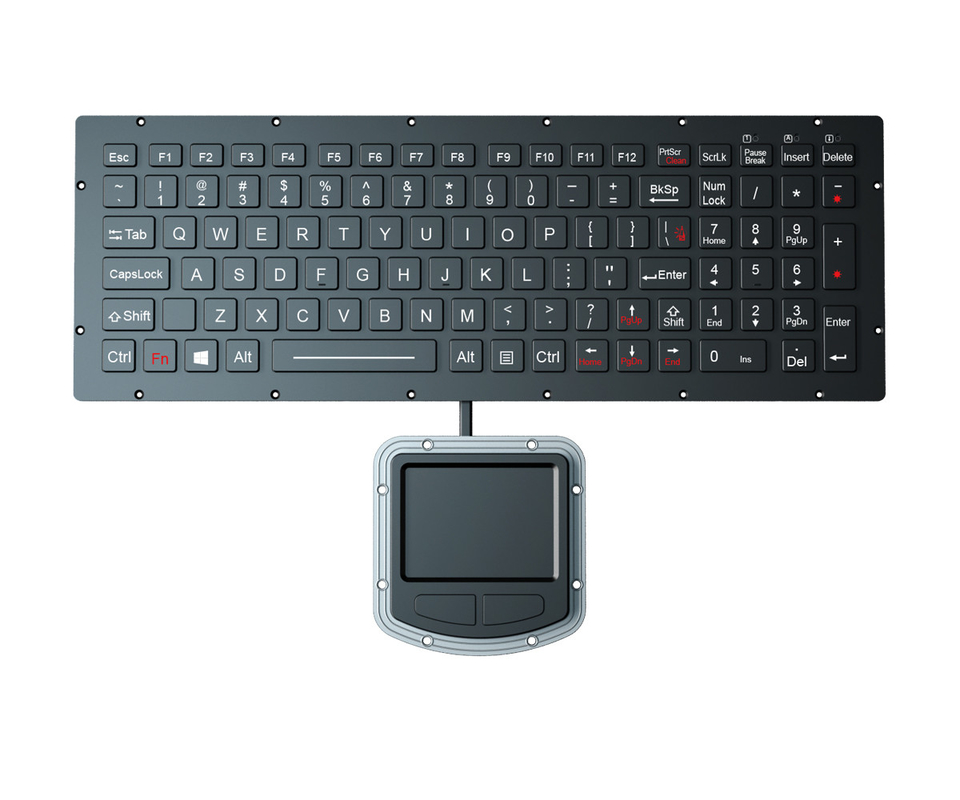

Front View For Rugged Military Keyboard
Back View For Rugged Military Keyboard
