84 keys compact format IP68 dynamic waterproof stainless steel flat desktop keyboard.
MODEL NO.: K-TEK-A443-LTB-JS-FN-DT-DWP
IP68 waterproof industrial keyboard intergrated with dynamic washable stainless steel industrial keyboar/laser trackball/industrial joystick.
DIMENSIONS: 443.0mm x 144.0mm.
PART Ⅰ:INDUSTRIAL KEYBOARD WITH TRACKBALL
84 keys compact format IP68 dynamic washable vandal proof stainless steel industrial keyboard with IP68 dynamic rated washable 50.0mm removable laser trackball module with +1200 DPI resolutions for fast and accurate cursor position with extremely smooth operation without any noise,which is available for taking apart from the keyboard for easy cleaning, industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise, functional keys F1, F2, F3…F10, F11, F12 are on the top line for easy operation. 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, one complete sealing silicone rubber under top stainless steel plate for easy mounting & sealing tightly with cabinet, desk top version.Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc.
APPLICATION
This user terminal is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones, clean rooms etc.
MAIN FEATURE
The keyboard can be dynamic washable with water and other liquids, it can work well even under direct water pouring
On the keyboard.
The full keyboard can be locked/disabled via FN + Clean combination keys for easy cleaning without needing
to take the keyboard away from PC.
Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.
Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
An excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data input without any noise. With firm tactile perception for comfortable operation
Internet friendly key layout, key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.
Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.
Ease of customizing with multiple languages, to accommodate foreign or custom variants.
Complete electronic modules including controller in close consultation with our customers are available.
USB connection plug and play with PC via PC existing OS driver, no needing of install separate driver.
MECHANICAL DATA:
| Actuator/keys |
84 keys, super quality SUS304 brushed stainless steel |
| Key top style |
Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available |
| Key Size |
14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 100.0mm for space bar |
| Key travel |
2.0mm |
| Actuation Force |
0.6 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 1.2 N+/-0.1N for key 14.0mm x 28.0mm (pressure point) |
| Switch life |
more than 10 million of operations |
| Stainless Steel Housing |
full 1.20mm thickness super quality brushed stainless steel |
| G.W. |
3.0KGs |
| Dimensions |
443.0mm x 144.0mm (L x W x H)
|

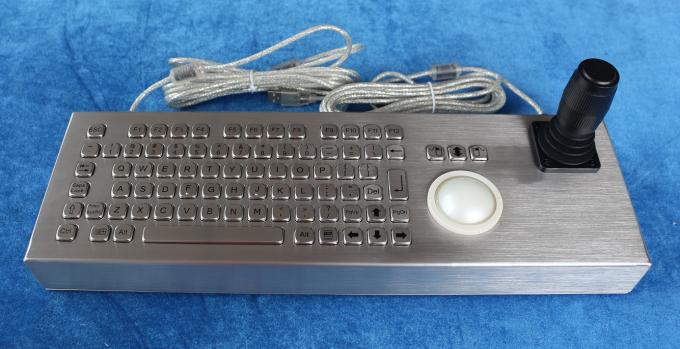

Actual photos:,
ELECTRICAL DATA
Supply Voltage: +5V DC +/-5%
Current Rating: appr. 30mA
EMC Standard: It is compliance with the council IEC 61000-4-2:2008；IEC 61000-4-3:2006+AI:2007+A2:2010；IEC 61000-4-4:2004
EMI: EN 55022: 2010
EMS: EN 55024:2010
Lifespan > 5 years
Switch Contact Material: Carbon-on-Gold key switch technology PCB.
Interface: USB
OS: All windows, Linux, Unix, Mac OSX
ENVIRONMENTAL ADAPTABILITY
Operating temperature:-20oC to +60oC
Storage temperature: -30oC to +70oC
Operating RH: 30-90%
Atmospheric pressure: 60-106Kpa.
Saline mist: 96 hours, IEC 60512-6
Damp heat test at + 40oC: 21 days, IEC 60512-6
Dry heat test at + 85oC: 10 days, IEC 60512-6
RELIABILITY
RoHS Compliant, CE and FCC, ESD
Protection Level: IP68
Vandal resistant IK09
Key Lifespan >10 million actuations
MTBF >50000H
MTTR <30min
PART Ⅱ: INDUSTRIAL JOYSTICK
Rated current:6.5mA/axisInput voltage: 5VDCMedian voltage:2.5VDC±40mVConnection mode:Red: IN+ black: IN-Blue: X-axis yellow: Y-axis
PRODUCT FEATURES1. Automatic spring reset2. Uniaxial, biaxial arbitrary direction and triaxial operation3. Button can be selected4. Select the output voltage range as needed5. Optional RS232, RS485 or USB interface output
APPLICATIONS
This series of industrial joystick is mainly used in electric wheel chair car, video control equipment, unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.
