Product Details:
|
| Keys Number: | 74 Keys | Key Travel: | 2.0mm |
|---|---|---|---|
| IP Grade: | IP67 | Interface: | PS2, USB Available |
| G.W: | 1.80KGS | Lifespan: | 5 Years |
| Operating Temperature:: | -20oC To +60oC | MTBF: | 20000H |
| High Light: | PS2 Industrial Level Keyboard,IP67 Industrial Level Keyboard,Cursor Touchpad Industrial Pc Keyboard |
||

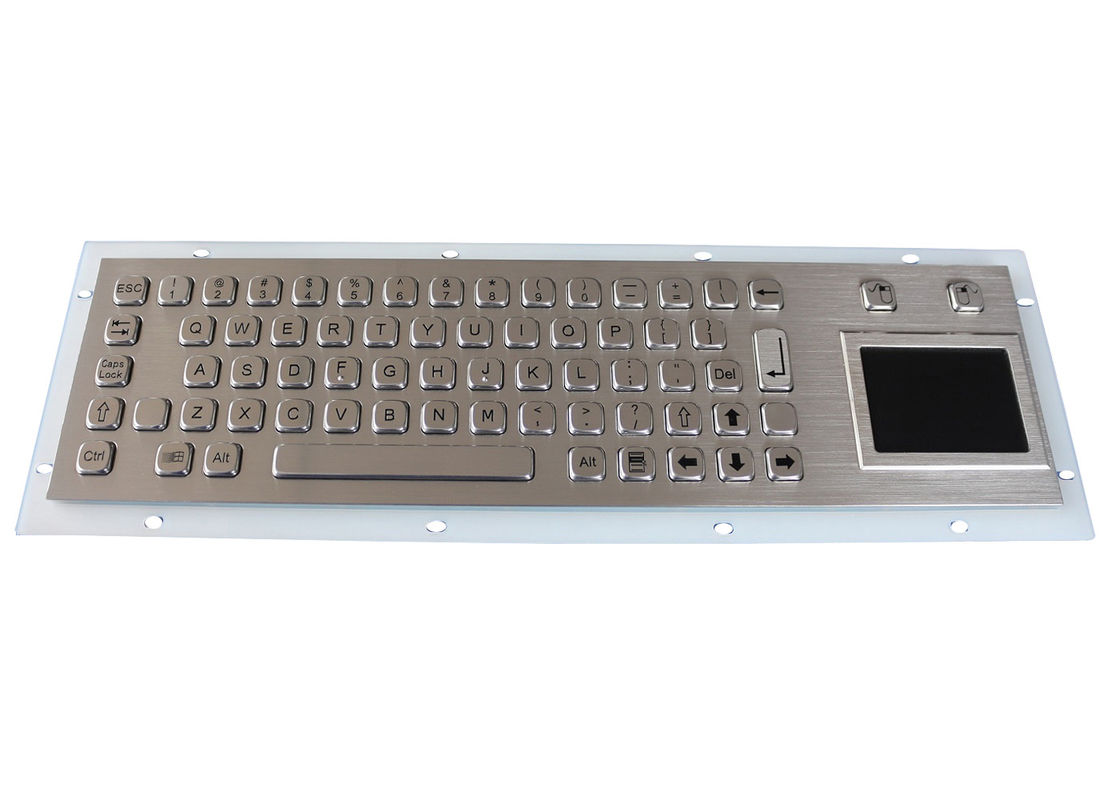

DESCRIPTION: 74 keys compact format IP67 dynamic washable vandal proof stainless steel industrial keyboard with IP65 dynamic sealed & ruggedized tough touchpad with scroll function (optional)for fast and accurate cursor position, industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise. one complete sealing silicone rubber under top stainless steel plate for easy mounting & sealing tightly with cabinet, top stainless steel plate with side threaded bolts for top panel mounting solution. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc.
| Actuator/keys | 68 keys, super quality SUS304 brushed stainless steel. |
| Key top style | Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available |
| Key Siz | 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar. |
| Key travel | 2.0mm |
| Actuation Force | 1.2 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 2.0 N+/-0.1N for key 14.0mm x 28.0mm (pressure point) |
| Switch life | more than 5 million of operations. |
| Front Plate | 1.5mm thickness super quality brushed stainless steel |

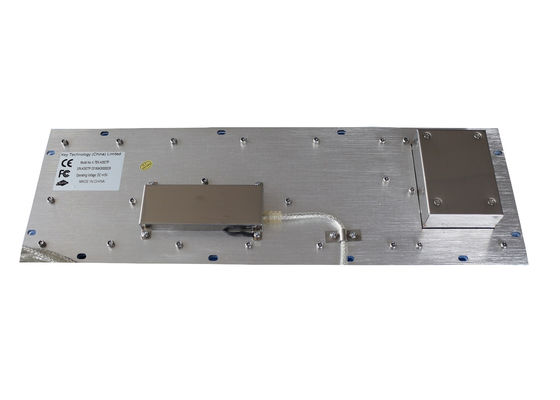

| Back Plate | 3.0mm thickness brushed & oxidized aluminium |
| Touchpad | sealed and ruggedized tough touchpad |
| Touchpad | Composite |
| Lifetime | More than Lifetime 5 million strokes |
| X/Y position sensing resolution | 40 counts/mm |
| X/Y position reporting | Relative |
| Output (self-detectable depending on cable) | PS2 or USB |
| Tracking speed | Maximum 1,016 m/sec |
| Power supply voltage | 5 VDC ±0.25V |
| Current rating (active mode) | 17 mA |
| G.W. | 1.80KGs |
| Supply Voltage | +5V DC +/-5% |
| Current Rating: appr | 80mA |
| EMC Standard | EN 55032:2015, EN 55035:2017 |
| Lifespan | > 5 years |
| Switch Contact Material | Carbon-on-Gold key switch technology PCB. |
| Interface | PS2, USB available |
| Operating temperature | -20oC to +60oC |
| Storage temperature | -30oC to +70oC |
| Operating RH | 30-90% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at + 40oC | 21 days, IEC 60512-6 |
| Dry heat test at + 85oC | 10 days, IEC 60512-6 |
| Protection Level: | IP67 |
| Vandal resistant | IK08 |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
