Washable 96 Keys Industrial Metal Keyboard Outdoor With FN Keys

China Key Technology ( China ) Limited certification
China Key Technology ( China ) Limited certification
Your professionalism and loyalty is unparalleled.We are proud to maintain a partnership with Key technology and we want to express our satisfaction.

—— Pascal LESAGE

Die Geschäftsbeziehung zwischen uns und Key Technologie ist lange gewachsen und wir freuen uns auf weitere gute und erfolgreiche Jahre.

—— Jens Radenbach

I'm Online Chat Now

Washable 96 Keys Industrial Metal Keyboard Outdoor With FN Keys

Washable 96 Keys Industrial Metal Keyboard Outdoor With FN Keys
Washable 96 Keys Industrial Metal Keyboard Outdoor With FN Keys Washable 96 Keys Industrial Metal Keyboard Outdoor With FN Keys

Large Image :  Washable 96 Keys Industrial Metal Keyboard Outdoor With FN Keys

Product Details:
Place of Origin: China
Brand Name: IKB-MKB
Certification: CE, FCC, ROHS
Model Number: K-TEK-B340KP-FN-DWP
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: To be quoted
Packaging Details: Each keyboard device to a brown inner box, suitable brown inner boxes to a master carton.
Delivery Time: ASAP Within 1-3 weeks upon payment confirmed
Payment Terms: Western Union, MoneyGram, T/T, L/C
Supply Ability: 3000pcs/month
Detailed Product Description
Keys: 96 Keys Switch Life: More Than 1 Million Of Operations
Interface: PS2, USB Available Key Travel: 0.45mm
Dimensions: 340.0mm X 145.0mm (L X W ) G.W.: 1.40KGs
High Light:

96 Keys Industrial Metal Keyboard

,

Washable Industrial Metal Keyboard

,

FN Keys Outdoor Metal Keyboard

DESCRIPTION:
96 keys compact format IP67 dynamic washable vandal proof stainless steel industrial keyboard with fully sealed and ruggedized industrial metal dome PCB with gold-on-gold key switch technology with short stroke with 12 function keys(F1, F2..F10, F11, F12) on the top panel for easy operation,0.45mm with excellent tactile feeling for stable and accurate data input, with integrated numeric keypad, and stainless steel top plate with threaded bolts and water-tight gasket for easy & tightened sealing, with top panel mounting solution.Industrial Backlight (red/blue/white/green) optional. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.



Special Features:

This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access
applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports,
railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM),
Internet public phones etc.


The keyboard can be dynamic washable with water and other liquids, it can work well even with direct water pouring.

The full keyboard can be locked/disabled via FN + Clean combination keys for easy cleaning without needing to take the keyboard away from PC.

Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.

Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.

Waterproof execution according to IP67 protection from top panel, top stainless steel plate with flat keyboard surface for easy cleaning & threaded bolts for easy tightly mounting to enclosure or panel.

An excellent tactile feel with short stroke switches and allow users to achieve stable and accurate data input, with firm tactile perception for comfortable operation

Internet friendly key layout, key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.

Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.

Ease of customizing with multiple languages, to accommodate foreign or custom variants.

Complete electronic modules including controller in close consultation with our customers are available.

PS/2, USB connection plug-and-play with PC via PC existing OS driver, no needing of install separate driver.





Specifications:

MECHANICAL DATA

Key

 96keys, 0.45mm thickness super quality SUS304 brushed stainless steel flat key.

Key top style

 Non-Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available.

Key Size

14.0mm x 14.0mm for normal keys,
14.0mm x 28.0mm for enter key,
14.0mm x 70mm for space bar.

Key travel

0.45mm

Switch life

more than 5 million of operations

Actuation Force

2.0N+/-0.1N for key 14.0mm x 14.0mm (pressure point)

4.0N+/-0.1N for key 14.0mm x 28.0mm (pressure point)

Front Plate

1.5mm thickness super quality brushed stainless steel

Back Plate

3.0mm thickness brushed & oxidized aluminum

Touchpad

sealed and ruggedized tough touchpad

G.W.

1.40KGs

Dimensions

340.0mm x 145.0mm (L x W )



More View:

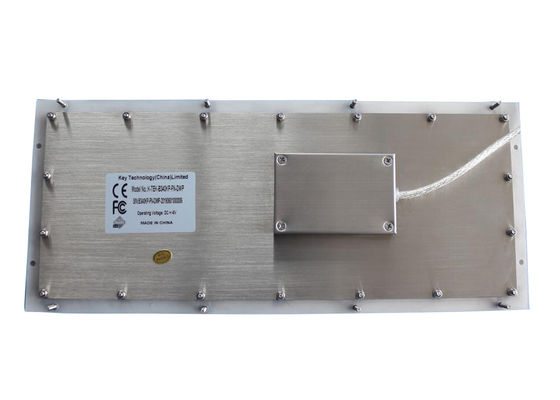

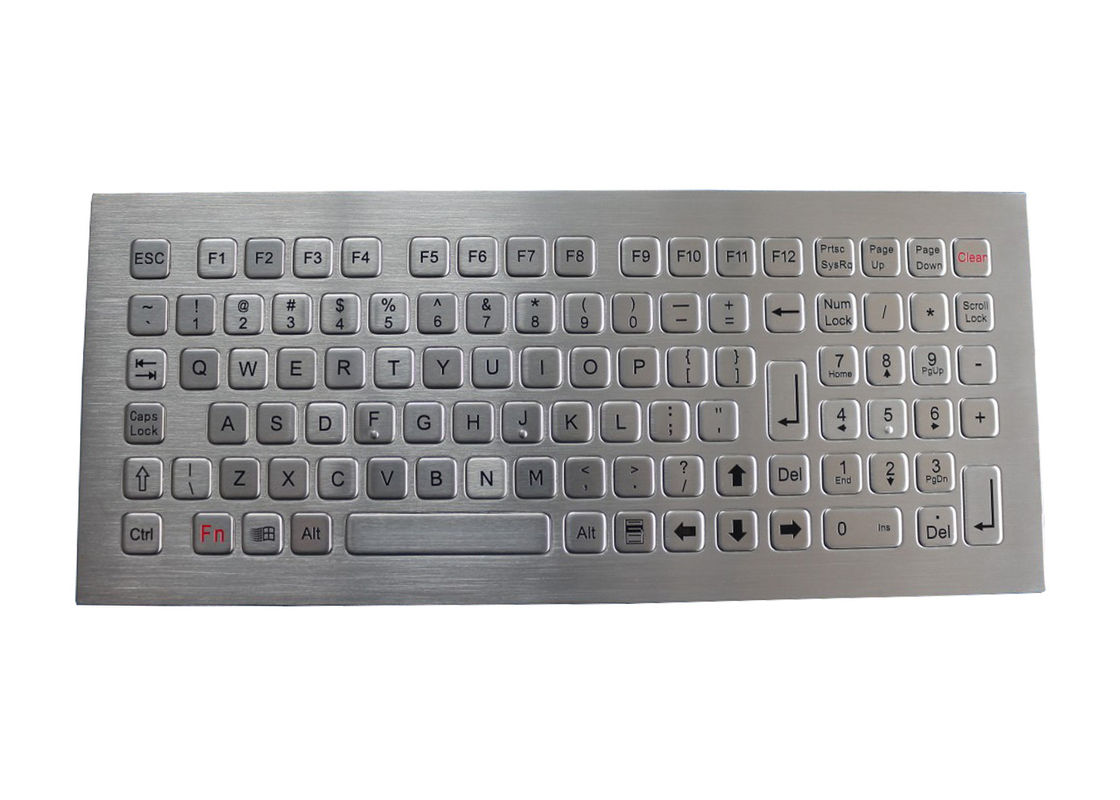

Washable 96 Keys Industrial Metal Keyboard Outdoor With FN Keys 0

Washable 96 Keys Industrial Metal Keyboard Outdoor With FN Keys 1



Direct waterproof:

Washable 96 Keys Industrial Metal Keyboard Outdoor With FN Keys 2



Our factory:

Washable 96 Keys Industrial Metal Keyboard Outdoor With FN Keys 3

Welcome meet us new of 2018:

Washable 96 Keys Industrial Metal Keyboard Outdoor With FN Keys 4

Washable 96 Keys Industrial Metal Keyboard Outdoor With FN Keys 5
