Wide Temperature Silicone Rubber Keyboard IP67 Dynamic With EMC

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  Wide Temperature Silicone Rubber Keyboard IP67 Dynamic With EMC

Product Details:
Place of Origin: Shenzhen,China
Brand Name: IKB-MKB
Certification: CE, FCC, ROHS
Model Number: K-TEK-M312TP-FN-BL-NV-EMC-151B-DT
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: To be quoted
Packaging Details: Each keyboard to one box,several boxes to one carton.
Delivery Time: ASAP Within 2 weeks upon payment confirmed
Payment Terms: Full payment in advance. or 50% deposit in advance, the rest 50% to be paid before delivery.
Supply Ability: 3000pcs/month
Detailed Product Description
Application: Military Material: Silicone Rubber
Keys: 89 Backlight: Yes
Interface: Aviation Plug Or USB2.0 Mounting Housing: Aluminum Housing
High Light:

Wide Temperature Silicone Rubber Keyboard

,

Silicone Rubber Keyboard IP67 Dynamic

,

EMC Rubber Military Keyboard

DIMENSIONS: 312.0mm x 215.1mm x 22.0 ~40.4mm (L x W x H)

Special Features:

1: 89 keys IP67 dynamic ruggedized silicone rubber military keyboard with sealed and tough touch pad for fast and accurate cursor position
2: 12 FN keys (F1, F2...F11, F12) are on top line for easy operation, the overall key layout is compact, with military PCB with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment,
3: FN+CLEAN combination key to lock/disable the whole keyboard for easy cleaning without disconnecting the keyboard from computer. The electronics controller module is shielded and protected by aluminum housing, inclined mountable desk top version with VESA mounting holes on backside, white backlight included (red/green/blue optional).
4: Military level, designed to Meet MIL-STD-461G with EMC and MIL-STD-810F (wide temperature, shock, vibration, fungus, humidity etc.), with strong anti-interface, stability and low radiation performance.



MECHANICAL DATA:

Key

89 keys

Key top style

Protuberant rectangular keys with tactile feeling

Touchpad cover

Composite

X/Y position sensing resolution

40 counts/mm

X/Y position reporting

Relative

Output

Aviation plug or USB2.0

Tracking speed

Maximum 1,016 m/sec

Power supply voltage

5 VDC ± 0.25V

Current rating (active mode)

50mA (non-backlight) , 300mA (with backlight on)

Key Size

12.2mm x 13.3mm for normal keys, 12.0mm x 10.0mm for FN(F1,F2....F12) keys, 22.9mm x 13.3mm for Enter key,
28.9mm x 13.3mm for Shift key, and 101.2mm x 13.3mm for Space bar key
Operating temperature:
-40℃ to +60℃

G.W.

2.0KGs




Meet MIL-STD-461G with EMC (Electric Magnetic Compatibility) etc.:
CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads
CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads
CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads
CS106 Conducted Susceptibility, Transients, Power Leads
CS112 Electrostatic Discharge Susceptibility
CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injectionCS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation
CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads
RE101 25Hz -100kHz Radiated Emissions, Magnetic Field
RE102 10kHz - 18GHz Radiated Emissions, Electric Field
RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field
RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field
MIL-STD-810F (wide temperature, shock, vibration, humidity).

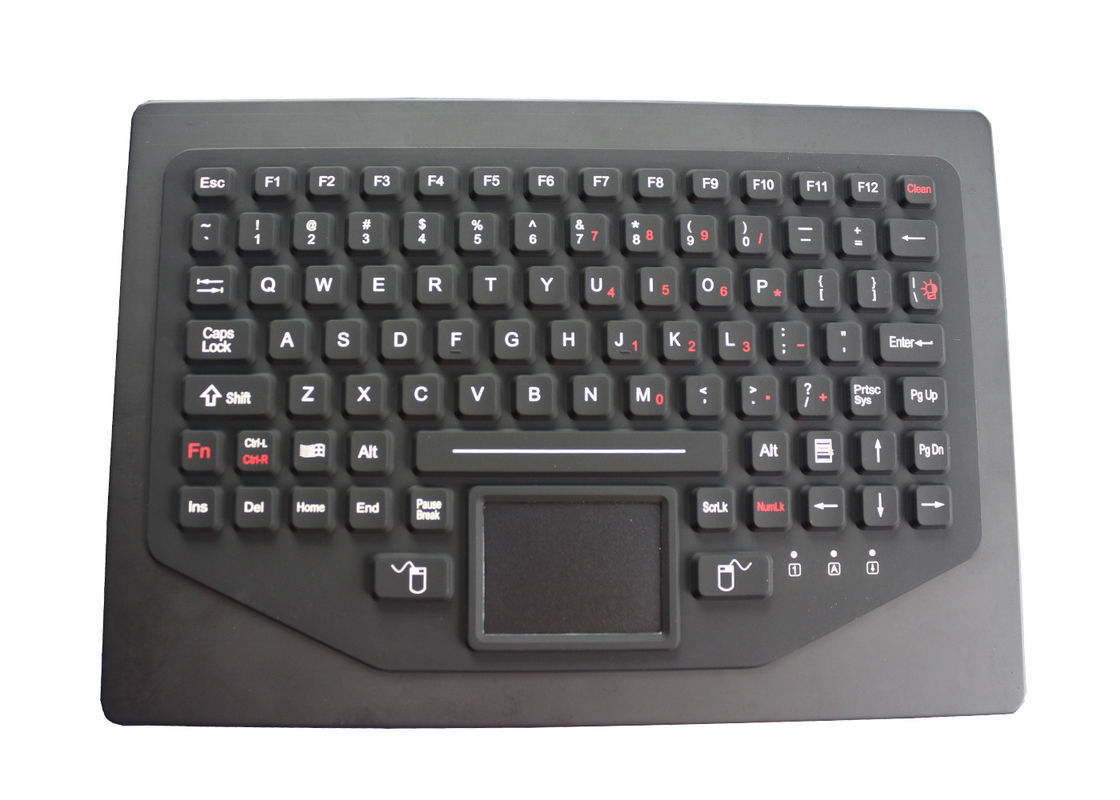

                                                        Front View
Wide Temperature Silicone Rubber Keyboard IP67 Dynamic With EMC 0

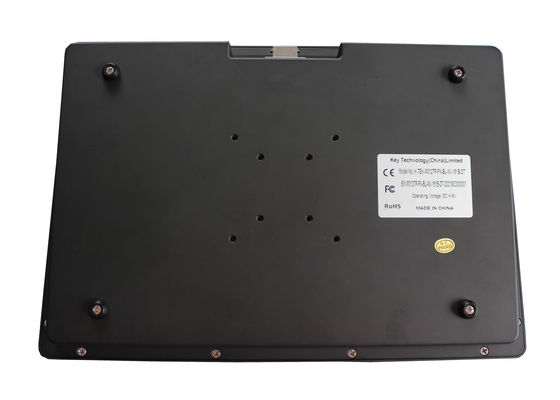

                                                      Back View
Wide Temperature Silicone Rubber Keyboard IP67 Dynamic With EMC 1





 Wide Temperature Silicone Rubber Keyboard IP67 Dynamic With EMC 2


 Wide Temperature Silicone Rubber Keyboard IP67 Dynamic With EMC 3
