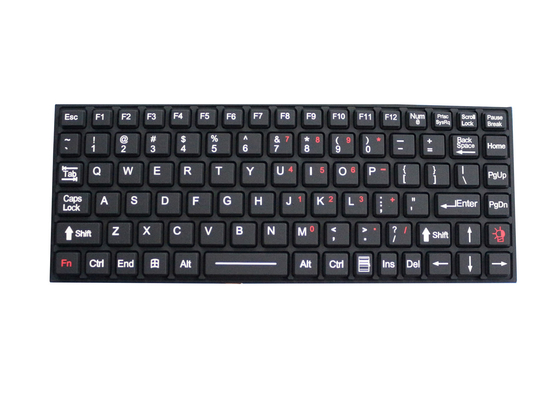

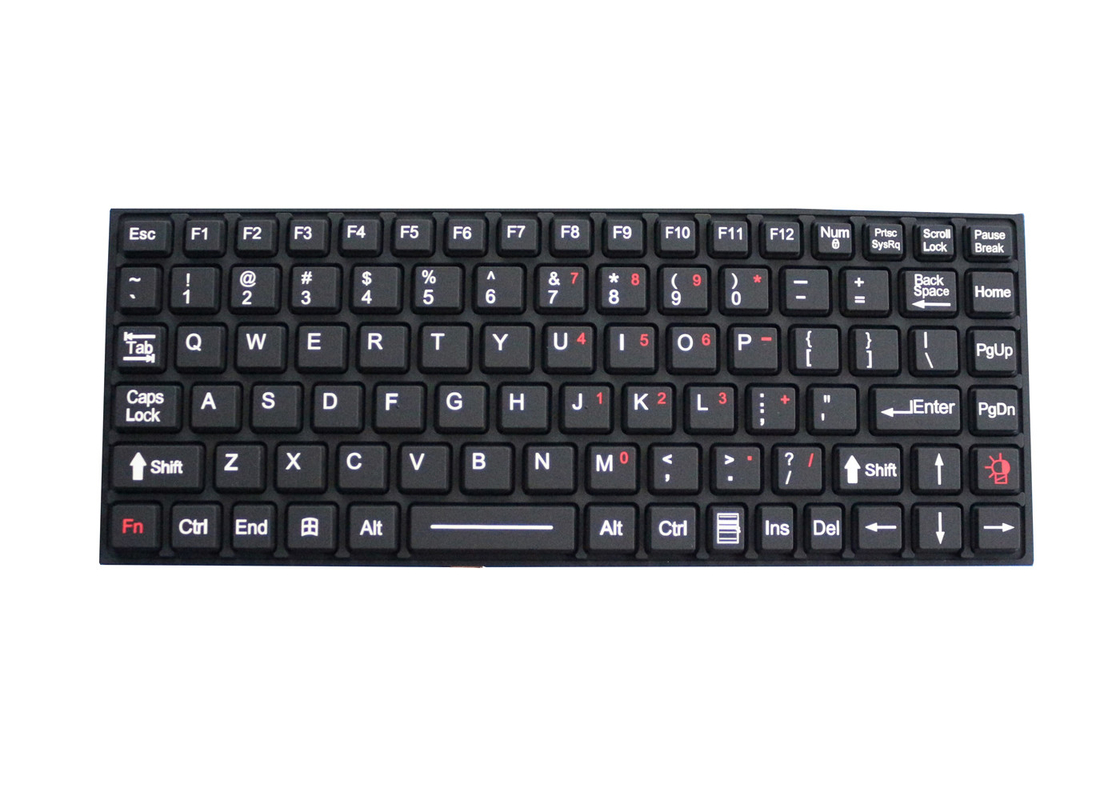

Emc Rubber Silicone Keyboard White Backlight 89 Keys For Ruggedized Computer

DESCRIPTION:

89 keys IP67 sealed & ruggedized silicone rubber military keyboard, 12 function keys on top line for easy operation, military PCB with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under harsh environment, top panel mount solution, adjustable white/red backlight included. With USB interface. Military level, designed to Meet MIL-STD-461G with EMC and MIL-STD-810F (wide temperature, shock, vibration, humidity etc.)

APPLICATIONS:

MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
MILITARY: Army, Navy, Air force
INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses
OTHER INDUSTRIES

MAIN FEATURE:
keyboard with NVIS-compliant adjustable backlighting, while NVIS backlighting makes this keyboard ideal for applications where night vision goggles are necessary. (Red or white backlight optional)
Keyboard provides full-size versatility in a rugged, compact design, rugged construction for reliable functionality
The keyboard lacks the crevices found between the keys of a regular keyboard, which is protected against dust, dirt, grease and corrosive liquids, which means it can withstand directed hose water, disinfectants, environmental contaminants and heavy industrial use.
Special durable-coating for excellent mechanical and chemical resistance
With firm tactile key feel, key travel 1.5mm key travel.
Ease of customizing with multiple languages, to accommodate foreign or custom variants.
USB connection cables that plug directly into computer like keyboard operations.
Key life: 5 millions

MECHANICAL DATA
Key: 89 keys
Key top style: Protuberant rectangular keys with tactile feeling.

Key travel:1.5mm

Actuation Force: Square key: 1.2N+/-0.1N Rectangular key: 2N+/-0.1N
G.W.: 0.3KGs
Dimensions: 284.0mm*109.0mm (L x W )

ELECTRICAL DATA
Supply Voltage: +5V DC +/-5%
Current Rating: appr. 50mA (non-backlight), 300mA (with backlight on)
EMC Standard: EN 55032:2015 EN 55035:2017
Lifespan> 5 years
Switch Contact Material: Carbon-on-Gold key switch technology with military PCB
Interface: USB

Cable lengh: Standard 2.0m, customized length available.
OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

ENVIRONMENTAL ADAPTABILITY
Operating temperature: -40℃ to +60℃
Storage temperature: -45℃ to +70℃

Saline mist: 96h, IEC60512-6

Damp heat test at +40℃: 21 days, IEC 60512-6

Dry heat test at +85℃: 10 days, IEC 60512-6
Humidity: 3%-95%
Atmospheric pressure: 60-106Kpa

RELIABILITY
RoHS , CE, FCC, ESD, EMC
Protection Level: IP67
Key Lifespan >5 million actuations
MTBF >20000H
MTTR <30min
