Polymer Keys Military Marine Keyboard Aluminum Alloy Tactile Feeling

Polymer Keys Military Marine Keyboard Aluminum Alloy Tactile Feeling
Polymer Keys Military Marine Keyboard Aluminum Alloy Tactile Feeling

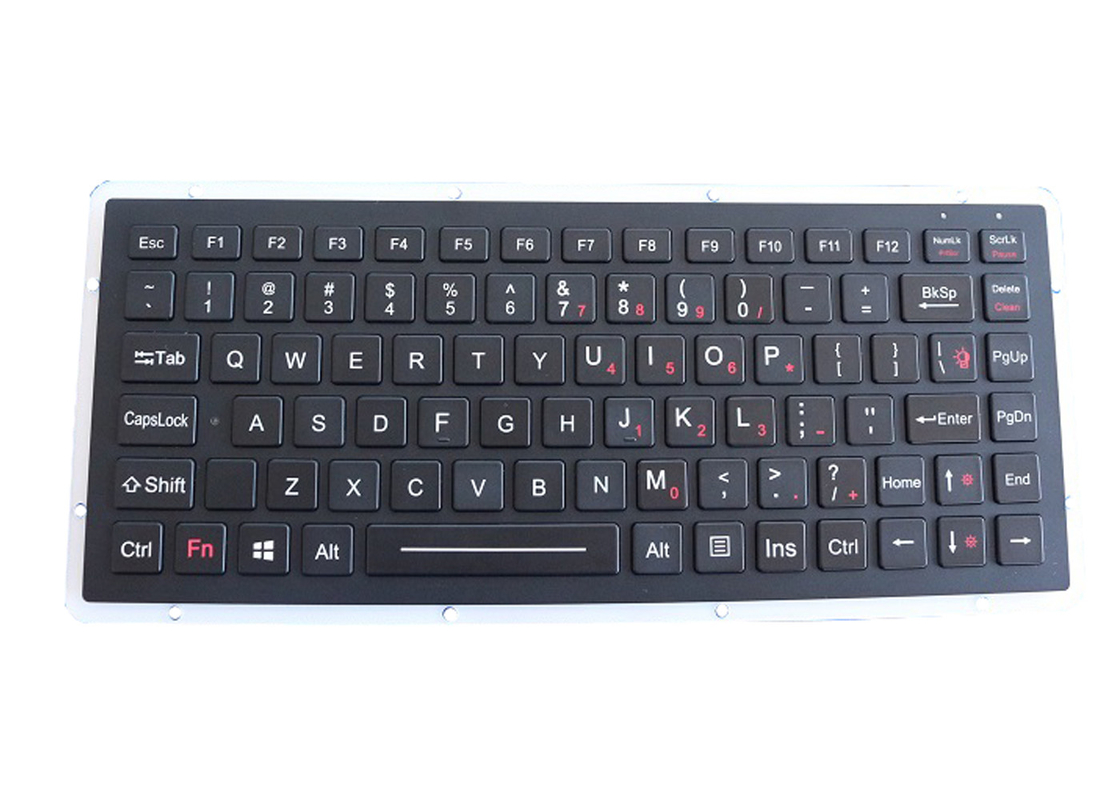

Large Image :  Polymer Keys Military Marine Keyboard Aluminum Alloy Tactile Feeling

Product Details:
Place of Origin: Shenzhen, China
Brand Name: IKB-MKB
Certification: CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Model Number: K-TEK-M270-FN-BL-NV-151B-DWP
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Each keyboard to one box, several boxes to one carton.
Delivery Time: ASAP Within 2 weeks upon payment confirmed
Payment Terms: Full payment in advance, Western Union, T/T, Paypal
Supply Ability: 3000psc/month
Detailed Product Description
Keycap: Durable Polymer Keys Material: Aluminum Alloy
Interface: USB Backlit: White
Name: Military Marine Keyboard Feature: Tactile Feeling
High Light:

Polymer keys Military Marine Keyboard

,

Aluminum Alloy Military Marine Keyboard

,

Tactile Feeling Rugged Military Keyboard

DESCRIPTION:
86 keys IP67 dynamic waterproof vandal proof aluminum alloy ruggedized military keyboard with durable polymer keys. The high quality ruggedized aluminum alloy panel is processed by CNC. With 12 function keys(F1, F2, ... F12) on the top line of keyboard. Sealed and ruggedized PCB with carbon-on-gold key switch technology with stroke 1.0mm, which is extremely good tactile feeling for fast and accurate data input without any noise. one complete silicone rubber along the top panel for easy mounting & sealing tightly with cabinet, Rear panel with countersunk hole for easy mounting. Adjustable backlight included ( White or Red etc). FN + Clean combination keys for easy cleaning without taking the keyboard away from PC and avoid mis-operation or mistyping.The whole keyboard can meet wide temperature(Operating temperature: -40℃ to +80℃).High quality durable black titanium spray-paint on the aluminum alloy panel. The whole keyboard can meet MIL-STD-461G with EMC (Electro Magnetic Compatibility) & MIL- STD-810F (wide temperature, shock, vibration, humidity etc .) , which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, salt amist etc. USB cable with Wide temperature and length is 1.5M.

APPLICATION:
This keyboard is ideal for below wide applications:
MEDICAL: Lab, hospital, clinic, dental, such as carts, diagnostic equipment, operation rooms, dialysis centers etc;
MATERIAL HANDLING: Mobile keyboard, data entry, assembly line etc
MILITARY: Army, Navy, Air force
INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, Warehouses, marine console.

MAIN FEATURE
The keyboard can be dynamic washable with water and other liquids, it can work well even under direct water
pouring on the keyboard.

The full keyboard can be locked/disabled via FN + Clean combination keys for easy cleaning without taking
keyboard away from PC, and avoid mis-operation or typing mistake.

Waterproof execution according to IP67 protection from top panel and other sides without including the bottom
side, sealing gasket with mounting holes or easy tightly mounting to enclosure or panel.

Any keyboard layouts are available, key-tops are laser-etched in legends and characters for easy readability, long
life to prevent lettering rub-off.

Polymer keys are protected against twisting and levering which can not be dislodged from front, or defaced
removing key covers.

Ease of customizing with multiple languages, to accommodate foreign or custom variants.

Complete electronic modules including controller in close consultation with our customers are available.

USB connection plug-and-play with PC via PC existing OS driver, no need to install separate driver.


MECHANICAL DATA:

Key top style: Protuberant rectangular keys, laser engraved & etched legends & raised Braille on keys are available
Keys
86 keys, durable and robust polymer keys
Key travel: 1.0mm
Actuation Force: 1.8N+/-0.1N for key 13.6mm x 13.6mm (pressure point ), 2.5 N+/-0.10N for key 13.6mm x 31.6mm (pressure point)
Switch life: More than 5 million of operations.
Dimensions
270.0mm x 110.0mm ( L XW )
Interface
USB
Power supply voltage: 5VDC ± 0.25V
Current rating(active mode) : 300mA
EMC Standard
EN 55032:2015, EN 55035:2017
OS: Windows, Linux, Unix, Mac OSX, Vxworks, Android



ENVIRONMENTAL ADAPTABILITY
Operating temperature: -40℃ to +80℃
Storage temperature: -50℃ to +90℃
Operating RH: 3%-95%
Atmospheric pressure: 60-106Kpa.
Saline mist: 96 hours, IEC 60512-6
Damp heat test at + 40oC: 21 days, IEC 60512-6
Dry heat test at + 85oC: 10 days, IEC 60512-6

RELIABILITY
RoHS Compliant, CE and FCC, ESD
Protection Level: IP67 (front panel)
Vandal resistant IK08
Key Lifespan >5 million actuation
MTBF >20000H
MTTR <30min

Polymer Keys Military Marine Keyboard Aluminum Alloy Tactile Feeling 0

Polymer Keys Military Marine Keyboard Aluminum Alloy Tactile Feeling 1



 Polymer Keys Military Marine Keyboard Aluminum Alloy Tactile Feeling 2
