Vandal Proof Marine Keyboard Dynamic Washable With Backlight IP67

Vandal Proof Marine Keyboard Dynamic Washable With Backlight IP67
Vandal Proof Marine Keyboard Dynamic Washable With Backlight IP67 Vandal Proof Marine Keyboard Dynamic Washable With Backlight IP67

Large Image :  Vandal Proof Marine Keyboard Dynamic Washable With Backlight IP67

Product Details:
Place of Origin: Shenzhen, China
Brand Name: IKB-MKB
Certification: CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Model Number: K-TEK-M334KP-FN-BL-ML-DWP
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: to be quoted
Packaging Details: Each keyboard to one box, several boxes to one carton.
Delivery Time: ASAP Within 2 weeks upon payment confirmed
Payment Terms: Full payment in advance, Western Union, T/T, Paypal
Supply Ability: 3000psc/month

Vandal Proof Marine Keyboard Dynamic Washable With Backlight IP67

Description
Keyboard Colour: Black IP Rate: IP67
Keys: 101 Keys Dimensions: 334.0mm X 118.0mm
Interface: USB Or PS/2 Operating Temperature: -40oC To +60oC
High Light:

Vandal Proof Marine Keyboard

,

IP67 Backlight Marine Keyboard

,

Dynamic Washable Usb Numeric Keypads

Vandal Proof Marine Keyboard Dynamic Washable With Backlight IP67



DESCRIPTION: 101 keys IP67 dynamic water proof vandal proof ruggedized industrial keyboard with wide temperature, with durable polymer keys and 12 function keys F1, F2, ... F12 on the top line of keyboard. The high quality ruggedized aluminum alloy top panel is processed by CNC, industrial sealed and ruggedized PCB with carbon-on-gold key switch technology with stroke 1.0mm with extremely good tactile feeling for fast and accurate data input without any noise, high quality durable black titanium spray-paint on the aluminum alloy panel , one complete silicone rubber along the top panel for easy mounting & sealing tightly with cabinet, front panel with countersunk hole for easy top panel mounting and
maintenance. Adjustable backlight included ( White or Red etc). FN + Clean combination keys for easy cleaning without taking the keyboard away from PC, and avoid mis-operation or mis-typing. USB or matrix output optional.
Dimensions: 334.0mm x 118.0mm (front panel)



Main Features:

 1.



The keyboard can be dynamic washable with water and other liquids, it can work well even under direct water
pouring on the keyboard



 2.



The full keyboard can be locked/disabled via FN + Clean combination keys for easy cleaning without taking keyboard away from PC, and avoid mis-operation or typing mistake

 3.



Waterproof execution according to IP67 protection from top panel and other sides without including the bottom side, top stainless steel plate and sealing gasket with mounting holes or easy tightly mounting to enclosure or panel



 4.



An excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data input
without any noise. With firm tactile perception for comfortable operation



 5.



Any keyboard layouts are available, key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off



 6.



Polymer keys are protected against twisting and levering which can not be dislodged from front, or defaced
removing key covers.



 7.



Ease of customizing with multiple languages, to accommodate foreign or custom variants.



 8.

Complete electronic modules including controller in close consultation with our customers are available







Mechanical Data:

ELECTRICAL DATA
  • Supply Voltage: +5V DC +/-5%
  • Current Rating: appr. 300mA
  • EMC Standard: EN 55032:2015, EN 55035:2017
  • Lifespan > 5 years
  • Switch Contact Material: Carbon-on-Gold key switch technology PCB.
  • Interface: PS2, USB available,
  • OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)
ENVIRONMENTAL ADAPTABILITY
  • Operating temperature: -40℃ to +60℃
  • Storage temperature: -45℃ to +70℃
  • Operating RH: 30-95%
  • Atmospheric pressure: 60-106Kpa.
  • Saline mist: 96 hours, IEC 60512-6
  • Damp heat test at + 40oC: 21 days, IEC 60512-6
  • Dry heat test at + 85oC: 10 days, IEC 60512-6
RELIABILITY
  • RoHS Compliant, CE and FCC, ESD
  • Protection Level: IP67
  • Vandal resistant IK08
  • Key Lifespan >5 million actuation.
  • MTBF >20000
  • MTTR <30min



Product Picture:

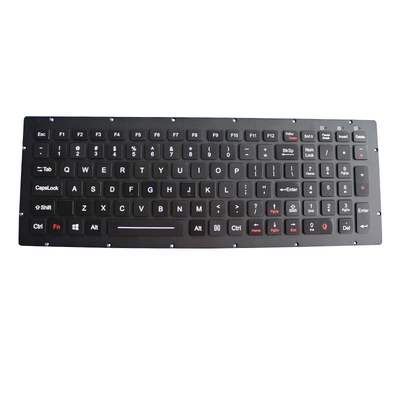

Vandal Proof Marine Keyboard Dynamic Washable With Backlight IP67 0

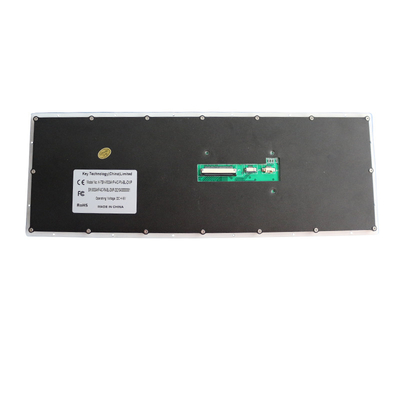

Vandal Proof Marine Keyboard Dynamic Washable With Backlight IP67 1
