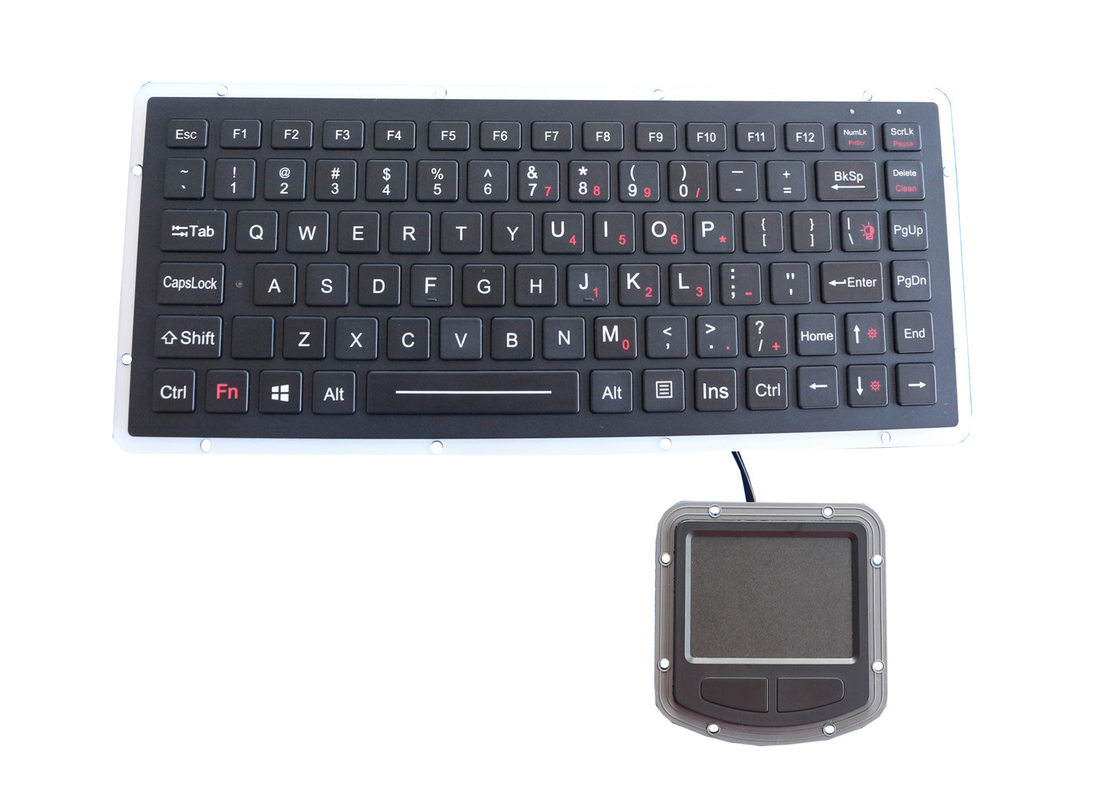

Aluminum Alloy Military Keyboard IP67 USB With 400DPI Touchpad

Aluminum Alloy Military Keyboard IP67 USB With 400DPI Touchpad
Aluminum Alloy Military Keyboard IP67 USB With 400DPI Touchpad

Large Image :  Aluminum Alloy Military Keyboard IP67 USB With 400DPI Touchpad

Product Details:
Place of Origin: Shenzhen, China
Brand Name: IKB-MKB
Certification: CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Model Number: K-TEK-M270-FN-BL-NV-151B-DWP+M73TP
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Each keyboard to one box, several boxes to one carton.
Delivery Time: ASAP Within 2 weeks upon payment confirmed
Payment Terms: Full payment in advance, Western Union, T/T, Paypal
Supply Ability: 3000psc/month

Aluminum Alloy Military Keyboard IP67 USB With 400DPI Touchpad

Description
Application: Military Connection: PS2, USB Available
Material: Aluminum Alloy Key: 86 Keys
Operating Temperature: -40℃ To +80℃ Name: EMC Metal Keyboard
High Light:

Aluminum Alloy Military Keyboard

,

400DPI Touchpad Military Keyboard

,

IP67 USB EMC Metal Keyboard

DIMENSIONS: Keyboard: 270.0mm*110.0mm (L x W )    Touchpad: 73.0mm * 76.0mm (L x W)



DESCRIPTION:

86 keys IP67 dynamic waterproof vandal proof aluminum alloy ruggedized military keyboard with durable polymer keys. The high quality ruggedized aluminum alloy panel is processed by CNC. With 12 function keys(F1, F2, ... F12) on the top line of keyboard. Sealed and ruggedized PCB with carbon-on-gold key switch technology with stroke 1.0mm, which is extremely good tactile feeling for fast and accurate data input without any noise. one complete silicone rubber along the top panel for easy mounting & sealing tightly with cabinet, Rear panel with countersunk hole for easy mounting. Adjustable backlight included ( White or Red etc). FN + Clean combination keys for easy cleaning without taking the keyboard away from PC and avoid mis-operation or mistyping.The whole keyboard can meet wide temperature(Operating temperature: -40℃ to +80℃).High quality durable black titanium spray-paint on the aluminum alloy panel. The whole keyboard can meet MIL-STD-461G with EMC (Electro Magnetic Compatibility) & MIL- STD-810F (wide temperature, shock, vibration, humidity etc .) ,Touchpad with wide temperature connect to the keyboard, which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, salt amist etc. USB cable with Wide temperature and length is 1.5M.

APPLICATIONS:
This keyboard is ideal for below wide applications:
MEDICAL: Lab, hospital, clinic, dental, such as carts, diagnostic equipment, operation rooms, dialysis centers etc;
MATERIAL HANDLING: Mobile keyboard, data entry, assembly line etc
MILITARY: Army, Navy, Air force
INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, Warehouses, marine console.


ENVIRONMENTAL ADAPTABILITY

Key 86 keys
Key top style
Protuberant rectangular keys, laser engraved & etched legends & raised Braille on keys are available
Dimensions
Keyboard: 270.0mm*110.0mm (L x W ) Touchpad: 73.0mm * 76.0mm (L x W)
X/Y position reporting Relative
Output
USB
Tracking speed Maximum 1,016 m/sec
Power supply voltage 5 VDC ± 0.25V
Current rating (active mode)
Lifespan > 5 years
Cable Length Standard 0.8m / 1.0m



MECHANICAL DATA:

Operating temperature
-40℃ to +80℃
Storage temperature
-50℃ to +90℃
Saline mist:
96h, IEC60512-6
Damp heat test at +40℃
21 days, IEC 60512-6
Dry heat test at +85℃:
10 days, IEC 60512-6
Humidity
3%-95%
Atmospheric pressure
60-106Kpa

RoHS , CE, FCC, ESD, EMC
Protection Level
IP67
Key Lifespan
>5 million actuations
MTBF
>20000H
MTTR
<30min
