Product Details:
Place of Origin: Shenzhen, China
Brand Name: IKB-MKB
Certification: CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Model Number: K-TEK-A382TP-DHP-FN-DT-DWP
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: To Be Quoted
Packaging Details: Each keyboard to one box, several boxes to one carton.
Delivery Time: ASAP Within 2-3 weeks upon payment confirmed
Payment Terms: Full payment in advance, Western Union, T/T, Paypal
Supply Ability: 3000psc/month

IP68 Vandal Proof Stainless Steel Keyboard 83 Keys For Mining Industry

Description
Actuator/keys: 83 Keys, Super Quality SUS304 Brushed Stainless Steel Key Travel: 1.50mm Long Stroke
Dimentions: 382.0mm X 145.0mm X 21.5mm (L X W X H) USB /PS2: Available
Protect Level: IP68
High Light:

Vandal Proof stainless steel keyboard

,

83 Keys ruggedized stainless steel keyboard

,

ruggedized Desktop Industrial Keyboard

IP68 Vandal Proof stainless steel keyboard For Mining Industry

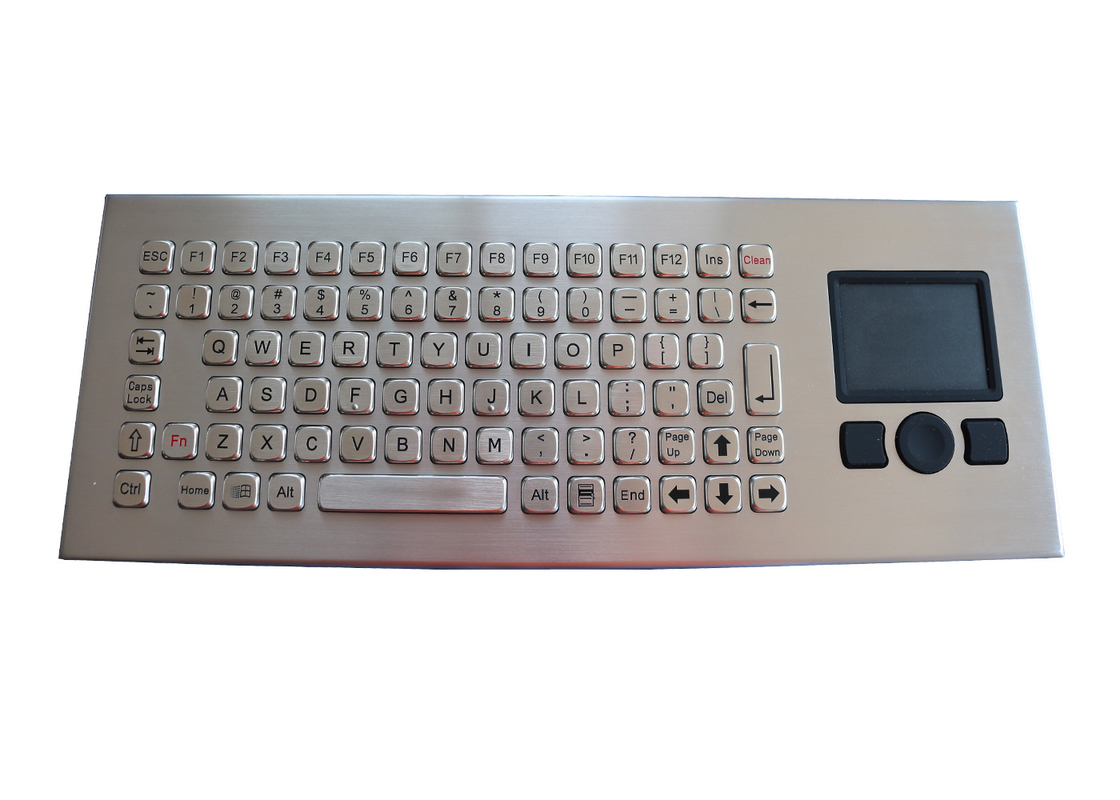

DESCRIPTION: 83 keys compact format IP68 dynamic washable vandal proof stainless steel industrial keyboard, with IP67 dynamic sealed & ruggedized tough antimicrobial silicone rubber hula pointer mouse for fast and accurate cursor position with two mouse buttons (1.20mm long stroke), integrated with IP65 dynamic sealed & ruggedized tough touchpad. with scroll function (optional) for fast and accurate cursor position, functional keys F1, F2, F3…F10, F11, F12 are on the top line for easy operation,FN+CLEAN combination key to lock/disable the whole keyboard for easy cleaning without disconnecting the keyboard from computer, industrial PCB with carbon-on-gold key switch technology with long stroke 1.50mm with excellent tactile feeling for fast and accurate data input, movable stand alone DESK TOP VERSION,which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.



ItemsSpecifications
MaterialStainless Steel
Electrical DataSupply Voltage: +5V DC +/-5%
Current Rating: appr. 30mA
EMC Standard: EN 55032:2015 EN 55035:2017
Lifespan > 5 years
Switch Contact Material: Carbon-on-Gold key switch technology PCB.
Interface: PS2, USB available.
Environmental AdaptabilityOperating temperature: -40℃ to +60℃
Storage temperature: -45℃ to +70℃
Operating RH: 30-90%
Atmospheric pressure: 60-106Kpa.
Saline mist: 96 hours, IEC 60512-6
Damp heat test at + 40oC: 21 days, IEC 60512-6
Dry heat test at + 85oC: 10 days, IEC 60512-6
Mechanical DataActuator/keys: 83 keys, super quality SUS304 brushed stainless steel
Key top style: Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys
are available
Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar.
Key travel: 1.5mm long stroke.
Actuation Force: 1.2N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 2N+/-0.1Nfor key 14.0mm x 28.0mm (pressure point)
Switch life: more than 5 million of operations.
Stainless Steel Housing: super quality brushed stainless steel.
Compatible Operation SystemOS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ReliabilityRoHS Compliant, CE and FCC, ESD
Protection Level: IP68
Vandal resistant IK09
Key Lifespan >5 million actuations
MTBF >20000H
MTTR <30min
Dimension382.0mm x 145.0mm x 21.5mm (L x W x H)
