Product Details:
|
| Name: | Rugged Keyboard | Backlight: | White Or Red |
|---|---|---|---|
| Interface: | USB/matrix Available | Protection Level: | IP67 |
| Vandal Resistant: | IK08 | Toupad: | Optional |
| High Light: | Custom Ruggedized Keyboard,IK08 Ruggedized Keyboard,Vandal Proof Waterproof Backlight Keyboard |
||
Ruggedized Custom Keyboard Vandal Proof Waterproof Backlight Keyboard
DESCRIPTION:
Application:
| MECHANICAL DATA: | |
| Actuator/keys: |
101 keys, durable and robust polymer keys
|
| Key top style: | Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available |
|
Key travel
|
1.0mm
|
| Actuation Force: |
1.80 N+/-0.1N for key 13.6mm x 13.6mm (pressure point ), 2.5 N+/-0.10N for key 13.6mm x
31.6mm (pressure point)
|
| Switch life: | more than 5 million of operations. |
| Plate: |
High quality ruggedized aluminum alloy top panel is processed by CNC
|
| G.W.: | 0.5KGs |
| Dimensions: |
334.0mm x 118.0mm (front panel)
|
| ELECTRICAL DATA : | |
| Supply Voltage: | +5V DC +/-5% |
| Current Rating: | appr. 300mA |
| EMC Standard: | EN 55032:2015, EN 55035:2017 |
| Lifespan | > 5 years |
| Switch Contact Material: | Carbon-on-Gold key switch technology industrial PCB |
| Interface: |
USB/matrix available
|
| OS: | All Windows, Linux, Unix, Mac OSX, Android |
| RUGGEDIZED KEYBOARD RELIABILITY: | |
| RoHS Compliant, CE and FCC, ESD | |
| Protection Level: | IP67(front panel) |
| Vandal resistant | IK08 |
| Key Lifespan | >5 million actuations |
| MTBF |
>20000H |
| MTTR | <30min |
| ENVIRONMENTAL ADAPTABILITY : | |
| Operating Temperature: | -40oC to +60oC |
| Storage Temperature: | -45oC to +70oC |
| Operating RH: | 3-95% |
| Atmospheric Pressure: | 60-106Kpa |
| Saline mist: | 96 hours, IEC 60512-6 |
| Damp heat test at+40oC: | 21 days, IEC 60512-6 |
| Dry heat test at + 85oC: | 10 days, IEC 60512-6 |

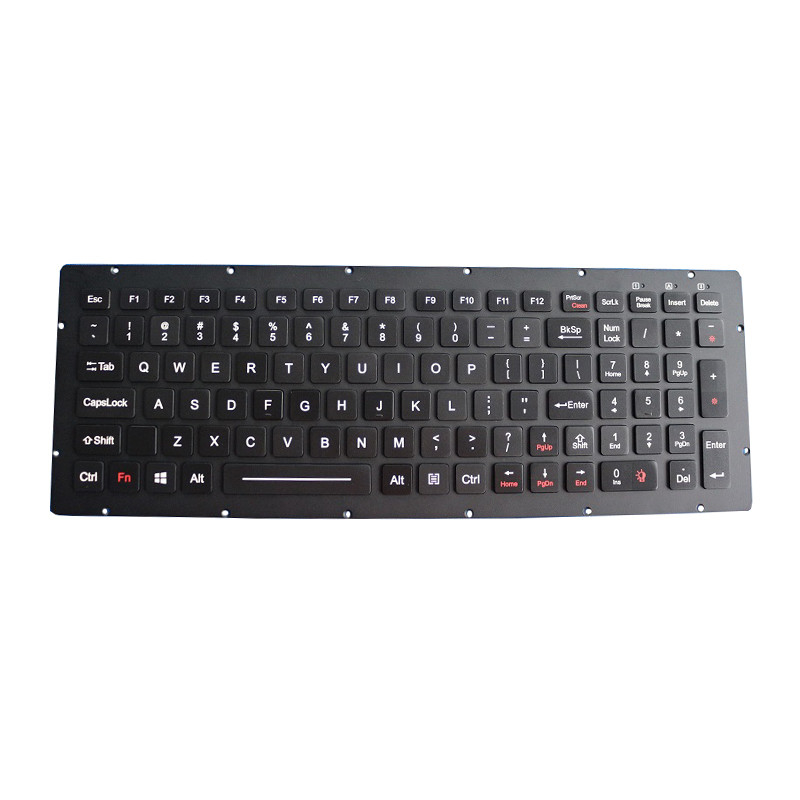

Actual Photos:
Keyboard without backlight

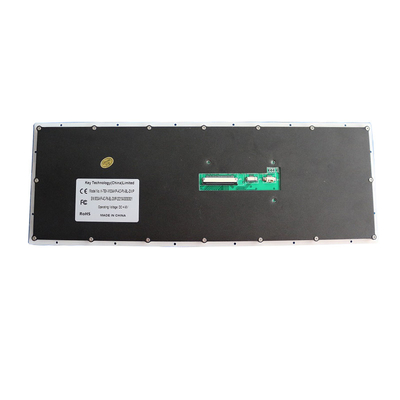

Back View
Q: Are you trading company or manufacturer ?
A: We are a professional manufacturer for industry/military/medical/vehicle keyboards.
Q: How long is your delivery time?
A: Generally it is 1-2 Weeks after payment is received. If larger quantity, delivery time would be 3-5 weeks.
Q: Do you provide samples ?
A: Yes, we could offer the sample of one quantity first before large quantity orders.
Q: What is your terms of payment ?
A: 100% payment via Paypal T/T, Western Union or Alibaba Trade Assurance.
If you have another question, pls feel free to contact us.
