Product Details:
|
Material: | Silicone Rubber | Backlight: | White |
---|---|---|---|
Mounting: | Rear Panel Mounted Solution | Interface: | USB |
Protection Level: | IP67 | Name: | Military Keyboard |
High Light: | military emc keyboard,backlight emc keyboard,membrane emc keyboard |
Military EMC Keyboard With Touchpad Backlight Membrane Key Switch Technology
DESCRIPTION:
Application:
MILITARY KEYBOARD MECHANICAL DATA: | |
Actuator/keys: | 88 keys |
Key technology:
|
Protuberant rectangular keys with tactile feeling.
|
Touch pad
|
|
Lifespan
|
over 5 millions actuation
|
Mutual capacitance sensing:
|
|
X/Y axis location detection resolution
|
40 Counts /mm
|
X/Y position report:
|
relative
|
Mouse tracking speed:
|
> 1.016 m/s
|
Supply voltage:
|
5V ± 0.25V
|
Rated current
|
17 mah
|
Key travel :
|
1.2mm
|
Dimensions: |
315.0mm x 108.0mm (L x W)
|
ELECTRICAL DATA : | |
Supply Voltage: | +5V DC +/-5% |
Current Rating: |
50mA (non-backlight) , 250mA (with backlight on)
|
Lifespan | > 5 years |
Switch Contact Material: | industrial PCB with membrane key switch technology |
Interface: | USB |
Cable length:
|
Standard 0.8m, customized length available.
|
OS: |
All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)
|
RELIABILITY: | |
RoHS Compliant, CE and FCC, ESD | |
Protection Level: | IP68 |
Key Lifespan | >5 million actuations |
MTBF |
>20000H |
MTTR | <30min |
ENVIRONMENTAL ADAPTABILITY : | |
Operating Temperature: | -30oC to +60oC |
Storage Temperature: | -35oC to +65oC |
Operating RH: | 100% |
Atmospheric Pressure: | 60-106Kpa |
Saline mist: | 96 hours, IEC 60512-6 |
Damp heat test at +40oC: | 21 days, IEC 60512-6 |
Dry heat test at + 85oC: | 10 days, IEC 60512-6 |

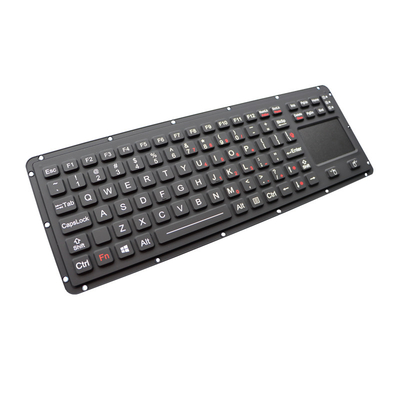

Actual Photos:

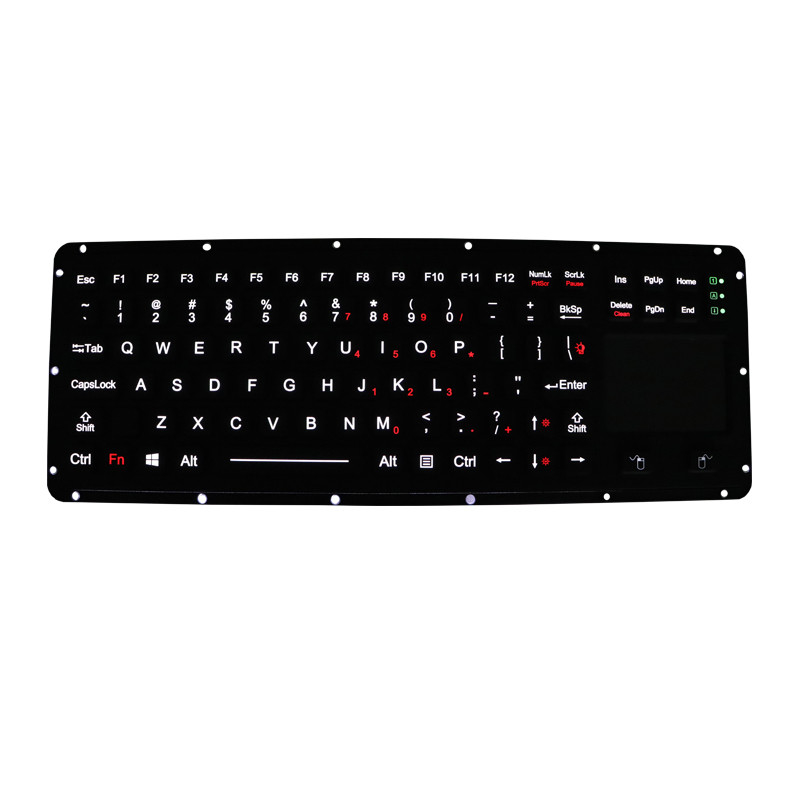

Keyboard with backlight

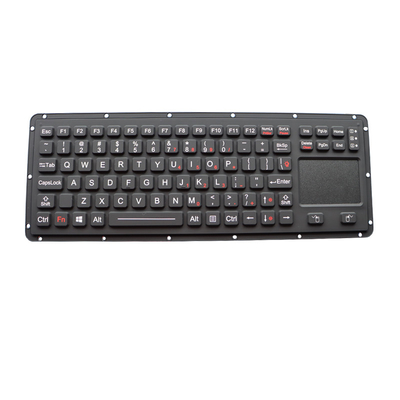

Back View
