Product Details:
|
| Application: | Military | Backlit Color: | White |
|---|---|---|---|
| USB: | Yes, PS2 Optional | Material: | Polymer |
| Mouse: | Touchpad Optional | Name: | Military Chiclet Keyboard |
| High Light: | Dynamic Waterproof Compact Chiclet Keyboard,101 Keys Compact Chiclet Keyboard,military Rugged Keyboard |
||
101 Keys IP65 Dynamic Waterproof Rugged Chiclet Keyboard
DESCRIPTION: 101 keys IP65 dynamic water proof vandal proof rugged chiclet keyboard with durable polymer keys, with 12 function keys F1, F2, ... F12, and individual numeric keypad on the right part, the whole keyboard is made of CNC aluminum alloy front plate + PC keycaps + carbon contact as well as integrated military grade PCB, carbon-on-gold key switch technology with 1.20mm key travel with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under harsh environment, rear panel mounted with mounting holes, adjustable white backlight included. FN + Clean combination keys for easy cleaning without taking the keyboard away from PC, and avoid mis-operation or mis-typing. Designed to meets MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, rain, dust, fungus, solar radiation etc.), and MIL-STD-461G-EMC-EMI-EMS-ESD (optional), as well as military standards: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.).
Dimensions: 327.0mm x 111.0mm (L X W)
| MECHANICAL DATA | |
| Actuator/keys | 101 keys |
| Key top style | Protuberant rectangular polymer keys |
| Key Switch | PC keycap and carbon-on-gold rubber key switch |
| Key size | 14.0mm x 10.0mm for FN keys, 14.0mm x 14.0mm for normal keys |
| Key travel | 1.20mm±0.10mm |
| Actuation Force |
1.0N±0.2N for key 14.0mm x 14.0mm (pressure point ),1.5N±0.2N for key 21.8mm x 14.0mm (pressure point) |
| Switch life | more than 5 million of operations |
| G.W. | ≈1.0KGs |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 30mA for keyboard without backlight. 300mA for keyboard with backlight on. |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Interface | PS2, USB available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -40℃ to +75℃ |
| Storage temperature | -45℃ to +85℃ |
| Operating RH | 100% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
| RoHS Compliant, CE and FCC, ESD, MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.), MIL-STD-461G-EMC-EMI-EMS-ESD optional | |
| Protection Level | IP65 dynamic (front panel) |
| Vandal resistant | IK09 |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |

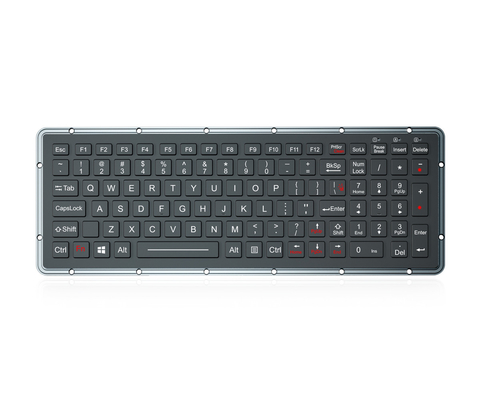

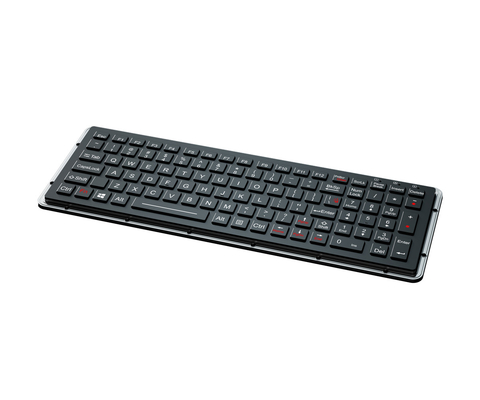

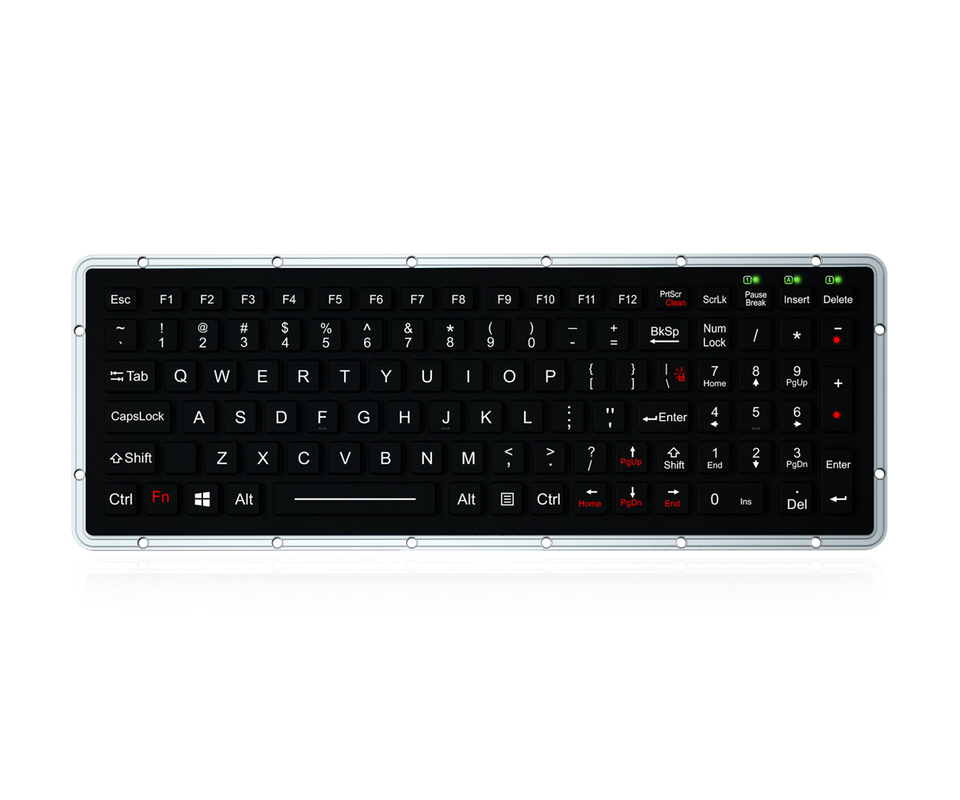

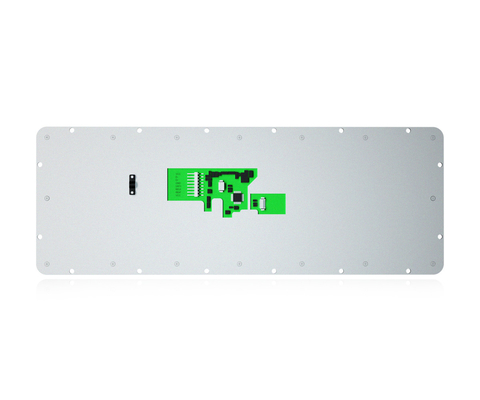

Actual pictures:
